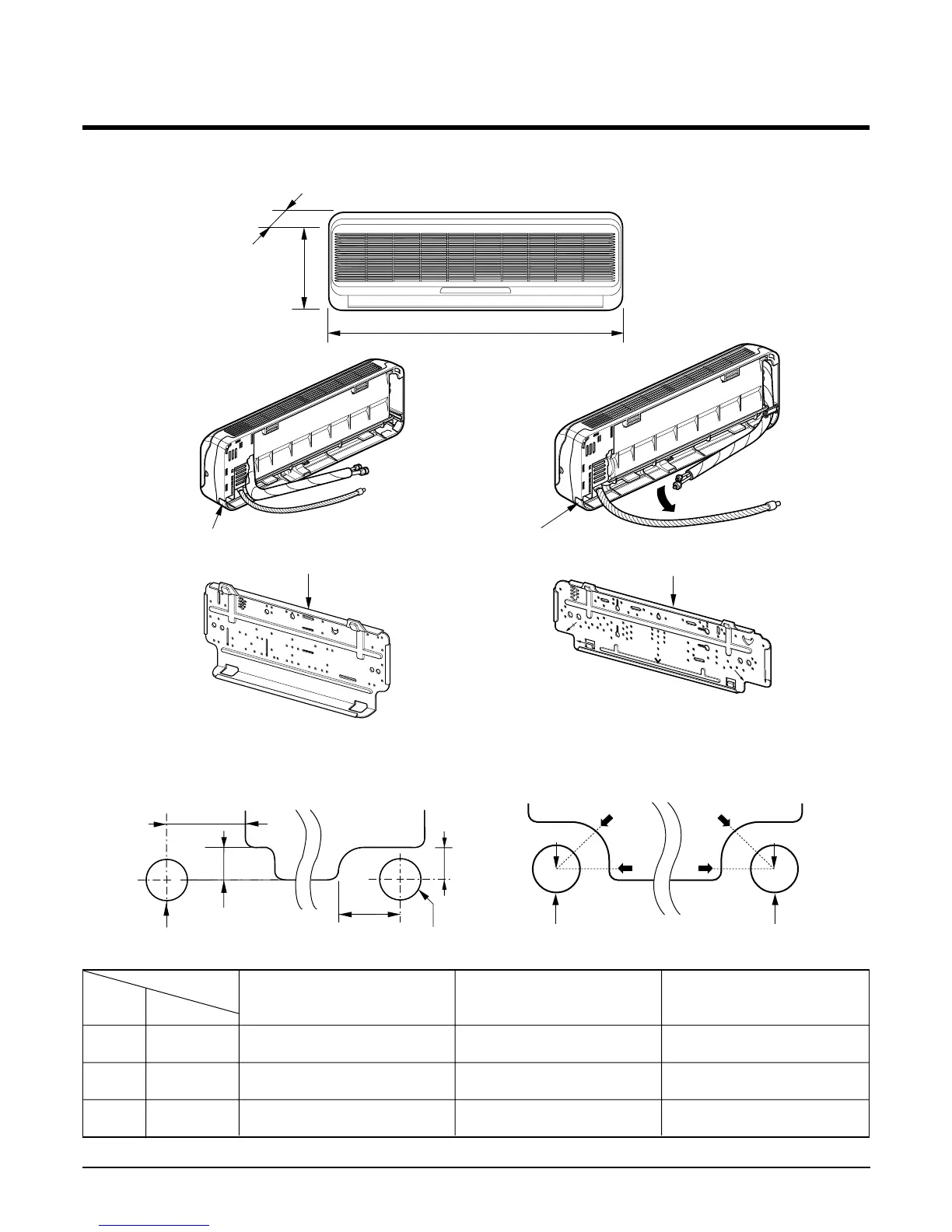

Dimensions
(1) Indoor Unit
Tubing hole cover
D
H
W
Installation plate
Tubing hole cover
Installation plate
Right rear piping
Left rear piping
ø70mm
ø70mm
50mm
20mm
20mm
80mm
ø70mm
A
A
A
A
Center
Right rear pipingLeft rear piping
Center
ø70mm
MODEL
DIM Unit
W mm 802 804 900
H mm 262 245 280
D mm 165 153 178
LS-J0760CL/HL
LS-J0960CL/HL
LS-E0960CL/HL
12K Btu Series
( 7K, 9K, 12K )
( 7K, 9K )
( 12K )
( 7K, 9K )
( 12K )
LS-J0760CL/HL
LS-J0960CL/HL
LS-E0960CL/HL
LS-F1260CL/HL
