OUTDOOR UNIT CORNER WEIGHT AND
CENTER OF GRAVITY DIMENSIONS
d
e
a
b
c
A
D
B
C

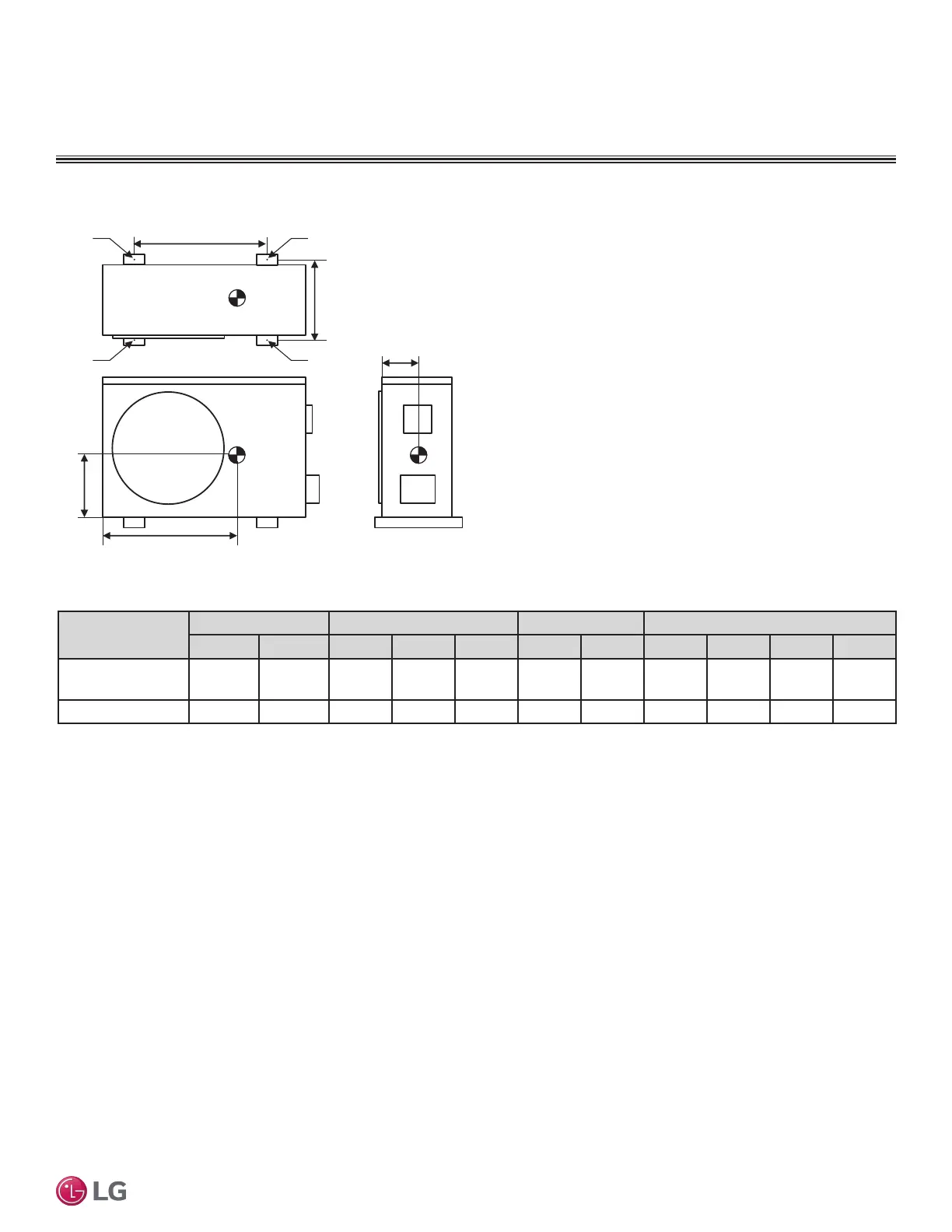

Figure 4: LSU090-120-180HSV5 Outdoor Unit Corner Weight and Center of Gravity Dimensions.
Model No.
Weight (lb.) Center of Gravity (in.) Leg (in.) Corner Weight (lb.)
Shipping Net a b c d e A B C D
LSU090HSV5,
LSU120HSV5
78.9 74.1 19-31/32 9-11/32 5-21/32 22 12-31/32 9.5 11.0 26.8 26.8
LSU180HSV5 126.5 116.8 21-3/32 13-25/32 6-23/32 21-1/2 13-13/32 21.1 16.4 38.6 40.7
Table 5: LSU090-120-180HSV5 Outdoor Unit Corner Weight and Center of Gravity Dimensions.
