LG LS5750 Series Service Manual
4
of 1
of 1 rating
129 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
79
/ 153

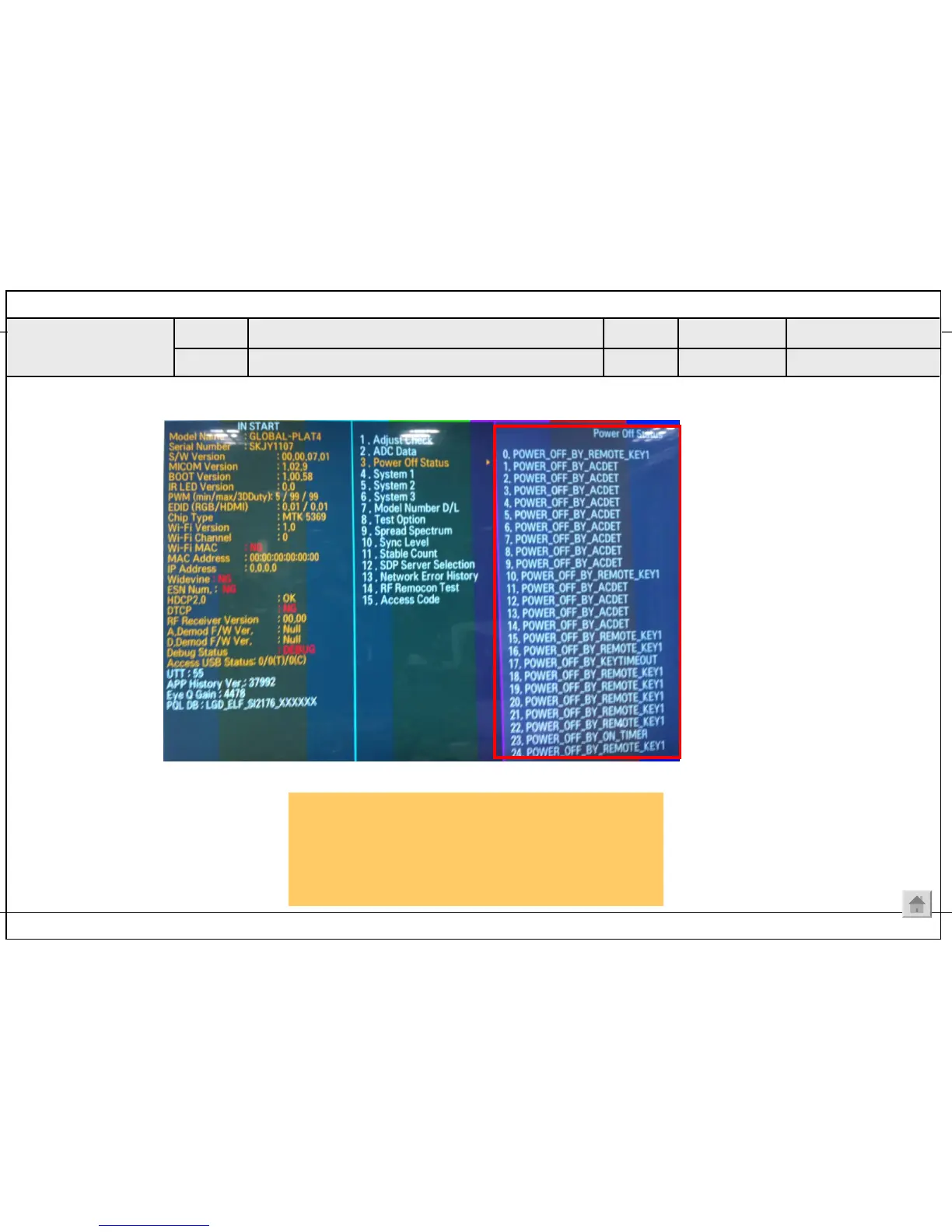

Entry method
1. Press the IN-START button of the remote controller
for adjustment
2. Check the entry into
adjustment item 3
Standard Repair Process Detail Technical Manual
POWER OFF
MODE checkin
g method
B. Power error
_Off when on, off whiling viewing
<ALL MODELS>
A22
Established
date
Revised
date
Error
symptom
Content
LCD TV
2010. 12 .14
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
124
126
Table of Contents
Service Manual
1
Safety Precautions
3
Important Safety Notice
3
General Guidance
3
Application Range
4
Test Condition
4
Test Method
4
General Specification
4
Supported Video Resolutions
5
Adjustment Instruction
10
Adjustment Items
10
Final Assembly Adjustment
14
White Balance Adjustment
14
Adjustment Method
14
Color Temperature
14
Optional Adjustments
19
Manual White Balance Adjustment
19
Exploded View
21
New Features
55
Circuit Block Diagram
71
Pin Configuration
71
Magic Remote Control
75
Mute Power
77
Function List
79
Block Diagram
82
Repair Guide
92
Power Error
101
Audio Error
103
Function Error
106
Checking Method
126
VCOM Adjustment
129
