Lamp in
Refrigerator
Compartment
Vegetable
Compartment
Cover
Water Plumbing

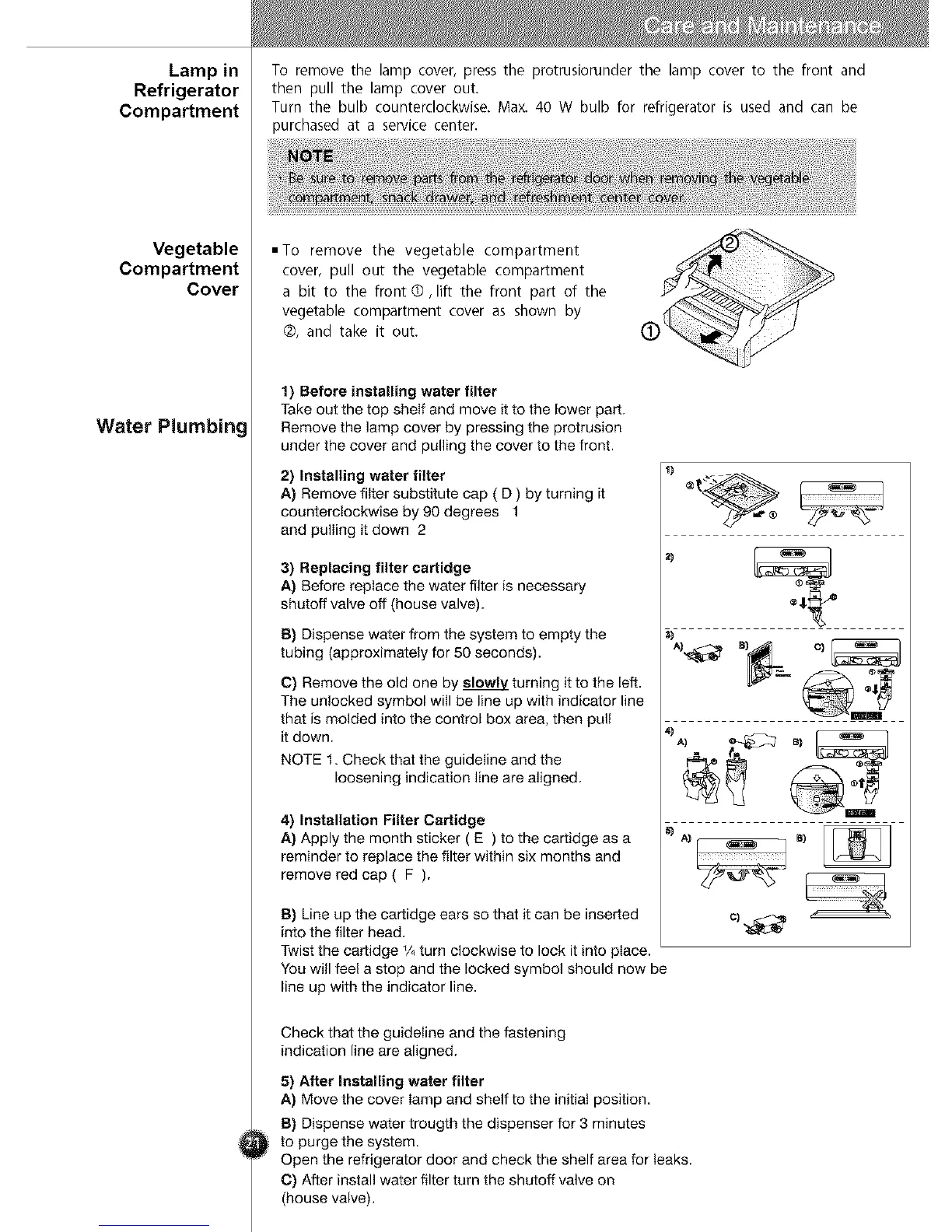

To remove the lamp cover, press the protrusiorunder the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be
purchased at a service center.
• To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front @,lift the front part of the
vegetable compartment cover as shown by
®, and take it out.
1) Before installing water filter
Take out the top shelf and move it to the lower part.
Remove the lamp cover by pressing the protrusion
under the cover and pulling the cover to the front,
2) Installing water filter
A) Remove filter substitute cap ( D ) by turning it
counterclockwise by 90 degrees 1
and pulling it down 2
3) Replacing filter cartidge
A) Before replace the water filter is necessary
shutoff valve off (house valve),
B) Dispense water from the system to empty the
tubing (approximately for 50 seconds).
C) Remove the old one by slowly turning it to the left.
The unlocked symbol will be line up with indicator line
that is molded into the control box area, then pull
it down.
NOTE 1. Check that the guideline and the
loosening indication line are aligned.
4) Installation Filter Csrtidge
A) Apply the month sticker ( E ) to the cartidge as a
reminder to replace the filter within six months and
remove red cap ( F ).
B) Line up the cartidge ears so that it can be inserted
into the filter head.
Twist the cartidge V, turn clockwise to lock it into place.
You will feel a stop and the locked symbol should now be
line up with the indicator line.
oI[Z
Check that the guideline and the fastening
indication line are aligned.
5) After Installing water filter
A) Move the cover lamp and shelf to the initial position.
B) Dispense water trougth the dispenser for 3 minutes
to purge the system.
Open the refrigerator door and check the shelf area for leaks.
C) After install water filter turn the shutoff valve on
(house valve),
