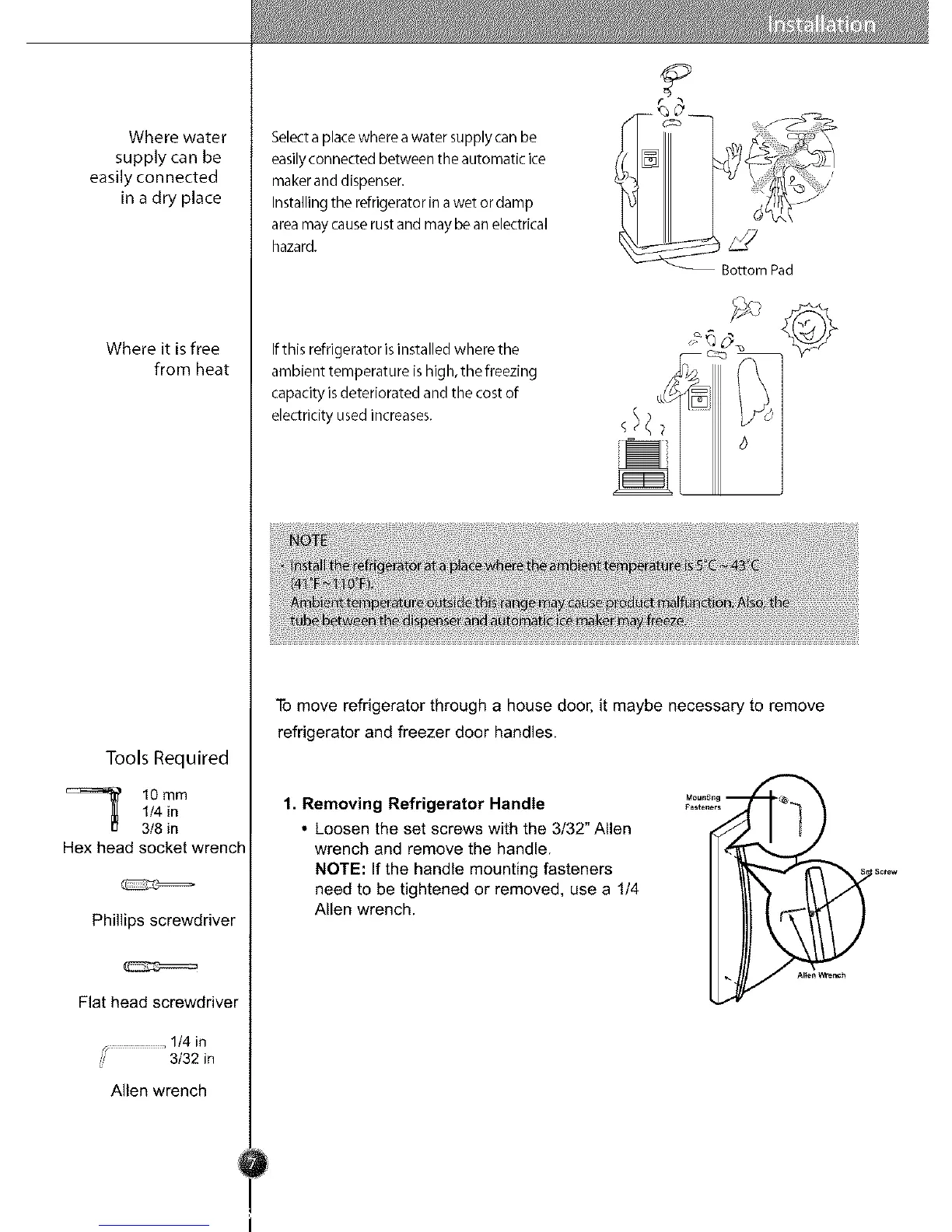

Where water
supply can be
easily connected
in a dry place
Where it is free
from heat
Tools Required
10 mm
114in
318 in
Hex head socket wrench
Phillips screwdriver
Flat head screwdriver
..........................,1/4 in
3/32 in
5
Allen wrench
Selecta place where a water supply can be
easily connected between the automatic ice
maker and dispenser.
Installing the refrigerator in a wet or damp
area may cause rust and may be an electrical
hazard.
I#
Si!!_F_ "_ii!!ii_h_
4%Lt
B_o_m Pad
If this refrigerator is installed where the
ambient temperature is high, the freezing
capacity is deteriorated and the cost of
electricity used increases.
To move refrigerator through a house door, it maybe necessary to remove
refrigerator and freezer door handles.
1. Removing Refrigerator Handle _"_ -"_
* Loosen the set screws with the 3t32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4
Allen wrench.
To Next Page
