LG LSE3092ST Service Manual

3-15
COMPONENT ACCESS

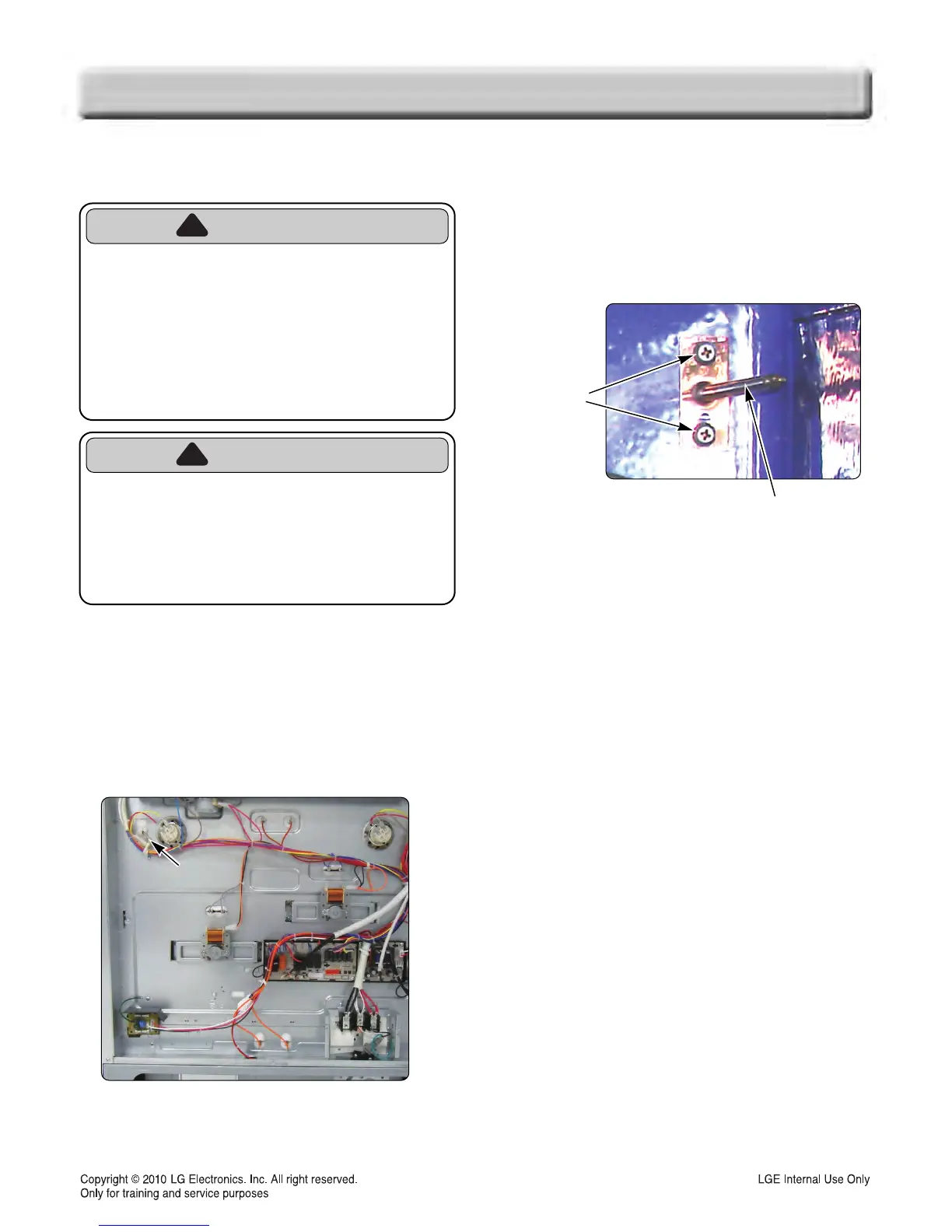

REMOVING THE OVEN TEMPERA
REMOVING THE OVEN TEMPERA
TURE SENSORS
TURE SENSORS
1. Turn off the electrical supply going to the range.
2. Open the oven door and remove the racks from
the oven.
3. Pull the range away from the wall so that you can
access the rear panel.
4. Remove the 16 screws from the rear panel and
remove the panel (see step 3 on page 3-2).
5. To remove an oven temperature sensor,
disconnect the connector from the main harness
and remove the two mounting screws in oven
cavity.
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Screws
Main oven Sensor
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
!
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
!
