LG LSN181HSV Data Book

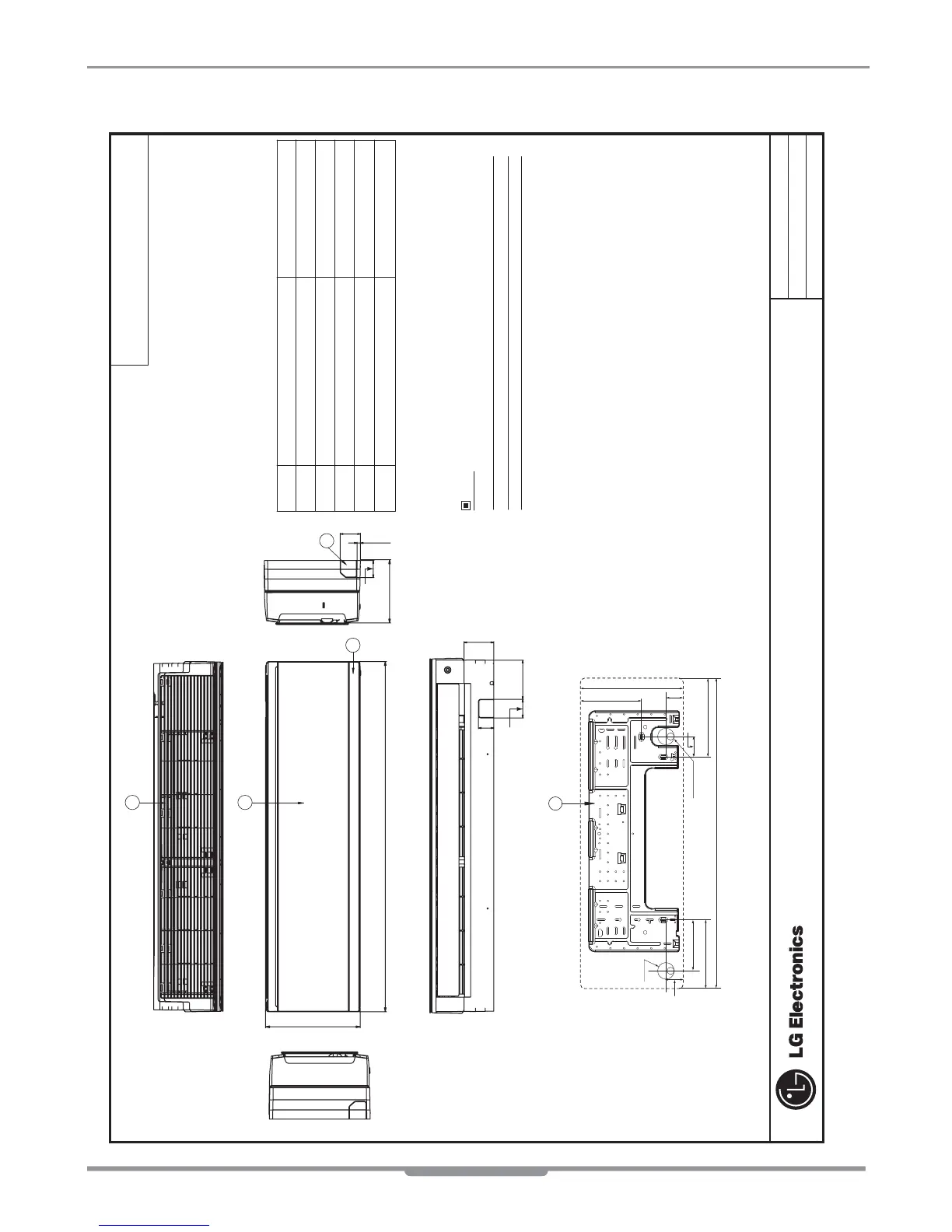

Dimensional drawings6RMI0-02A
17
Inverter Single
140(5.5)
Ø70(2.8)
188(7.4)
926(36.5)
65(2.6)
221(8.7)
45(1.8)
296(11.7)
175(6.9)
Ø70(2.8)
ART COOL Mirror
Display & signal receiver
Part Name
Front panel Air suction grille Knockout hole For pipe and cable
No.
2
4
Installation plate
5 3
1
Remark
Note
1. The unit should not be installed in a closed area. 2. In an area or space having no proper circulation, an air guide should be installed on the outdoor side.
3 1
2
4
299(11.8)
48(1.9)
93(3.7)
122(4.8)
200(7.9)
1107(43.6)
10(0.4)
63(2.5)
53(2.1)
58(2.3)
5
CHASSIS CODE: S8
45(1.8)
[Unit: mm (inch)]
Inverter Single

LG LSN181HSV Specifications

General

Brand	LG
Model	LSN181HSV
Category	Air Conditioner
Language	English
