LG LT66 Series User Manual

16
MAKING CONNECTIONS
ENG
ENGLISH
MAKING
CONNECTIONS
This section on MAKINGCONNECTIONS mainly
uses diagrams for the 32LT66** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information on external device’s
connection, refer to the manual provided with each
device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage
devices, PC, gaming devices, and other external
devices.
NOTE

The external device connection may differ
from the model.

Connect external devices to the TV
regardless of the order of the TV port.

If you record a TV program on a DVD
recorder or VCR, make sure to connect the
TV signal input cable to the TV through a
DVD recorder or VCR. For more information
on recording, refer to the manual provided
with the connected device.

Refer to the external equipment’s manual for
operating instructions.

If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.

In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.

In PC mode, some resolution settings may
not work properly depending on the graphics
card.

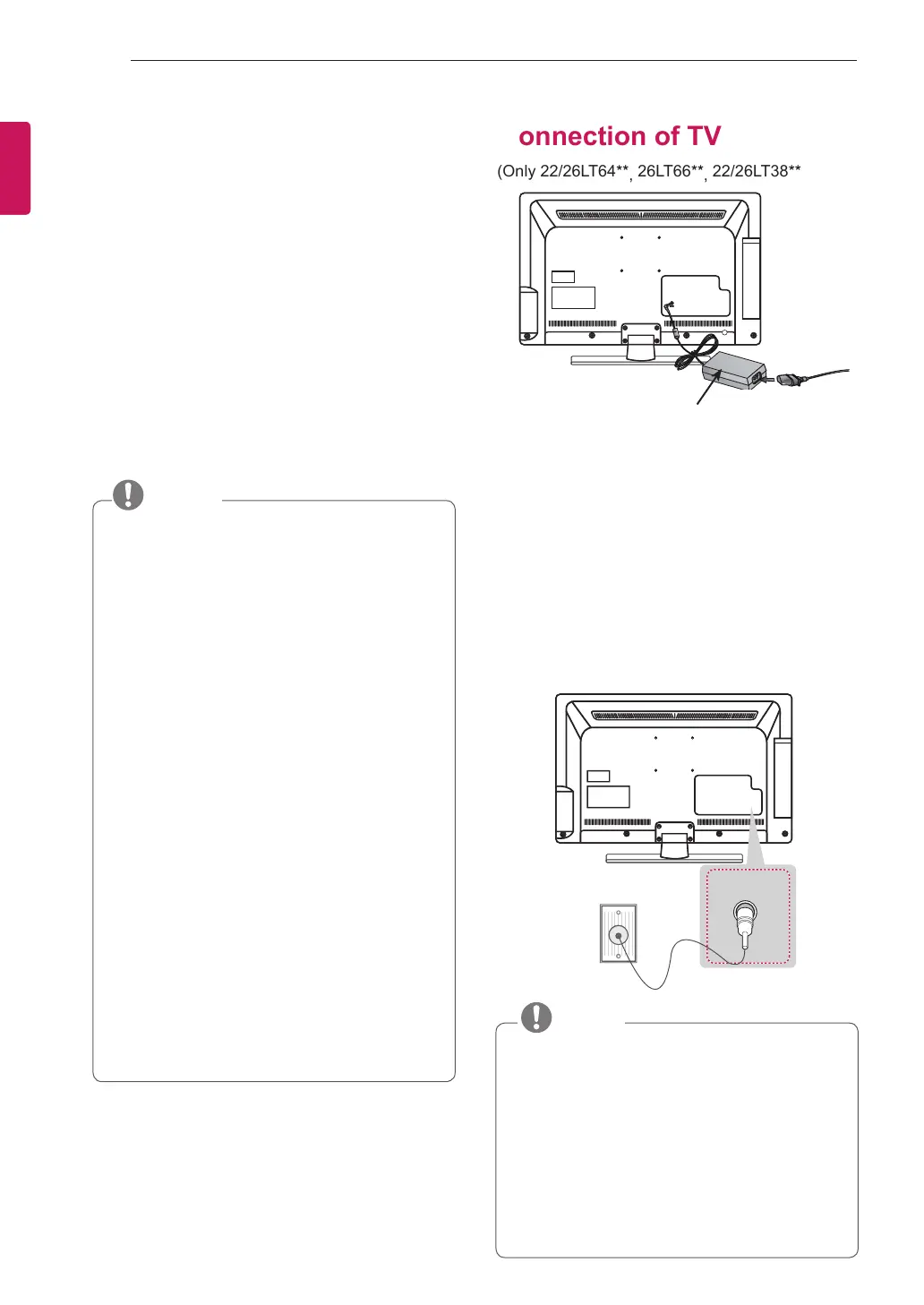

ConnectionofTV
DC IN
DC Adapter
1
Connect the antenna cable to the antenna
input port on the TV.
2
Connect the DC adapter plug to the power
input jack on the TV.
3
Connect the power cord to the DC adapter rst,
then plug the power cord into the wall power
outlet.
(Only 22/26LT64**
,
26LT66**
,
22/26LT38**)
Antennaconnection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
 NOTE

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal
amplifier properly to improve the image
quality.

If the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.

An antenna cable and converter are not
supplied.

Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
ANTENNA
IN
A
NTENNA / CABLE
IN
ANTENNA
IN
