MAKING CONNECTIONS
ENGENGLISH
HDMIconnection

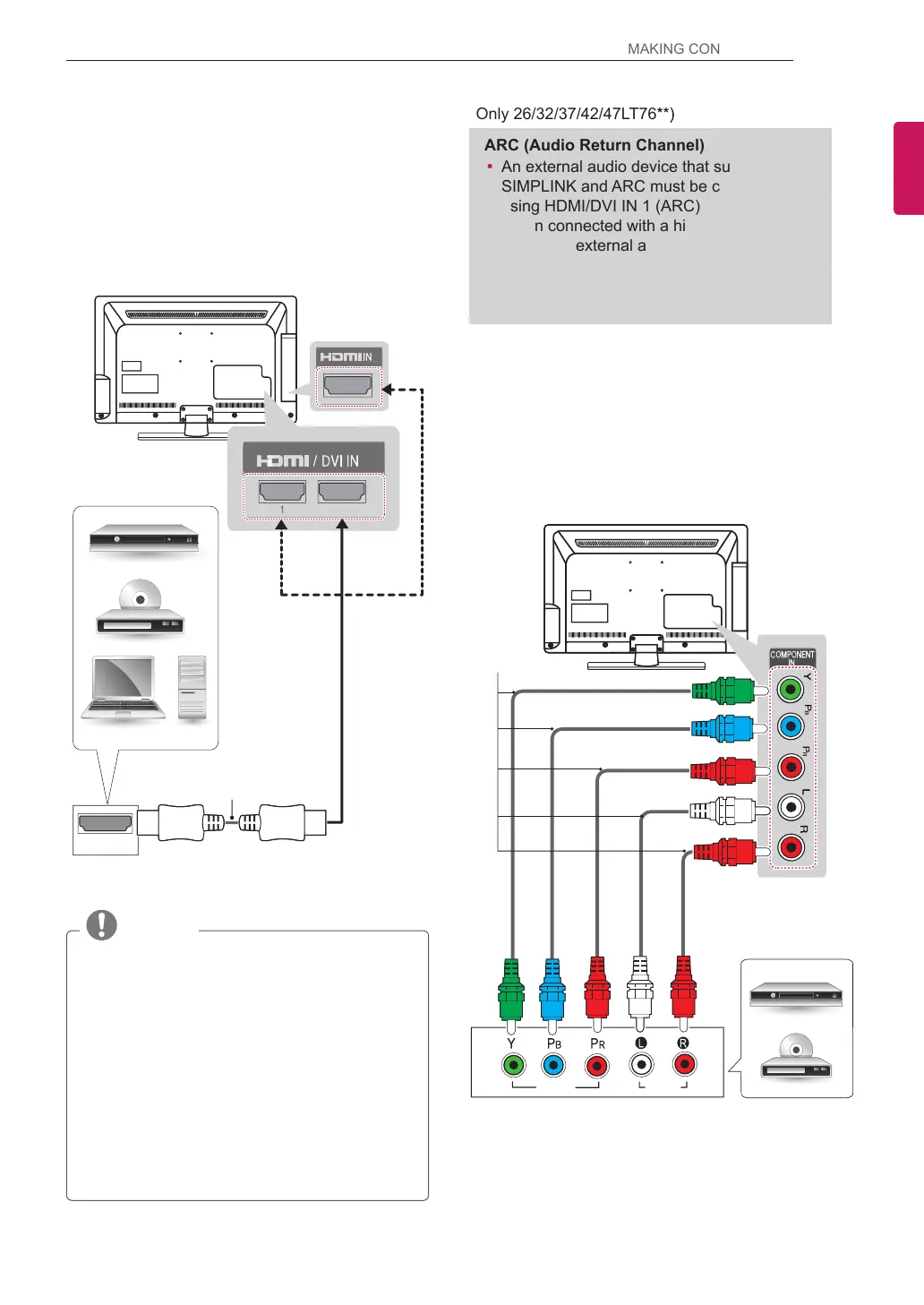

Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TV
with the HDMI cable as shown in the following
illustrations. Choose any HDMI input port to
connect. It does not matter which port you use.
NOTE

It is recommended to use the TV with the
HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.

High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.

Supported HDMI Audio format : Dolby
Digital, PCM (Up to 192 KHz, 32KHz/44.1K
Hz/48KHz/88KHz/96KHz/176KHz/192KHz,
DTS Not supported.)
HDMI
1
2
3
3
(*Not Provided)
DVD/ Blu-Ray /
HD Cable Box / HD STB
/ PC
ARC(AudioReturnChannel)

An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI/DVI IN 1 (ARC) port.

When connected with a high-speed HDMI
cable, the external audio device that
supports ARC outputs optical SPDIF without
additional optical audio cable and supports
the SIMPLINK function.
(Only 26/32/37/42/47LT76**)
Componentconnection
(Only LT64
**
, LT66
**
, LT38
**
, LT74
**
)
Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the component
cable as shown in the following illustrations.
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
ANTENNA
IN
RGB IN (PC)
1
2
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
AV1
(RGB)
VIDEO
AUDIO
DVD/ Blu-Ray /
HD Cable Box
RED WHITE RED
BLUE
GREEN
(*Not
Provided)
