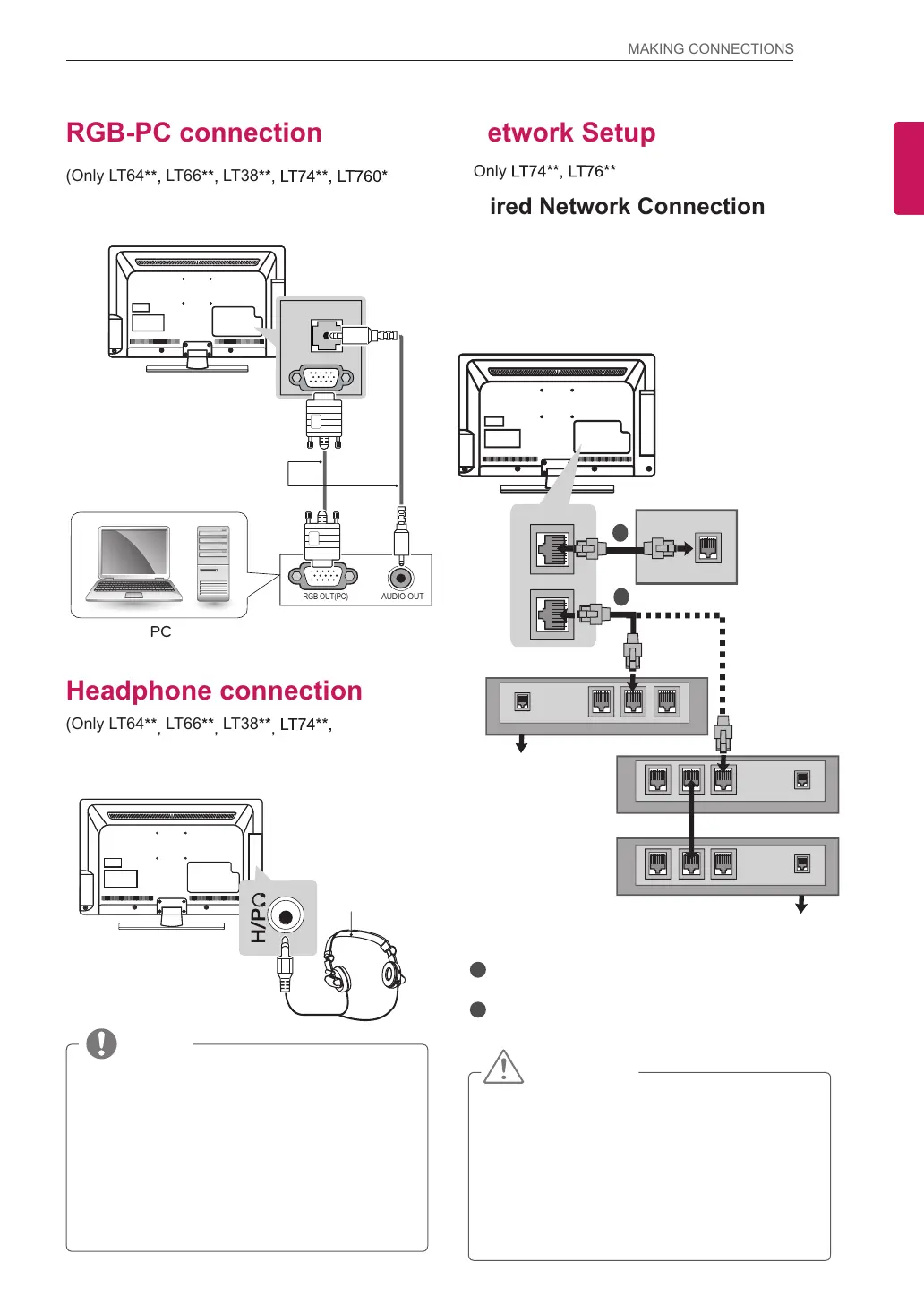

MAKING CONNECTIONS
ENGENGLISH
RGB-PCconnection
(Only LT64**, LT66**, LT38**, LT74 **, LT760* )
Transmits the video signal from PC to the TV. To
transmit an audio signal, connect an audio cable.
RGB OUT (PC)
AUDIO OUT
AUDIO IN
(RGB/DVI)
RGB IN (PC)
PC
(*Not Provided)
Headphoneconnection
(Only LT64**
,
LT66**
,
LT38**
,
LT74**, LT769*)
Transmits the headphone signal from the TV to an
external device. Connect the external device and
the TV with the headphone as shown.
(*Not Provided)
NOTE

AUDIO menu items are disabled when
connecting a headphone.

When changing AV MODE with a headphone
connected, the change is applied to video
but not to audio.

Optical Digital Audio Out is not available
when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 9 mW to 15
mW

Headphone jack size: 0.35 cm
WiredNetworkConnection
Connect the LAN port of the Modem or Router
to the LAN port on the TV.
Connect the LAN port of the PC to the AUX LAN
port on the TV. (Only LT74**, LT760*)
1
2
CAUTION

AUX LAN : Only LT74**, LT760*

Do not connect a modular phone cable to the
LAN port.

Since there are various connection methods,
please follow the specifications of your
telecommunication carrier or internet service
provider.
1
2
HDMI/DVI IN
(RGB)
R
S
PEAKE
R
OUT
STEREO (8 )
ANTENNA
IN
LAN
AUX LAN
2
1
Broadband Service
Broadband Modem
Broadband Modem
Broadband Service
Router
NetworkSetup
(Only LT74**, LT76** )
This TV can be connected to a local area network
(LAN) via the LAN port. After making the physical
connection, the TV needs to be set up for network
communication.
(Image shown may differ from your TV.)
