8

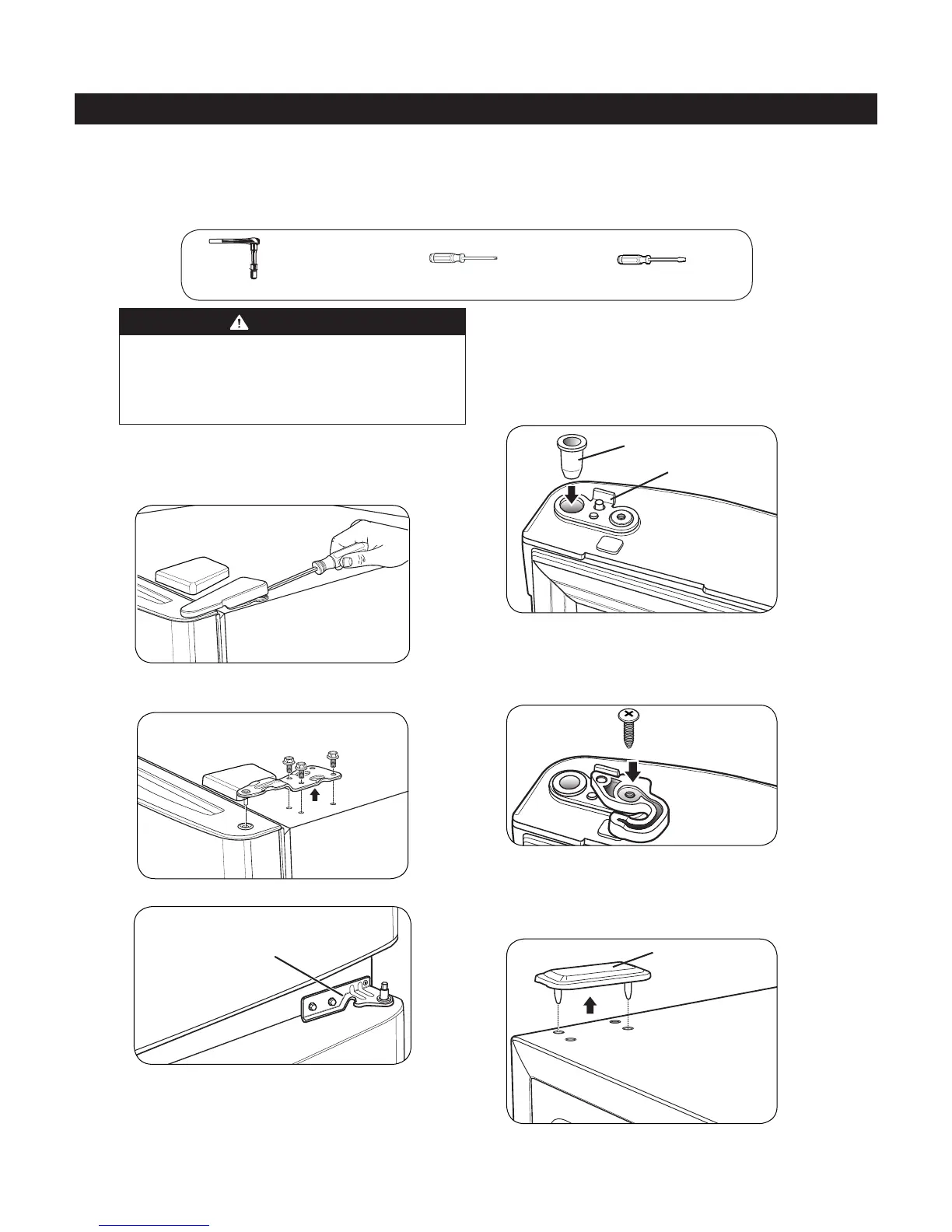

HOW TO REVERSE AND INSTALL THE REFRIGERATOR DOORS (on some models)
You may find it more convenient to have the doors converted from the left opening type (factory installed) to the right
opening type. Directions refer to the right side as the side on your right as you face the unit.
TOOLS YOU MIGHT NEED OR USE
WARNING
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off the power at the circuit breaker or fuse box.
Remove food and any door rack from the refrigerator.
Failure to do so could result in death or serious injury.
1. Removing Freezer Door
Gently pry off the top hinge cover with a flat head
screwdriver and remove.
Using 10mm or 3/8 inch socket wrench, remove the
three bolts and lift off the top hinge. Set parts aside
Slightly lift up the refrigerator door and remove it.
Turn the freezer door upside down on a non-scratch
surface. Loosen the screw to remove the Door
Closer/Stop and Hinge Pin Insert.
Move the Hinge Pin Insert Bracket to the other side of
the door, keeping the same orientation, and move the
Hinge Pin Insert into the hole on the left side of the
bracket.
Reverse the Door Closer/Stop by flipping it over. Place it
on top of the Hinge Pin Insert Bracket, and tighten both
down with the screw.
Pry off the cover on the top left side of the refrigerator to
uncover the screw holes.
Set the freezer door and top hinge parts to the side and
remove the refrigerator door.
REFRIGERATOR INSTALLATION
Hinge Pin
Middle Hinge Bracket
Hinge Pin
Insert Bracket
Hinge Pin Insert
Cover
(on top of
refrigerator)
3/8 in
10 mm
Hex Socket Wrench Phillips Screwdriver No. 2 Flat Head Screwdriver
1/4 in
To Next Page
