11
Tighten the bolts. Force-fit Top Hinge Cover over Top
Hinge.
Replace cover on the top left side of the refrigerator
to the right top to cover the holes. Cover is also
force-fitted.
After changing doors, make sure that the corners
of the Door Gaskets are not folded over. To ensure a
good seal, apply a small amount of silicon grease on
the corners of gaskets.
Corners

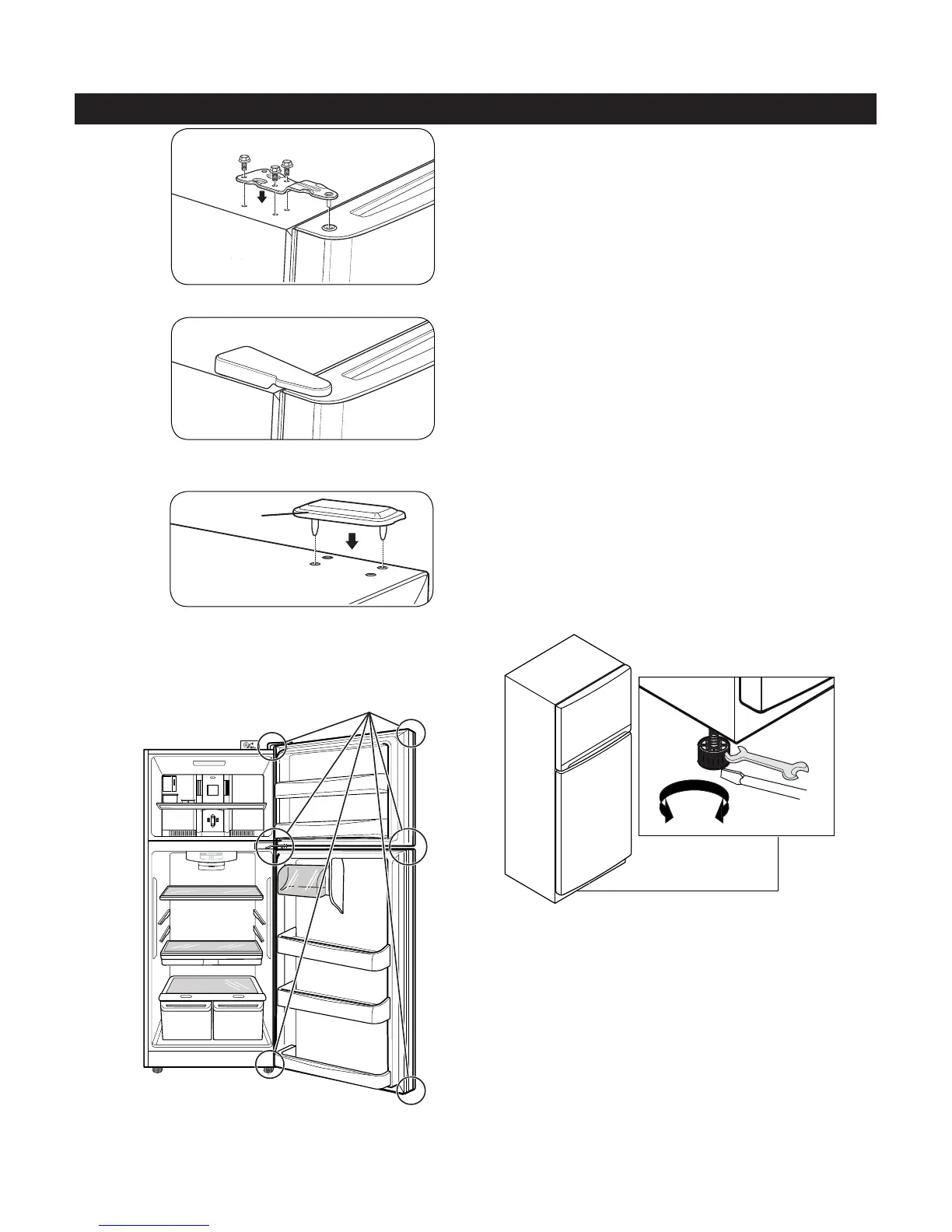

REFRIGERATOR INSTALLATION
REFRIGERATOR INSTALLATION
CLOSING AND ALIGNING THE DOORS
To avoid vibration, the unit must be leveled. If necessary,
adjust the Leveling Legs to compensate for unevenness
of the floor. The front should be slightly higher than the
rear to aid in door closing.
Your refrigerator has three front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
NOTE: Third leveling screw is used for protection of
hinge lower.
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2.
Use a 11/16” (18 mm) wrench or an adjustable wrench
to adjust the leveling screws (see Figure A), turning
clockwise to raise the side of the refrigerator and
counter-clockwise to lower it. It may take several turns
to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling legs.
This will make it easier to adjust the level.
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly
more to the rear by turning both Leveling Screws
clockwise. It may take several more turns, and you
should turn both Leveling Screws the
same times.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove.
2. Loosen the Top Hinge Bolts using a 10 mm or 13/32
inch socket wrench or open-end wrench.
3. Have someone hold the freezer door so the space
between the two doors is even, and retighten the top
hinge bolts.
4. Replace the Top Hinge Cover.
Figure A
