LG M2080D - Connecting with a Rca Cable

28
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
1
OPTICAL
DIGITAL
AUDIO OUT
USB IN
VIDEO
YP
B P R
LR
AUDIO
AUDIO
IN
(RGB/DVI)
H / P
COMPONENT IN
VIDEO
(MONO) L -
AUDIO
- R
AV IN2
L
R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT

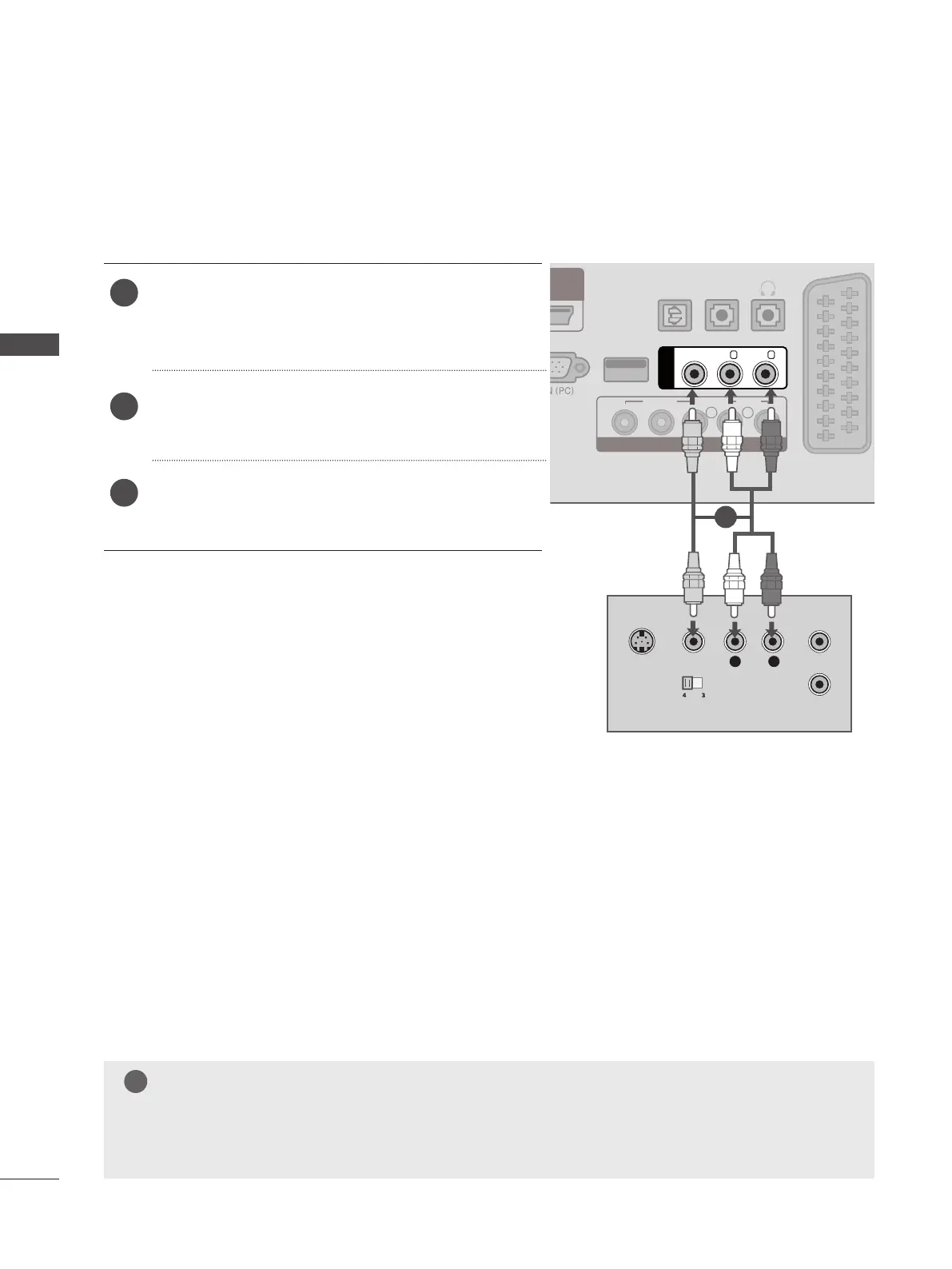

Connecting with a RCA cable
Connect the AUDIO/VIDEO jacks between SET and
VCR. Match the jack colours (Video = yellow, Audio
Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select AV2 input source using the INPUT button on
the remote control.
1
2
3
1
NOTE
►If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L / MONO jack of
the SET.
!
