LG M2262D User Manual

17
EXTERNAL EQUIPMENT SETUP

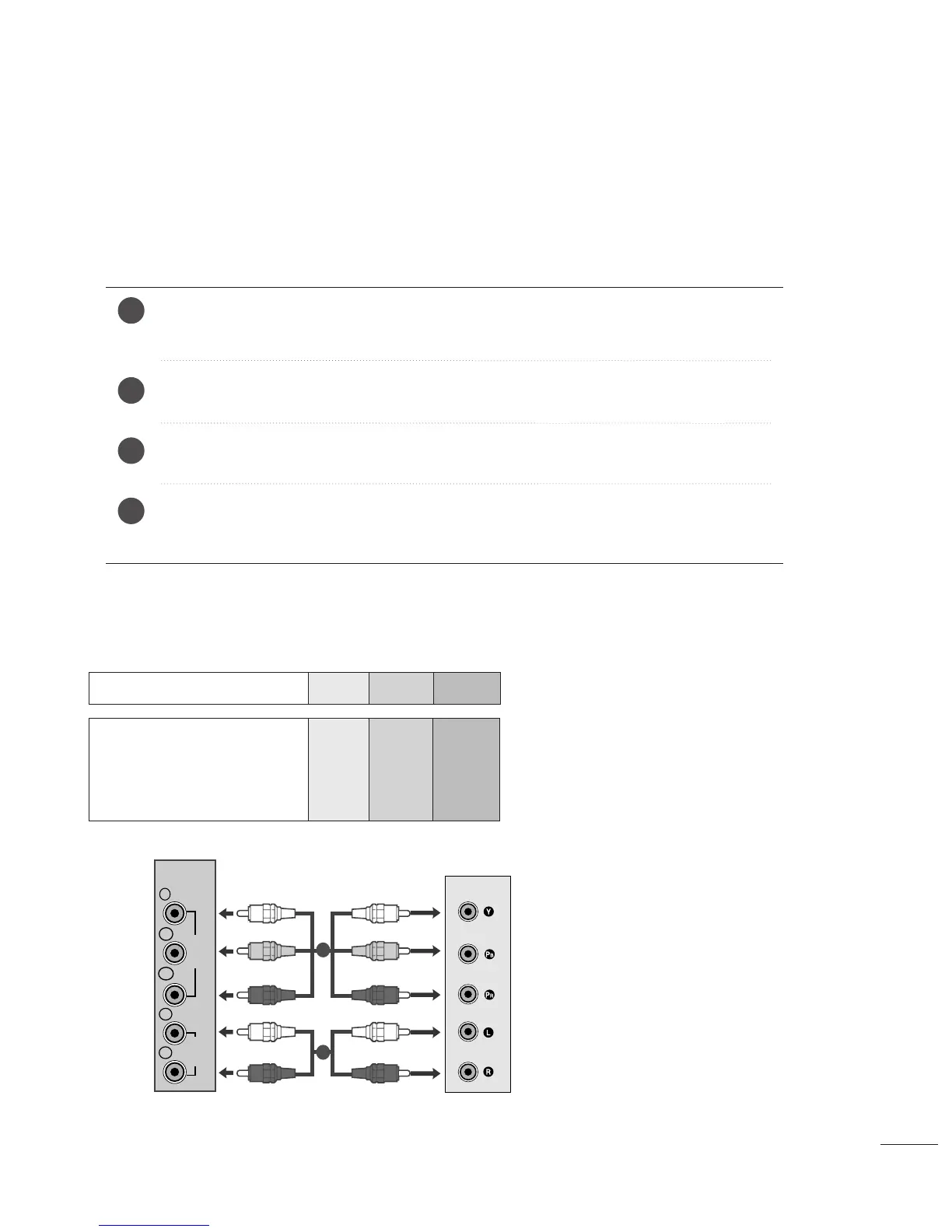

DVD SETUP
When connecting with a component cable
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set
YP
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video output sockets (Y P
B PR) of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
sockets (Y P
B PR) of the set.
Connect the audio cable from the DVD to
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt
.
Press the
PPLLAAYY
button on the DVD.
The DVD playback picture appears on the screen.
2
3
4
1
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

LG M2262D Specifications

General

Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Viewable size diagonal	546.1 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Power requirements	90 – 264 V, 47/63 Hz
Display viewable area (HxV)	476.6 x 268.1 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	53 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	193.5 mm
Width (without stand)	519.8 mm
Height (without stand)	400.5 mm
Weight (without stand)	4700 g
