Name and Function of the Parts

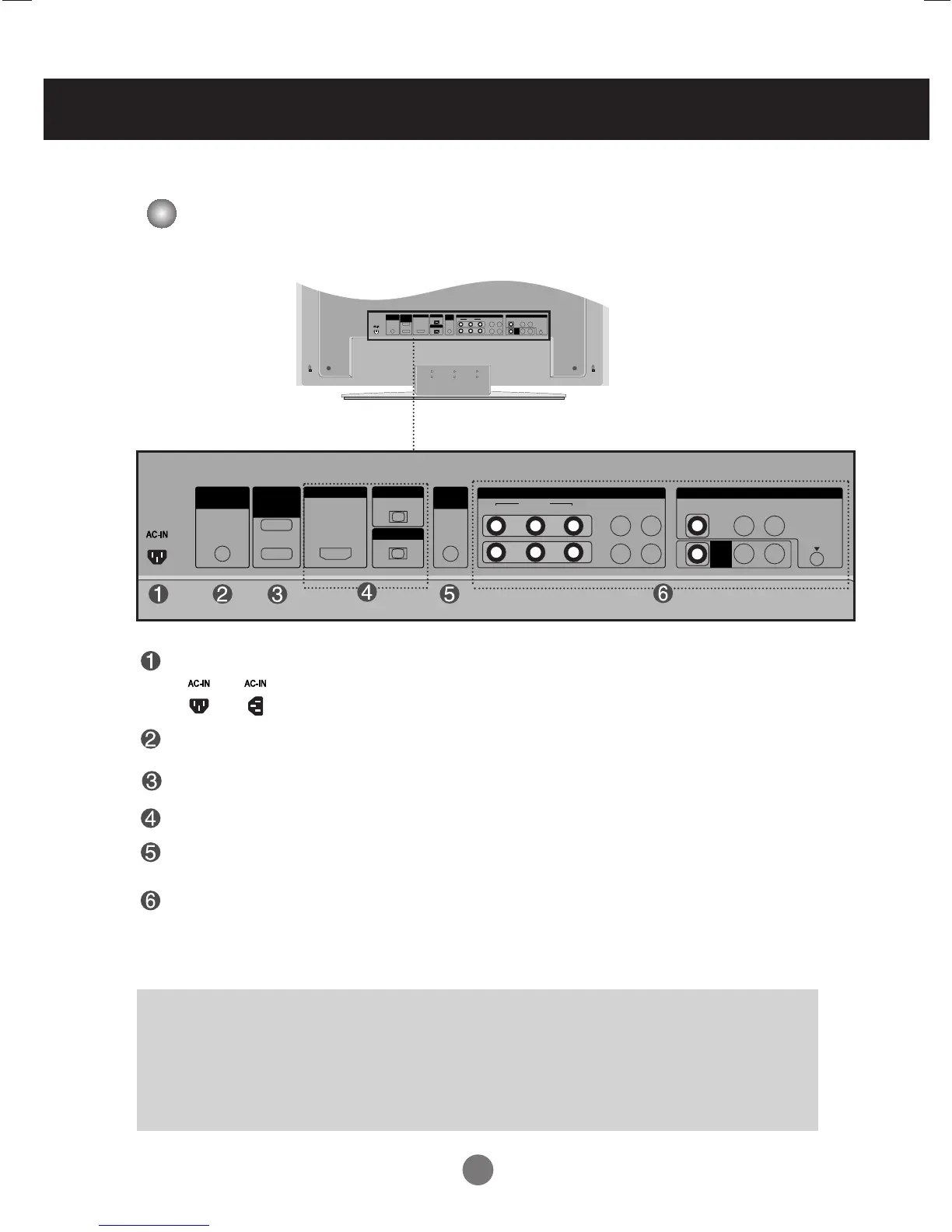

Rear View
Power Connector : Connect the power cord
Wired Remote Control Port
RS-232C Serial Ports
RGB, HDMI/DVI Ports
PC Sound Jack
: Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP B P R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
*LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of
PC sound card has only Speaker Out, reduce the PC volume.
If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using
the card jumper of the program (Refer to the Sound Card Manual).
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP B P R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
* The product image in the user’s guide could be different from the actual image.
Power connector and image may differ according to model.

LG M3201C Specifications

Panel Specifications

LCD Panel Type	32” Widescreen TFT LCD
Display Area	31.5” diagonal
Aspect Ratio	16:9
Native Resolution	1366 x 768
Brightness	500 cd/m2
Contrast Ratio	1600:1
Response Time	8 ms
Viewing Angle	178 / 178

Video Specifications

Max Input Resolution	768p
H-Scanning Frequency	RGB : 30 - 83 kHz; HDMI/DVI : 30 - 72 kHz
V-Scanning Frequency	56 - 85 Hz

Power Specifications

Rated Voltage	AC 100-240V~ 50/60Hz 1.5A
On Mode Power	145W
DPM Off Power	1W
Off Mode Power	1W

Environmental Conditions

Operational Temperature	50°F ~ 95°F, 10°C ~ 35°C
Operational Humidity	10% ~ 80%
Storage Temperature	-4°F ~ 140°F, -20°C ~ 60°C
Storage Humidity	5% ~ 95%

Cabinet Specifications

Monitor Dimensions (W x H x D)	31.62” x 19.41” x 3.94”
Weight (Head Only)	46.52 lbs
Carton Dimensions (W x H x D)	36.11” x 27.72” x 13.07”
Packed Weight	52.91 lbs

Audio Features

Max Audio Output	20Watt (10W x 2EA)
Audio Built-in AMP	Yes
Audio Features	Equalizer, Auto Volume Limiter, Balance, Speaker on/off
