Use this function when displaying ANALOG RGB inputs of a PC to the other product.
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
Product 1
• To use different products connected to each other
Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT
connector of product 1 and connect the other end to the RGB IN connector of other
products.

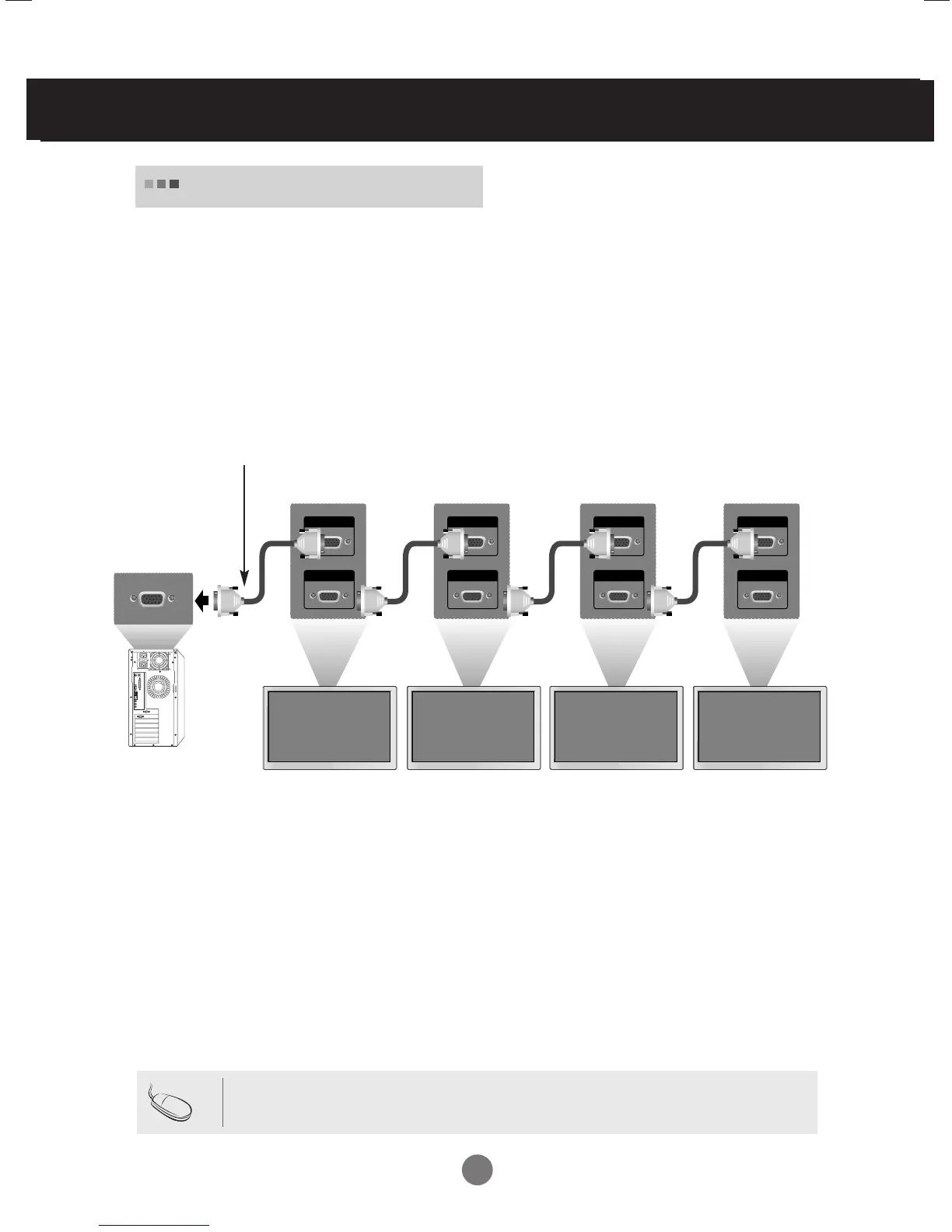

Watching RGB Outputs
PC
Product 2
Product 3
Product 4
15-pin D-Sub Signal Cable
Connecting to External Devices
• When multi-connecting in/out cascade format, cables to be less damaged are recommended.
We recommend that you should use cable distributor.
Note
PC

LG M3201C Specifications

Panel Specifications

LCD Panel Type	32” Widescreen TFT LCD
Display Area	31.5” diagonal
Aspect Ratio	16:9
Native Resolution	1366 x 768
Brightness	500 cd/m2
Contrast Ratio	1600:1
Response Time	8 ms
Viewing Angle	178 / 178

Video Specifications

Max Input Resolution	768p
H-Scanning Frequency	RGB : 30 - 83 kHz; HDMI/DVI : 30 - 72 kHz
V-Scanning Frequency	56 - 85 Hz

Power Specifications

Rated Voltage	AC 100-240V~ 50/60Hz 1.5A
On Mode Power	145W
DPM Off Power	1W
Off Mode Power	1W

Environmental Conditions

Operational Temperature	50°F ~ 95°F, 10°C ~ 35°C
Operational Humidity	10% ~ 80%
Storage Temperature	-4°F ~ 140°F, -20°C ~ 60°C
Storage Humidity	5% ~ 95%

Cabinet Specifications

Monitor Dimensions (W x H x D)	31.62” x 19.41” x 3.94”
Weight (Head Only)	46.52 lbs
Carton Dimensions (W x H x D)	36.11” x 27.72” x 13.07”
Packed Weight	52.91 lbs

Audio Features

Max Audio Output	20Watt (10W x 2EA)
Audio Built-in AMP	Yes
Audio Features	Equalizer, Auto Volume Limiter, Balance, Speaker on/off
