Checking the Drainage, Forming the Pipings and Long Pipe Setting
Checking the Drainage, Forming the Pipings and Long Pipe Setting

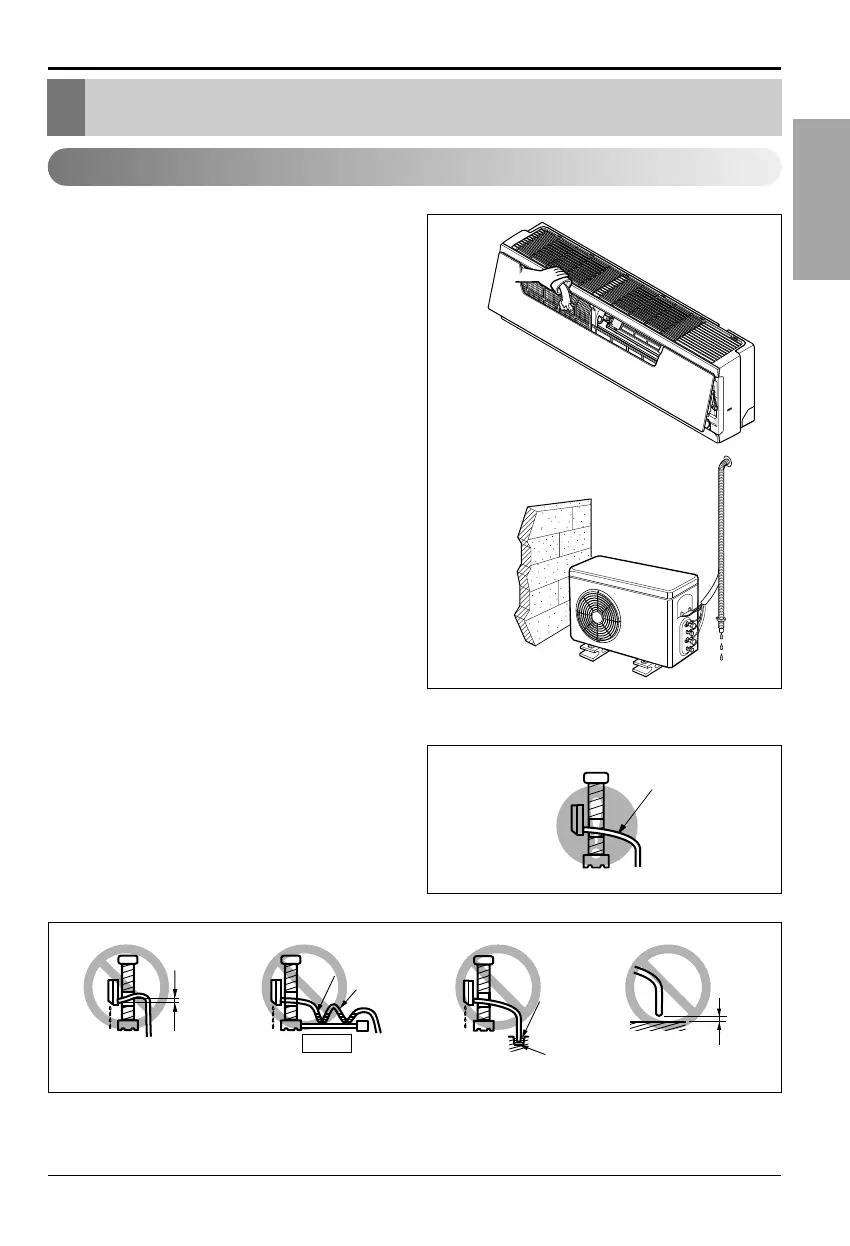

Checking the drainage
To check the drainage.
1. Pour a glass of water on the evaporator.
2. Ensure the water flows through the drain
hose of the indoor unit without any leakage
and goes out the drain exit.
Drain piping
1. The drain hose should point downward for
easy drain flow.
2. Do not make drain piping.
Downward slope
Do not raise
Accumulated
drain water
Tip of drain hose
dipped in water
Air
Waving
Water
leakage
Water
leakage
Ditch
Less than
50mm gap
Water
leakage

LG MC12AHR Specifications

General

Type	Split system
Cooling capacity (max)	12000 BTU/h
Dehumidifying capacity	1.5 l/h
Heating capacity (max)	13200 BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3520 W
Heating capacity in watts (max)	3870 W
Indoor unit type	Wall-mountable
Airflow	600 m³/h
Noise level	35 dB

Weight and Dimensions

Weight	9500 g
Dimensions (WxDxH)	915 x 165 x 282 mm
