3-19

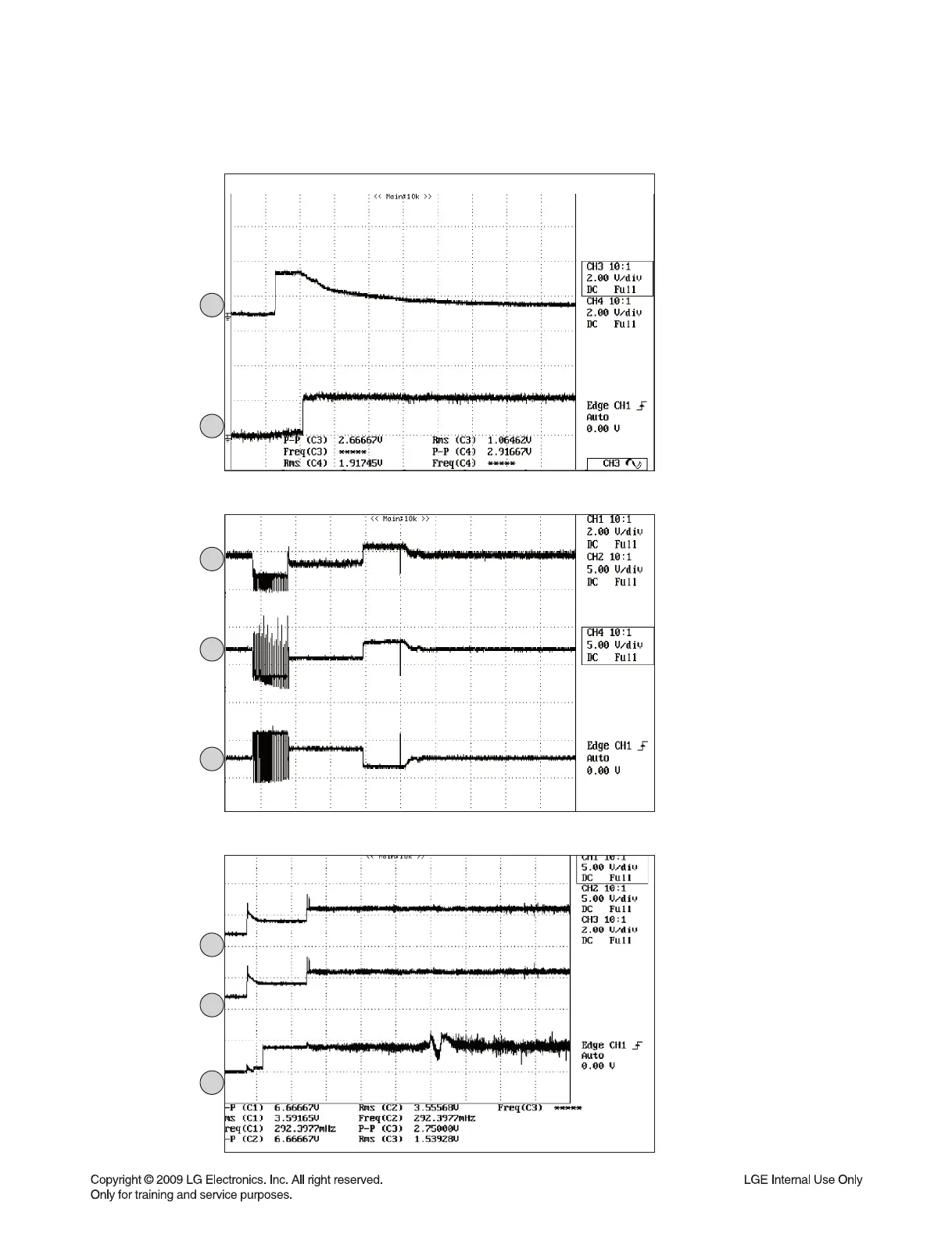

5. FOCUS WAVEFORM (AT DVD)
6. AT POWER ON , SPINDLE SIGNAL AT MD DECK
7. TRACKING SIGNAL
Q405(DVD_LD)
Q406(CD_LD)
15
16
Q405
Q406
Sclavijad
Sclavija+
Sclavija-
17
18
19
IC401 pin 21
IC401 pin 15
IC401 pin 16
Tro
Tr-
Tr+
20
21
22
IC401 pin 7
P400 pin 16
P400 pin 17
33
35
Table of Contents
Table of Contents
2
Section 1. General
3
Servicing Precautions
3
Service Information for Eeprom
6
Program Download Guide
7
Specifications
8
Section 2. Exploded Views
10
Cabinet and Main Frame Section
10
Mechanism Exploded View
11
Speaker Exploded View
14
Packing Accessory View
15
Section 3. Electrical Part
16
Waveforms of Major Check Point
32
Wiring Diagram
36
Block Diagrams
37
Circuit Diagrams
40
Circuit Voltage Chart
52
