3-20

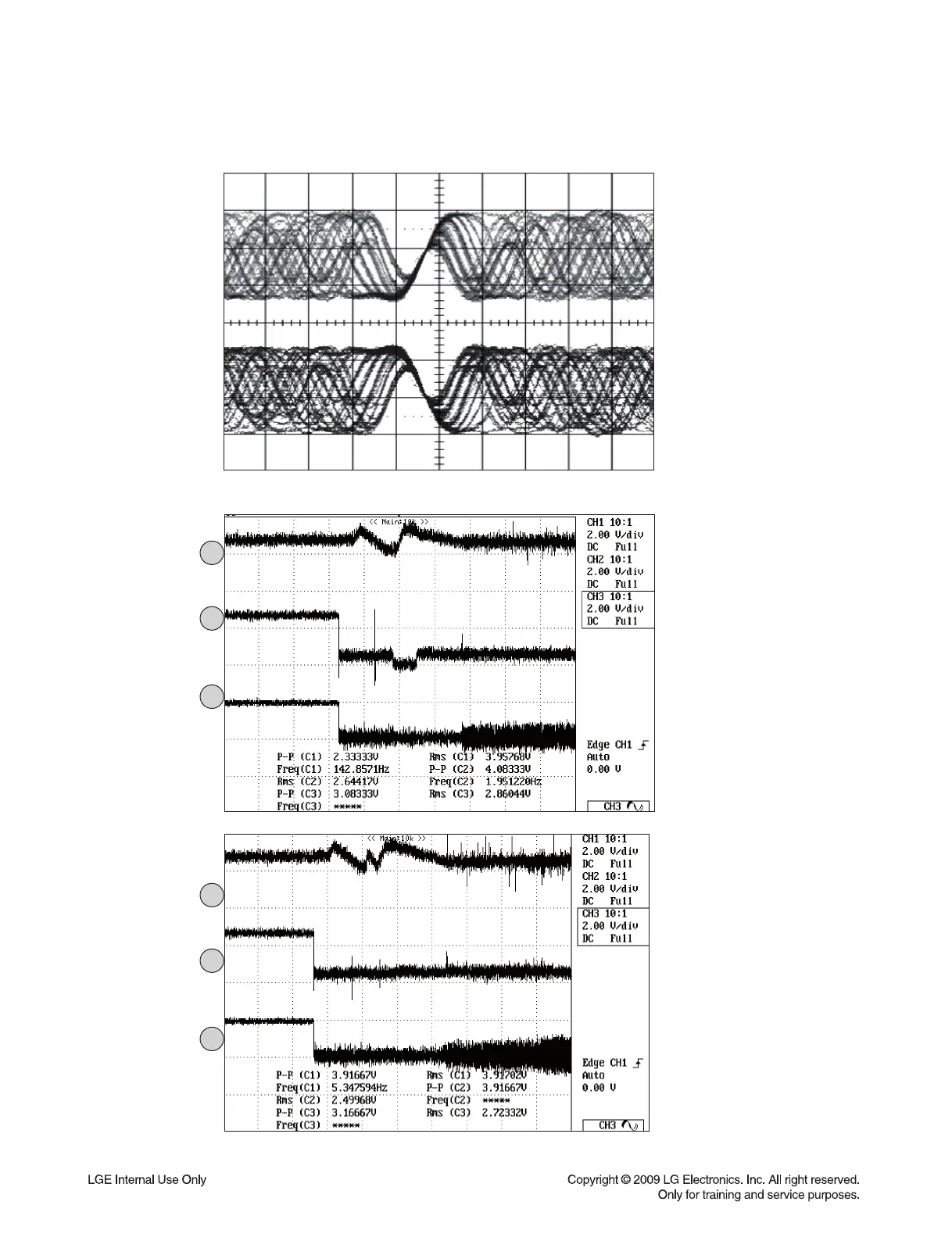

9. DISK TYPE JUGEMENT WAVEFORM
8. RF WAVEFORM
DVD
F+
FDO
SVRRF
23
24
25
P400 pin 18
IC401 pin 6
IC401 pin 23
CD
F+
FDO
SVRRF
26
27
28
P400 pin 18
IC401 pin 6
IC401 pin 23
