ASSEMBLING AND PREPARING
ENGLISH

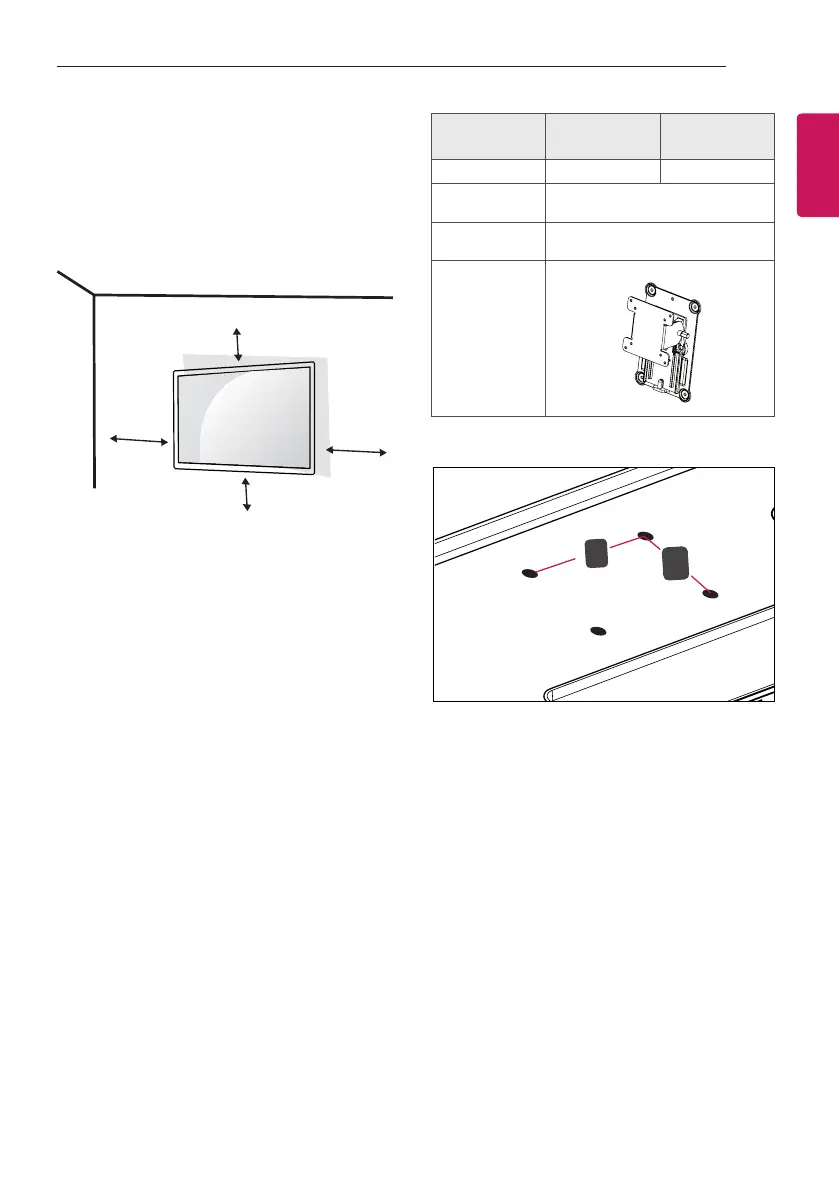

Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting
Bracket Installation and Setup Guide.
10 cm
10 cm
10 cm
10 cm
If you intend to mount the TV to a wall, attach
Wall mounting interface (optional parts) to the
back of the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1 Please, Use the screw and wall mount
interface in accordance with VESA
Standards.
2 If you use screw longer than standard, the TV
might be damaged internally.
3 If you use improper screw, the product
might be damaged and drop from mounted
position. In this case, LG Electronics is not
responsible for it.
4 VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5 Please use VESA standard as below.
y
784.8 mm and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y
787.4 mm and above
* Please use VESA standard wall mount pad
and screws.
Model 22/24MT44*
22/24MT45*
28/29MT45*
VESA (A x B) 75 x 75 100 x 100
Standard
screw
M4 x L10
Number of
screws
4
Wall mount
bracket
(optional)
RW120
y
VESA (A x B)
A
B
To Next Page
