3. Distributor type MULTI F DX (3 phase)
11 _
Heat pump
50Hz/R410A
Part 2 Product data_Outdoor units
1. Unit should be installed in compliance with the installation manual in
the product box.
2. Unit should be grounded in accordance with the local regulations or
applicable national codes.
3. All electrical components and materials to be supplied on the site
must comply with the local regulations or international codes.
4. Electrical characteristics chapter should be considered for electrical
work and design. Especially the capacity of power cable and circuit
breaker for outdoor unit should be more than that of electrical
characteristics chapter.
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
www.lge.com/airconditioner
CHASSIS CODE: U3
OUTDOOR UNIT
A7UW42LFA0 [FM41AH U32]
A8UW48LFA0 [FM49AH U32]
A9UW56LFA0 [FM57AH U32]
Note
Part Name
Air discharge grille
Gas pipe connection
Liquid pipe connection
No.
2
3
1
Remark
Suppor
4-holes for anchor bolts
ter
[Unit : mm]

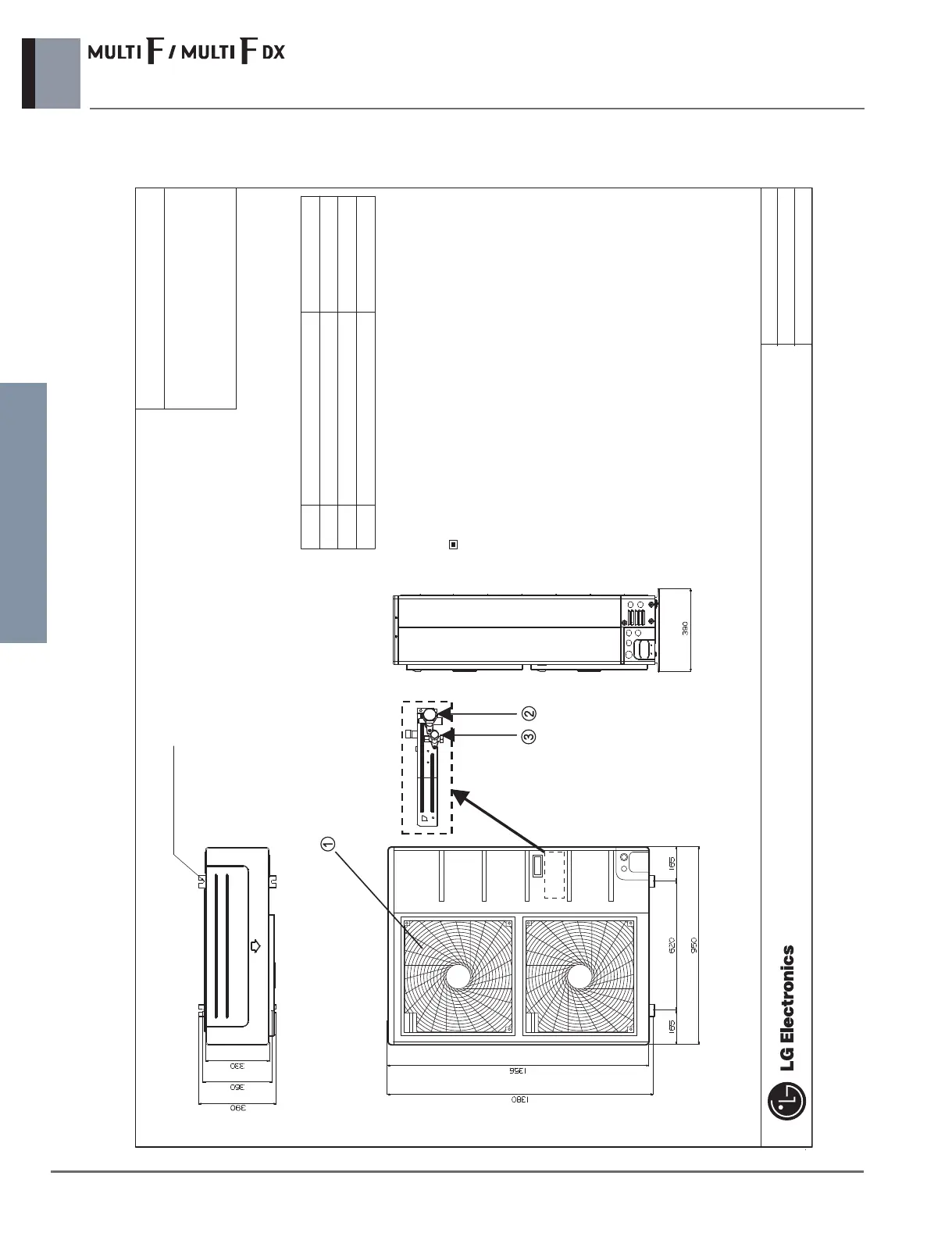

3.5 Dimensions
1) Outdoor units
