Heat Pump
50Hz/R410A _ 39
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
[Unit : mm]
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
www.lge.com/airconditioner
CHASSIS CODE: OU4

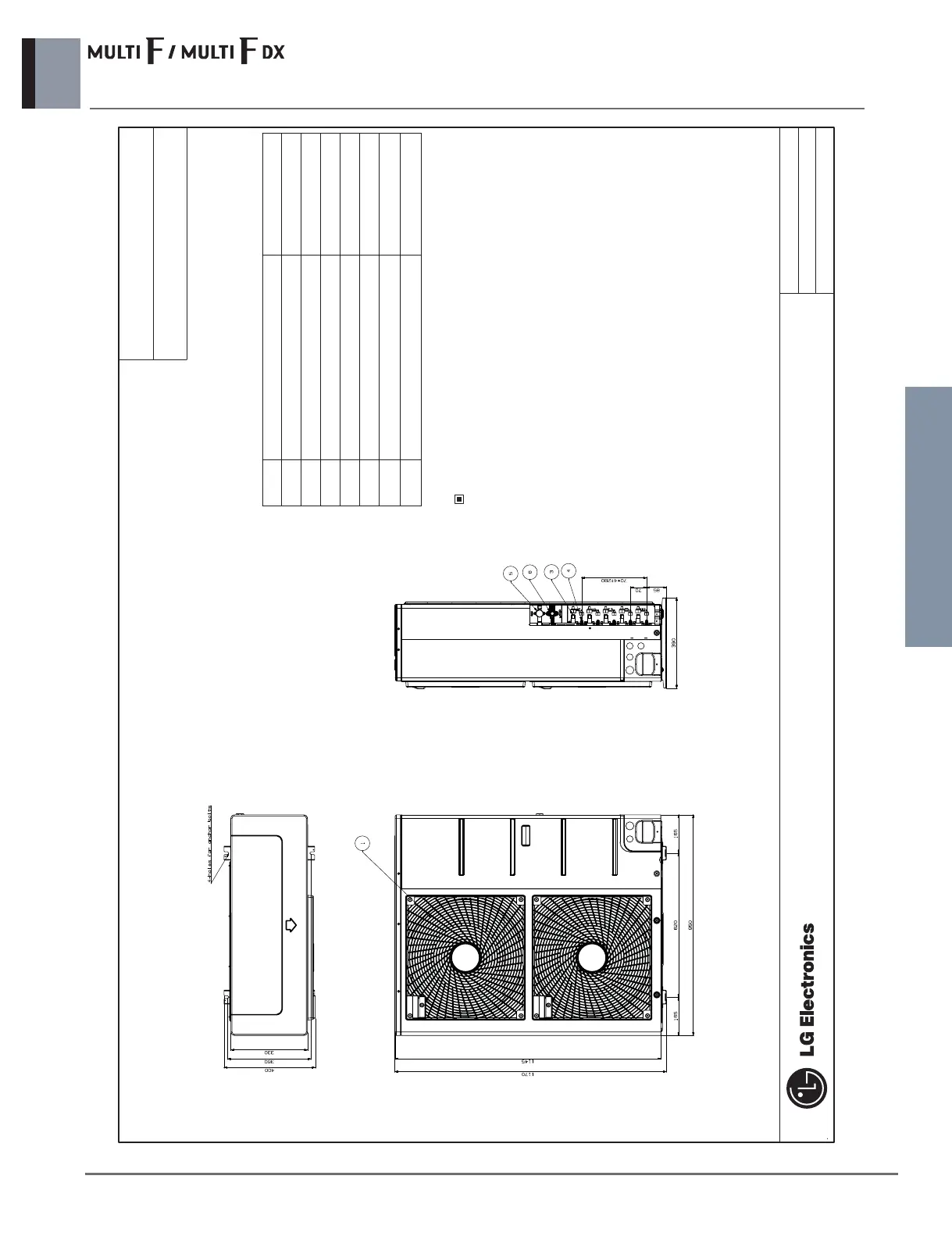

OUTDOOR UNIT
A5UW40GFA0 [MU5M40 UO2]
Gas pipe connection
Part Name
Air discharge grille
Liquid pipe connection
Earth screw
Power & transmission connection
5
No.
2
4
3
1
Remark
Note
Main service valve(Liquid)
Main service valve(Gas)
6
7
1. Unit should be installed in compliance with the installation manual in
the product box.
2. Unit should be grounded in accordance with the local regulations or
applicable national codes.
3. All electrical components and materials to be supplied on the site
must comply with the local regulations or international codes.
4. Electrical characteristics chapter should be considered for electrical
work and design. Especially the capacity of power cable and circuit
breaker for outdoor unit should be more than that of electrical
characteristics chapter.
5. When pumping down the system, use main service valve.
When you are installing the system, not used valve should be closed
by cap that equipped from factory.
