GENERAL DATA
0XOWL)2XWGRRU8QLW'LPHQVLRQV

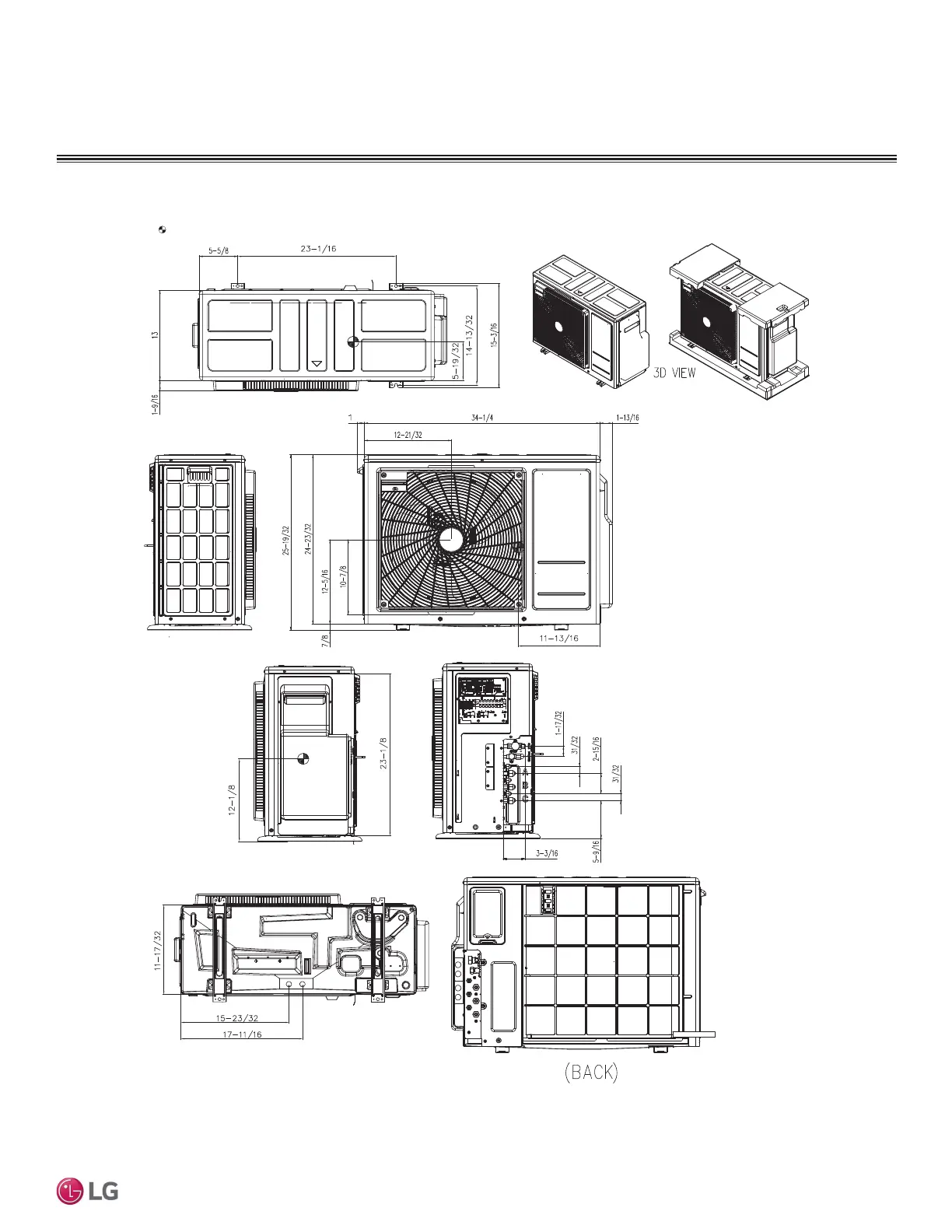

Figure 1: LMU183HV and LMU243HV Multi F Outdoor Unit External Dimensions.
Unit: Inch
Gravity point
1. Unit must be installed in compliance with the installation manual.
2. Unit must be grounded in accordance with the local or state regulations and applicable national codes.
3.
All field-supplied electrical components and materials must
comply with the local, state, and national codes.
4. Electrical characteristics must be considered for electrical work and design. The capacity of power cable and circuit
breaker for the outdoor unit must follow local, state, national, and manufacturer requirements.
Notes:
5. For LMU183HV Unit, ports A and B are available.
6. For LMU243HV Unit, ports A, B, and C are available.
