MULTI F / MULTI F MAX Outdoor Unit Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL DATA
0XOWL)2XWGRRU8QLW'LPHQVLRQV

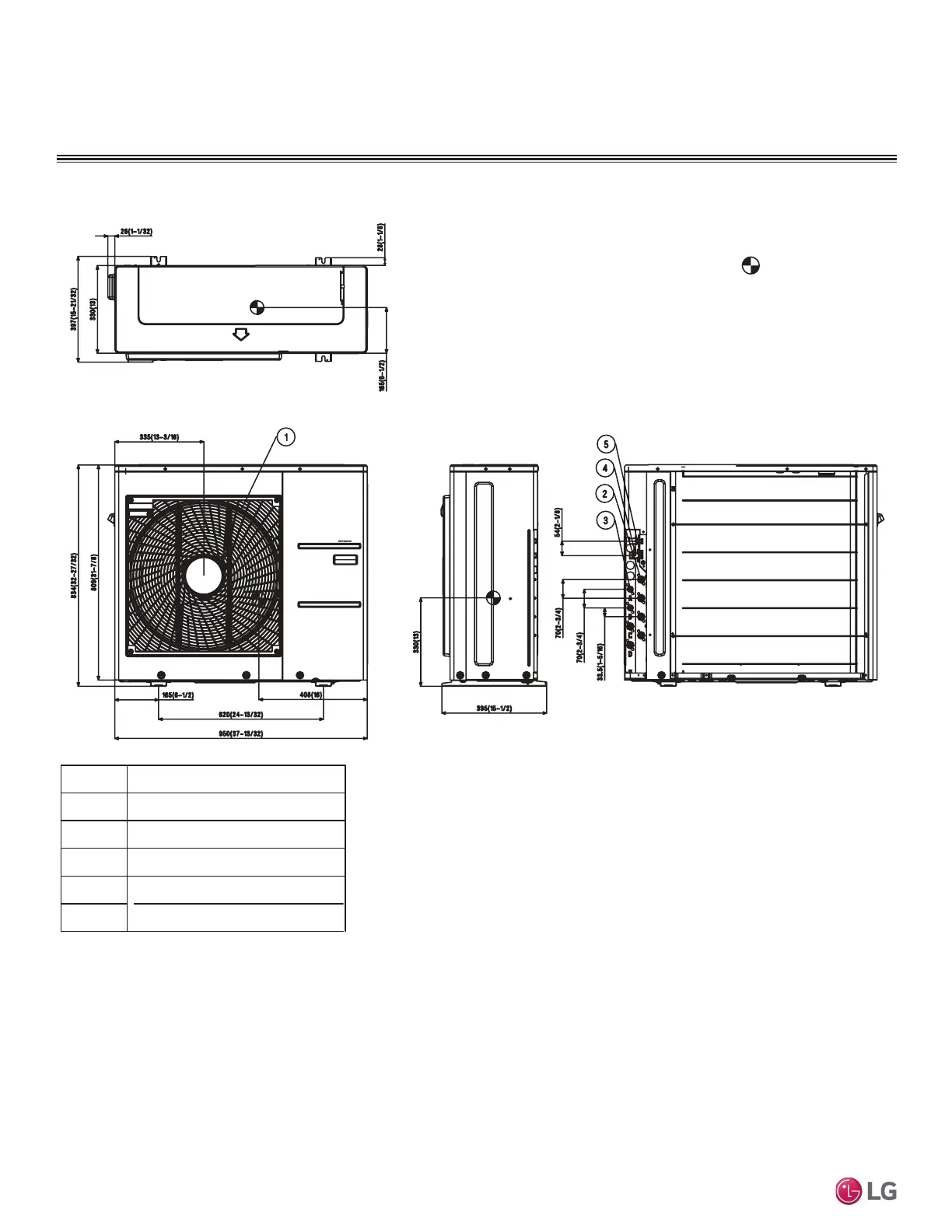

Figure 2: LMU303HV and LMU363HV Multi F Outdoor Unit External Dimensions.
Vapor pipe connection
Part Name
Air discharge grille
Liquid pipe connection
Main service valve (Vapor)
Main service valve (Liquid)
5
No.
2
4
3
1
[Unit : mm(inch)]
Gravity point
1. Unit must be installed in compliance with the installation manual.
2. Unit must be grounded in accordance with the local or state
regulations and applicable national codes.
3. All field-supplied electrical components and materials must comply
with local, state, and national codes.
4. Electrical characteristics must be considered for electrical
work and design. The capacity of power cable and circuit
breaker for the outdoor unit must follow local, state, national,
and manufacturer requirements.
Notes:
To Next Page
