MULTI F / MULTI F MAX Outdoor Unit Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Minimum 12"
Minimum 20"
Minimum 40"
Minimum 12"
Maximum 20"
Minimum 12"
Minimum 40"
Minimum 24"
Obstacles above and on the air intake side. Obstacles above, on the air intake side,
and on both left and right sides
Minimum 20"
Minimum 20"
Minimum 20"
Minimum 40"
Obstacle just on the
air discharge side.
Obstacles above and on the
air discharge side.

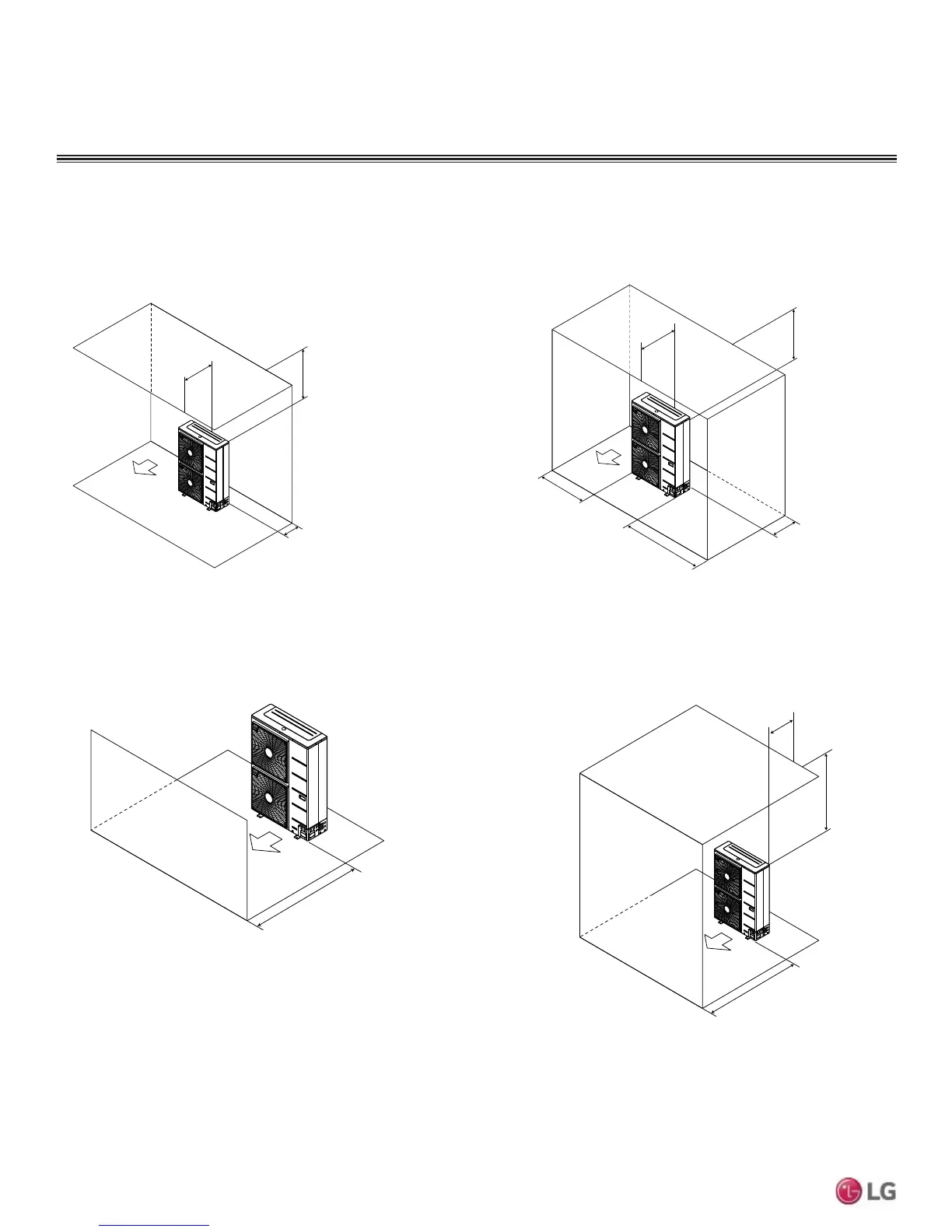

Clearance Requirements when Different Obstacles are Present, continued. (Unit: Inch)
Allowable Clearances for Outdoor Unit
GENERAL INSTALLATION GUIDELINES
