Self Diagnosis Functions

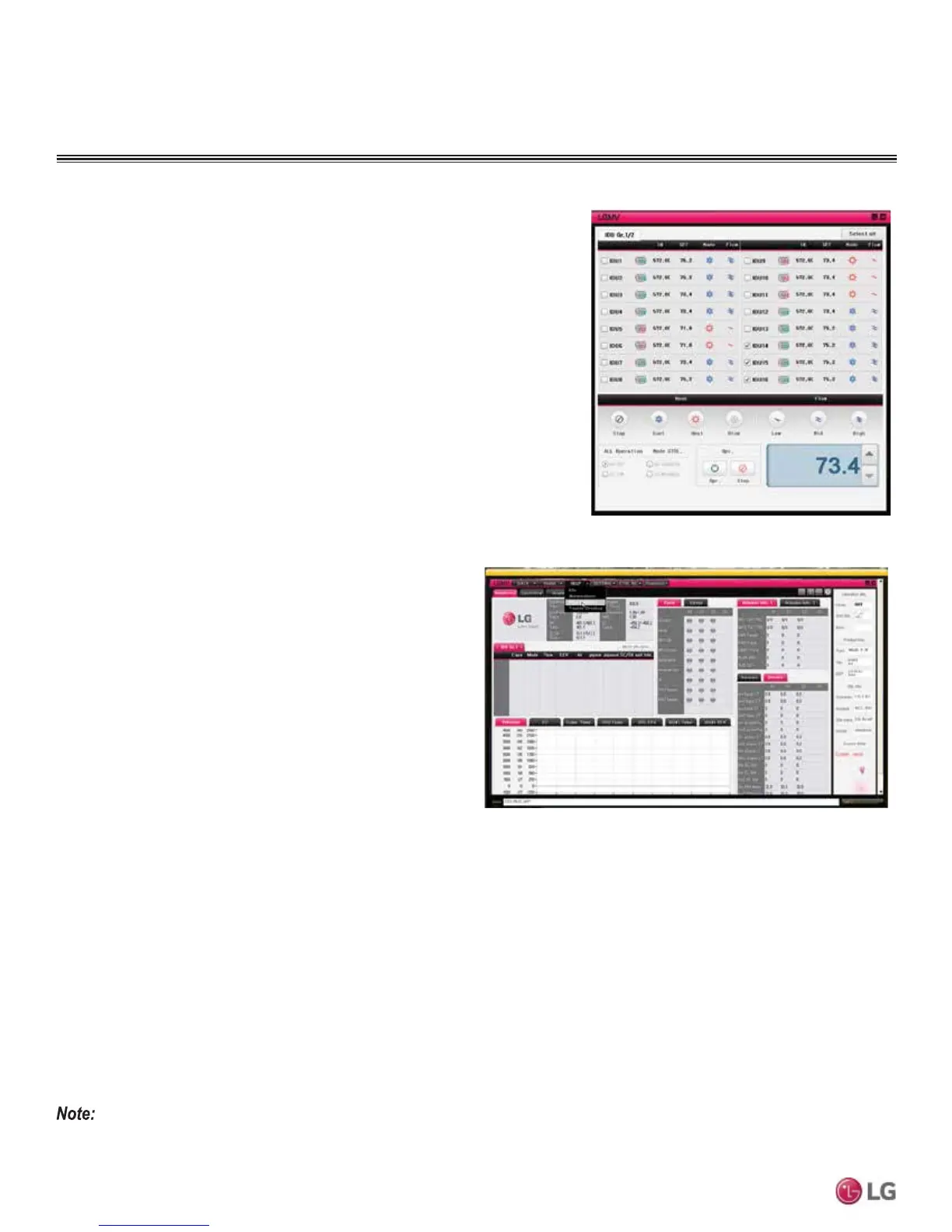

Figure 99: MV Control Indoor Units Screen
The software is available in a high version with all of the features listed above. The low version has all features as the high version without
Target High Pressure and Target Low Pressure values shown on main screen.
In lieu of connecting to the outdoor unit, user has the option to connect to IDU with the use of a USB to RS-485 connector kit. When connect-
ed through IDU, user will not be able to record data.
This software can be used to both commission new systems and troubleshoot existing systems. LGMV data can be recorded to a “.CSV” file
and emailed to an LG representative to assist with diagnostic evaluations.
Recommended Minimum PC Configuration:
Error Codes
LGMV software helps the service technician or commissioning agent
to troubleshoot system operation issues by displaying malfunction
codes (Figure 100). These error codes can be seen on the main
screen of the LGMV software program. For an overview of Multi F
/ Multi F MAX system error codes, see Error Codes section. For
detailed information on how to troubleshoot individual error codes,
see the Multi F / Multi F MAX Service Manual.
Figure 100: Error Code Screen
,PDJHVRQWKHVHSDJHVDUHH[DPSOHVRI/*09VFUHHQVKRWV$FWXDOLPDJHVPD\GLIIHUGHSHQGLQJRQWKHYHUVLRQRIWKHVRIWZDUHDQGWKHXQLWV
installed.
• CPU: Pentium
®
IV 1.6 GHz
• Main Memory: 1G
• Operating System: Windows
®
XP/Vista/7 32 bit (recommended),
64 bit
• Hard Disk: 600 MB when operating
• MS Office 2003, 2007 (recommended) for select reporting
functions
LG Monitoring View (LGMV) Diagnostic Software and Cable - Continued
5. Data (Figure 99)
• Data Saving Start: Recording of real time data to a separate file created to be
stored on the user’s computer.
• Data Loading Start: Recorded data from a saved “.CSV” file can be loaded to
create an LGMV session.
6. Monitoring
• Electrical: The lower half of main screen is changed to show Inverter
Compressor Amps, Volts, Power Hz, Inverter control board fan Hz.
