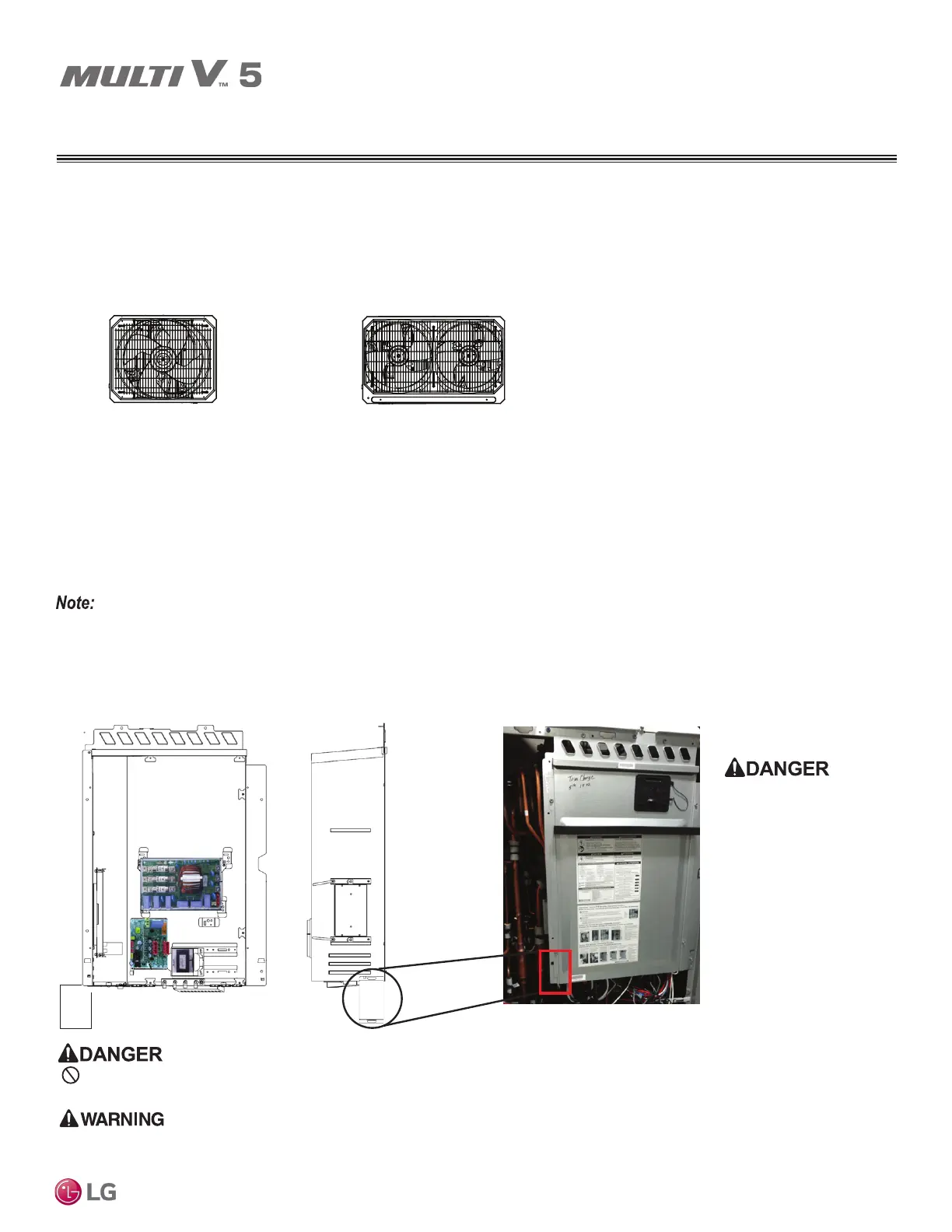

5. Remove outdoor unit front panel to access internal components.
6 Ton Control Box access
Rear
Top view
Right Right
Left
Left
Rear
Front Front
Top view
8 - 20 Ton Control Box access
6. After removing the outdoor unit front panel to access internal components, attach the Contact Box Cover as shown below to the outdoor
unit control box.
Attach on the right hand side of the unit control box for the 6 Ton ODU.
Attach on the left hand side of the control box for 8 - 20 Ton ODU.
Use two of the self-drilling #8, ½” screws in the installation kit.
Remove the Contactor Mounting Plate Subassembly from the Contactor Box Cover rst.
6 Ton Multi V 5 Outdoor Unit
Front view Side view Control box front view
Step 5
Figure 11: Multi V 5 ODU Front Panel.
Step 6
Figure 12: Attach contact box cover for 6.0 Ton Multi V 5 ODU unit.
DRAIN PAN HEATER INSTALLATION
Do not damage the electrical components inside the oudoor unit control box when drilling screws.
Damaged wiring runs the risk of re, electric shock, and physical injury or death.
Turn off power to outdoor unit before installation.
Electric shock can cause physical injury or death.
Verify the wires are
routed such that they
do not get pinched,
placed in tension or
rub against any sharp,
metal edge prior to
securing.
Damaged wiring runs the
risk of re, electric shock,
and physical injury or death.
