MULTI V 5 Outdoor Unit Drain Pan Heater Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
8 - 20 Ton Multi V 5 Outdoor Unit
Front viewSide view
Control box front view

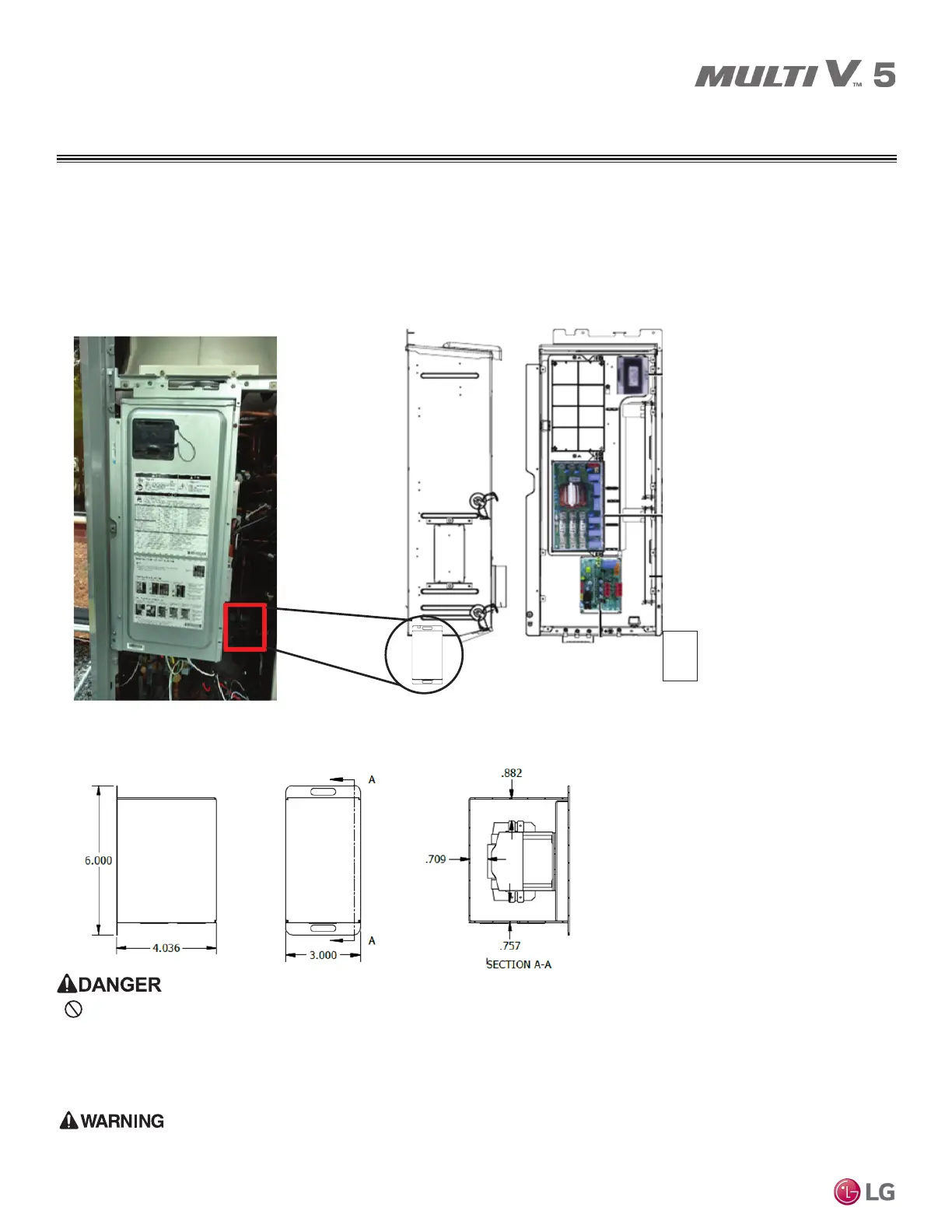

Figure 13: Attach contact box cover for 8 - 20 Ton Multi V 5 ODU unit.
Step 6, continued
Attach on the left hand side of the control box for 8.0 - 20.0 Ton ODU.
Contactor Box Cover
Figure 14: Contactor box cover.
DRAIN PAN HEATER INSTALLATION
Do not damage the electrical components inside the oudoor unit control box when drilling screws.
Damaged wiring runs the risk of re, electric shock, and physical injury or death.
Verify the wires are routed such that they do not get pinched, placed in tension or rub against any sharp, metal edge prior to
securing.
Damaged wiring runs the risk of re, electric shock, and physical injury or death.
Turn off power to outdoor unit before installation.
Electric shock can cause physical injury or death.
