7. Insert the plastic bushings (field supplied) into the holes in the bottom of the Contactor Mounting Plate Subassembly and run all power
and control wiring through the knockouts. See figure below.
Contactor mounting plate subassembly is only removable at the bottom. Contactor box mounting cover is designed to prevent water from
reaching the electrical components inside.
ALL wiring to the contactor MUST come out of the bottom
5/8” diameter holes. Use plastic bushings supplied with the
drain pan heater kit to protect wiring from sharp metal edges.

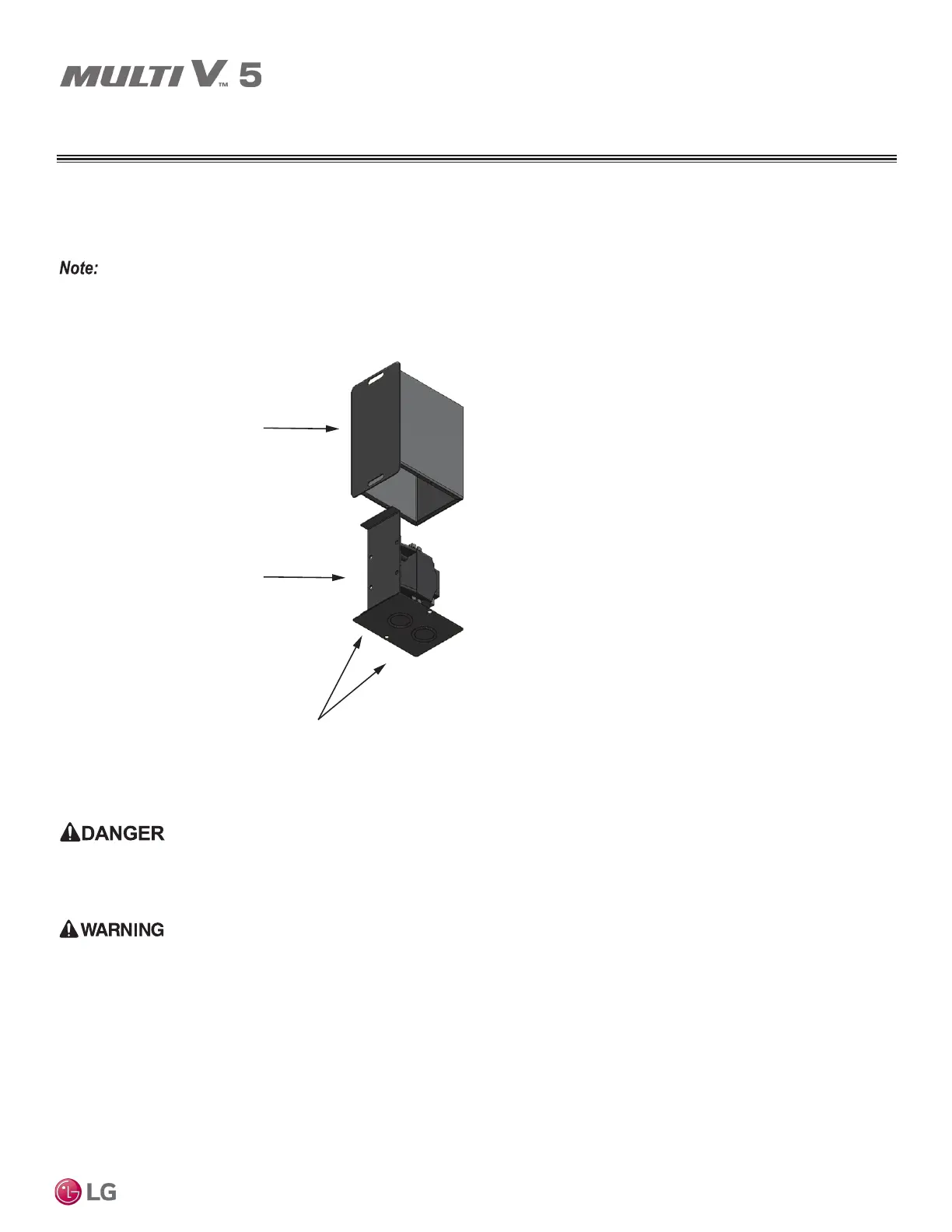

Contactor mounting
plate assembly.
Contactor box cover.
Step 7
Figure 15: Contactor box cover and mounting plate subassembly
DRAIN PAN HEATER INSTALLATION
Turn off power to outdoor unit before installation.
Electric shock can cause physical injury or death.
Verify the wires are routed such that they do not get pinched, placed in tension or rub against any sharp, metal edge prior to
securing.
Damaged wiring runs the risk of re, electric shock, and physical injury or death.

LG Multi V 5 Specifications

General

Type	VRF (Variable Refrigerant Flow)
Refrigerant	R410A
Compressor Type	Inverter Scroll Compressor
Outdoor Unit Fan Type	Axial Fan
Cooling Capacity	22.4 kW to 270 kW
Energy Efficiency	High
Operating Range	Cooling: -5°C to 48°C
Power Supply	380-415V, 50/60Hz
Heat Exchanger Type	Microchannel
Control Type	Centralized Control
Indoor Unit Options	Cassette, Wall Mounted, Ducted
Heat Recovery	Available
Warranty	Varies by region (typically 5 years compressor, 1-2 years parts)
