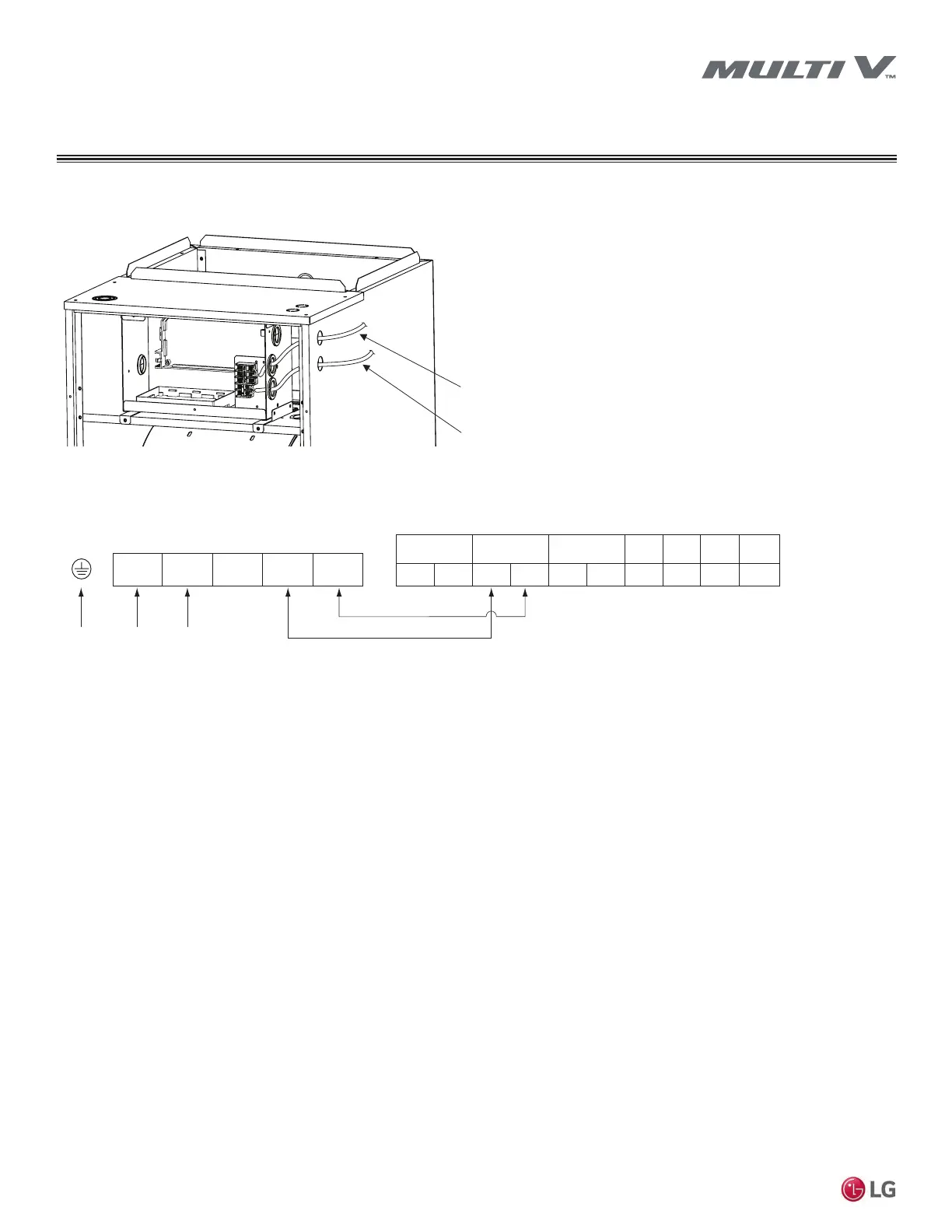

Figure 66: Location of Power Wiring and Communications Cable Terminals in the Vertical/Horizontal Air Handler Unit
Power Wiring Through
Optional Access Hole
Communication Cable Through
Optional Access Hole
3(A) 4(B)
Indoor Unit Terminal Block
Power Input
208-230V /
60 Hz / 1 Phase
Ground
L(L1)N(L2)
A------ABB
GND12V
DRY2DRY1
INTERNETIDUSODU
Outdoor Unit Terminal Block
Figure 67: Terminal Block in the Vertical / Horizontal Air Handler Units
WIRING
Indoor Unit Communication Cable Connections
