LG Multi V ARNU283M3A4 - Mid-Static and High-Static Ducted M3 Chassis

71
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING
Mid-Static and High-Static Ducted M3 Chassis

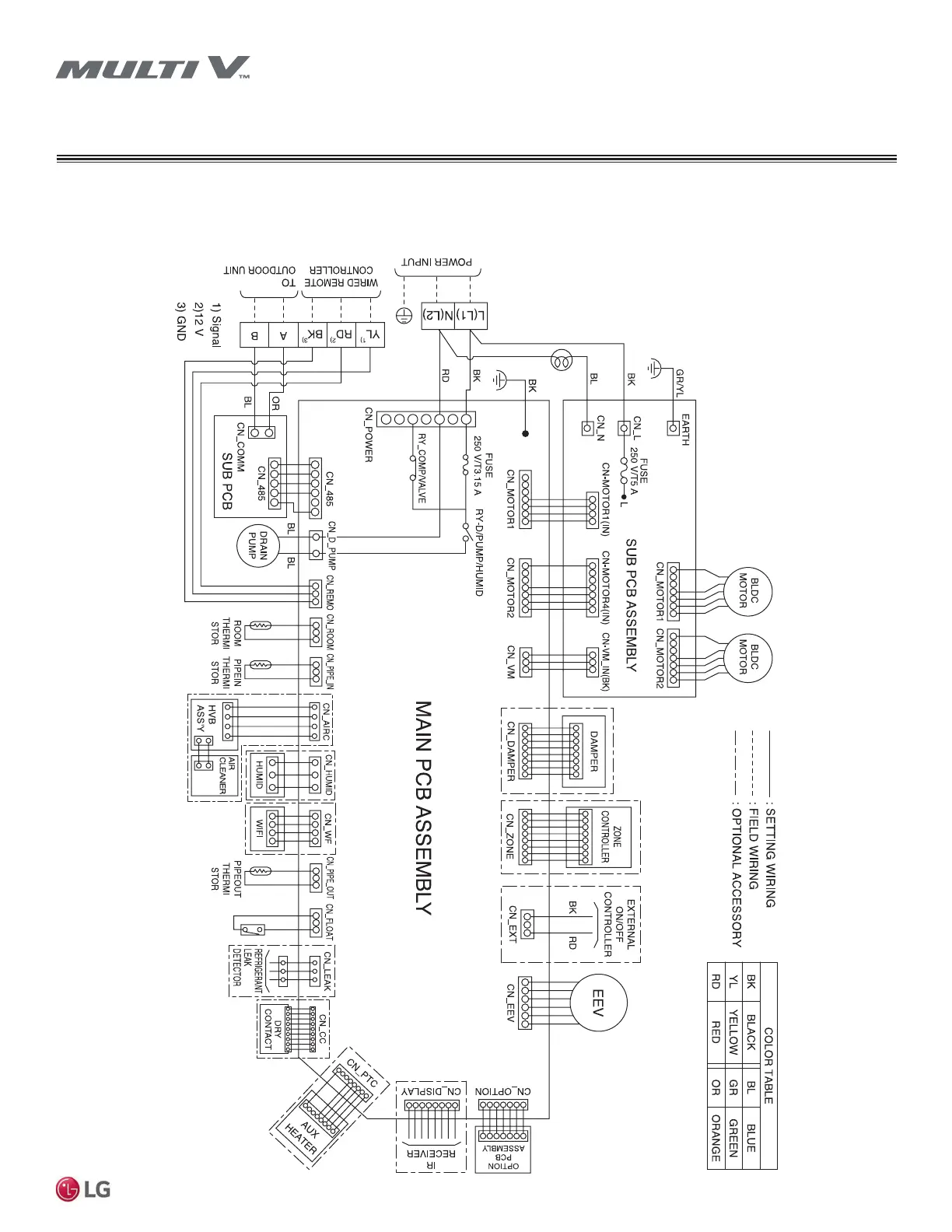

Figure 71: Mid-Static and High-Static Ducted M3 Chassis Wiring Diagram.
Optional Connections
Figure 71 shows the control board for the M3 chassis. Connect optional equipment to the control board as required for your system.
