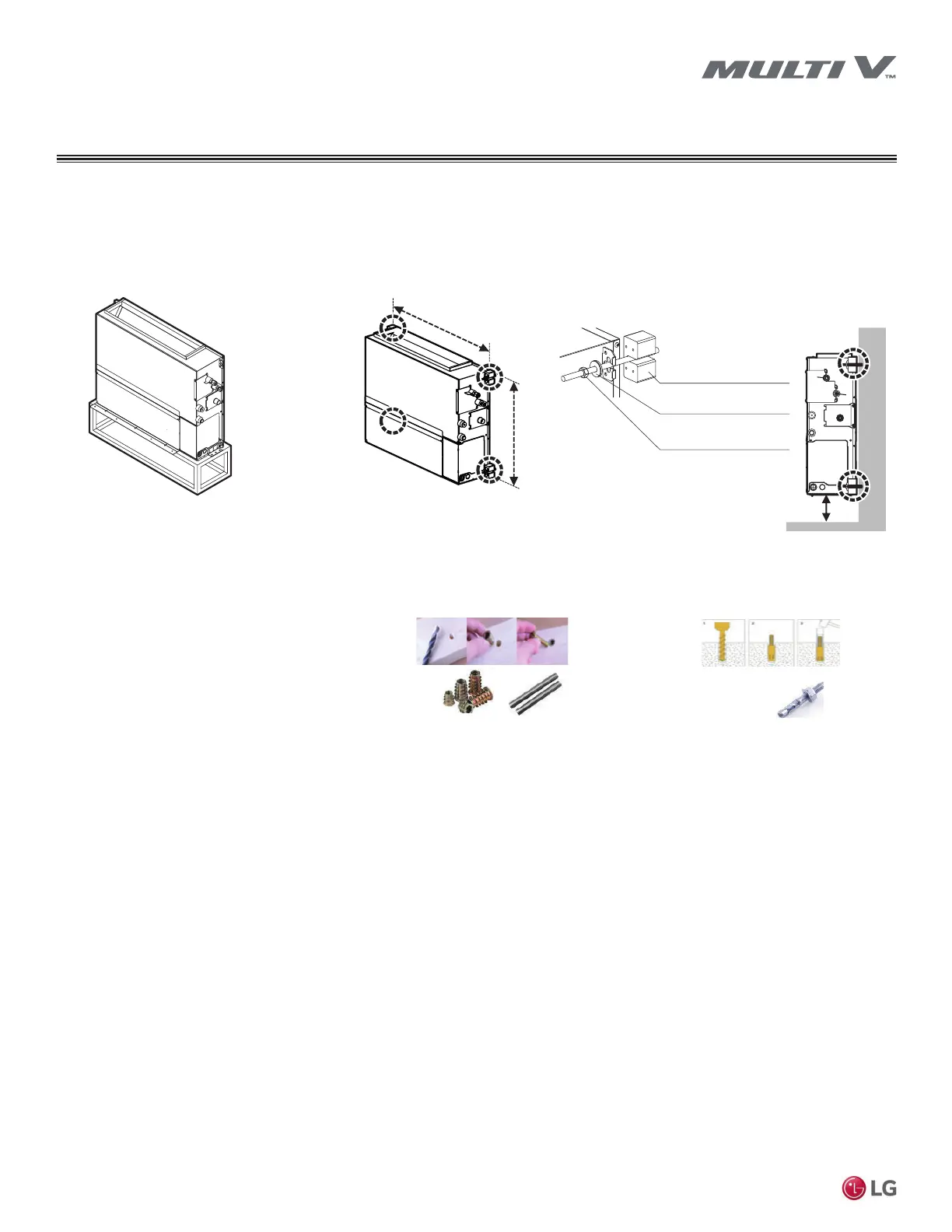

Vertical Installation for Convertible Mid Static Ducted Units (MA Chassis Only)
Vertical Indoor Unit Installation (For Convertible Mid Static Ducted Units MA
Chassis Only)
Option 1. Floor Installation
Platform (Field Supplied)
36-3/4 (933)
24-3/8 (619)
>11-13/16 (300)
Wall
Rubber Bushing x 4
Washer x 4
For Wood Walls For Concrete Walls
(Field Supplied)
Wood Insert Nuts
Bolts (M10 / L100 Four [4] Each)
Anchor Bolts
(M10 / L100, Four [4] Each)
Option 2. Wall Installation
Unit: Inch (mm)
Nut x 4
Note:

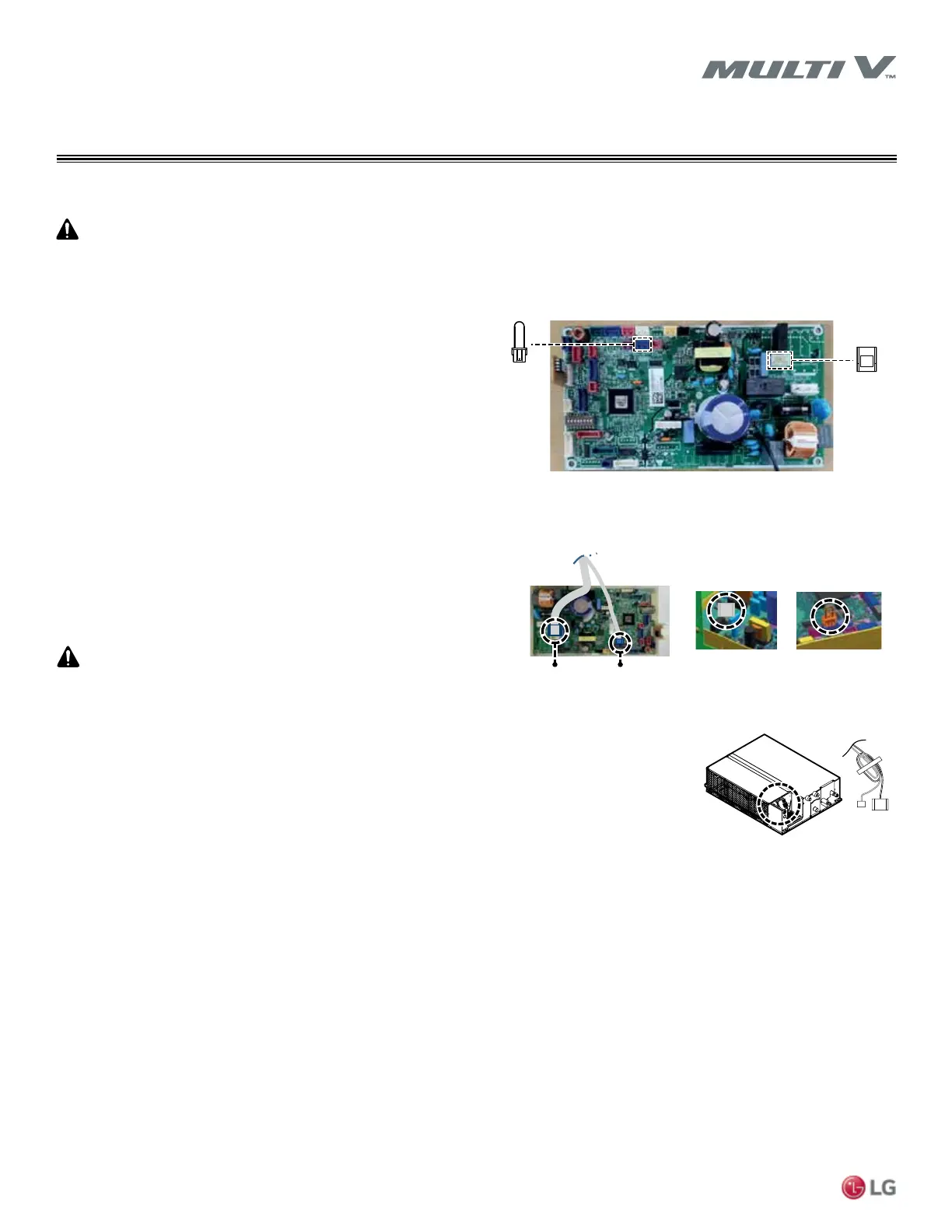

See also the Vertical Conversion Kit Installa-
tion, Vertical Installation Conversion Kit
Wiring, and Vertical Condensate Piping
pages later in this section.
