42
Multi V Ducted Indoor Units
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

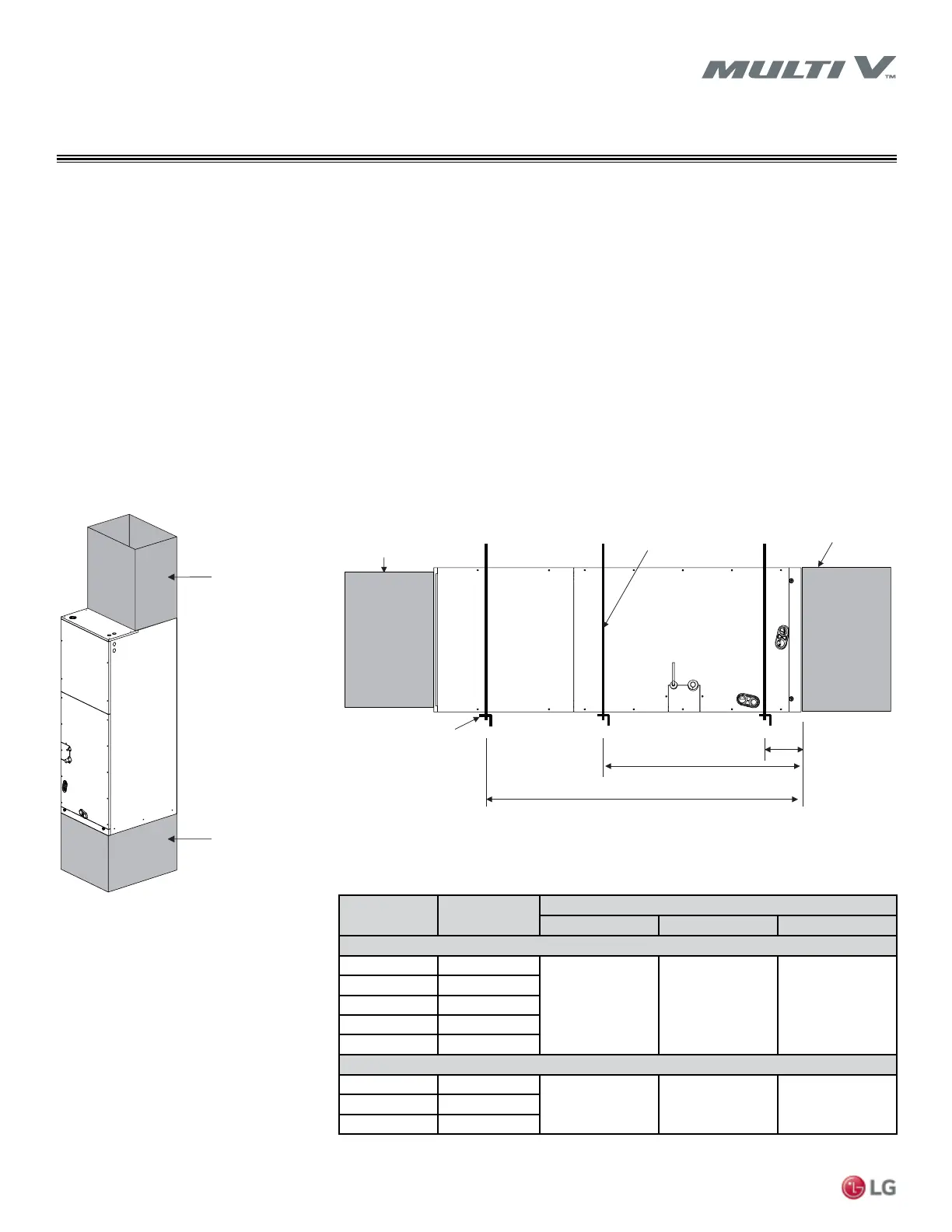

Vertical Installation for Convertible Mid Static Ducted Units (MA Chassis Only)
INSTALLATION
When installing / replacing / servicing, wear anti-static gloves to prevent
static electricity. Fire and electrical shock can cause physical injury or
death.

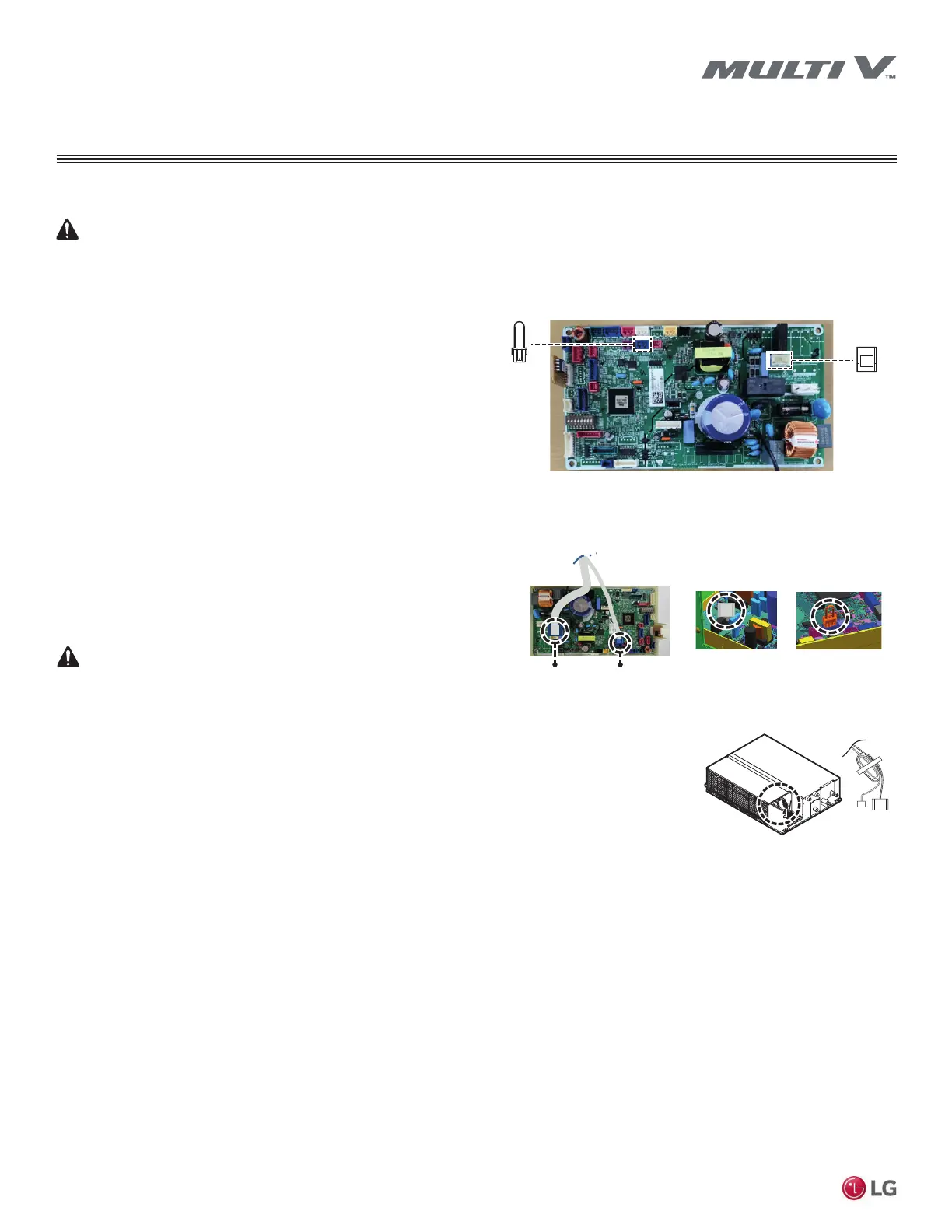

Figure 23: Vertical Installation Conversion Kit PCB Connections (Ap-
pearances May Vary).
Convertible Mid-Static Ducted Vertical Installation Conversion Kit Wiring
If the vertical installation conversion kit has been installed on the
mid-static ducted indoor unit, additional electrical work is required.
See the previous page.
Step 1.
Open the control box cover. Disconnect the wires on CN_D_PUMP
and CN_FLOAT on the mid-static ducted indoor unit PCB.
Step 2.
Connect terminals for CN_D_PUMP (white) and CN_FLOAT (blue)
(factory-provided accessories included with the conversion kit) as
shown in the image at right.
Step 3.
Coil up and tie any extra wiring and close control box cover.
DANGER
When installing / replacing / servicing, wear anti-static gloves to prevent static electricity. Fire and electrical shock can cause physical injury or death.
CN_FLOAT
CN_D_PUMP
Figure 24: Vertical Installation Conversion Kit Wiring Connection Proce-
dures (Connection Appearances May Vary)..
Terminal (Blue)
Connect Terminal
for CN_D_PUMP
Terminal (White)
Connect Terminal
for CN_FLOAT
CN_D_PUMP CN_FLOAT
Step 2.
Step 3..
DANGER
