Installation
ENGLISH
Installation Manual 19
1. Use the heat insulation material for the refrigerant piping which has an excellent heat-resistance
(over 248°F).
2. Precautions in high humidity circumstance:
This air conditioner has been tested according to the
"ISO Conditions with Mist" and confirmed that there is
not any default. However, if it is operated for a long
time in high humid atmosphere (dew point tempera-
ture: more than 73°F), water drops are liable to fall. In
this case, add heat insulation material according to the
following procedure:
• Heat insulation material to be prepared... EPDM
(Ethylene Propylene Diene Methylene)-over 248°F
the heat-resistance temperature.
• Add the insulation over 10mm thickness at high humidity environment.

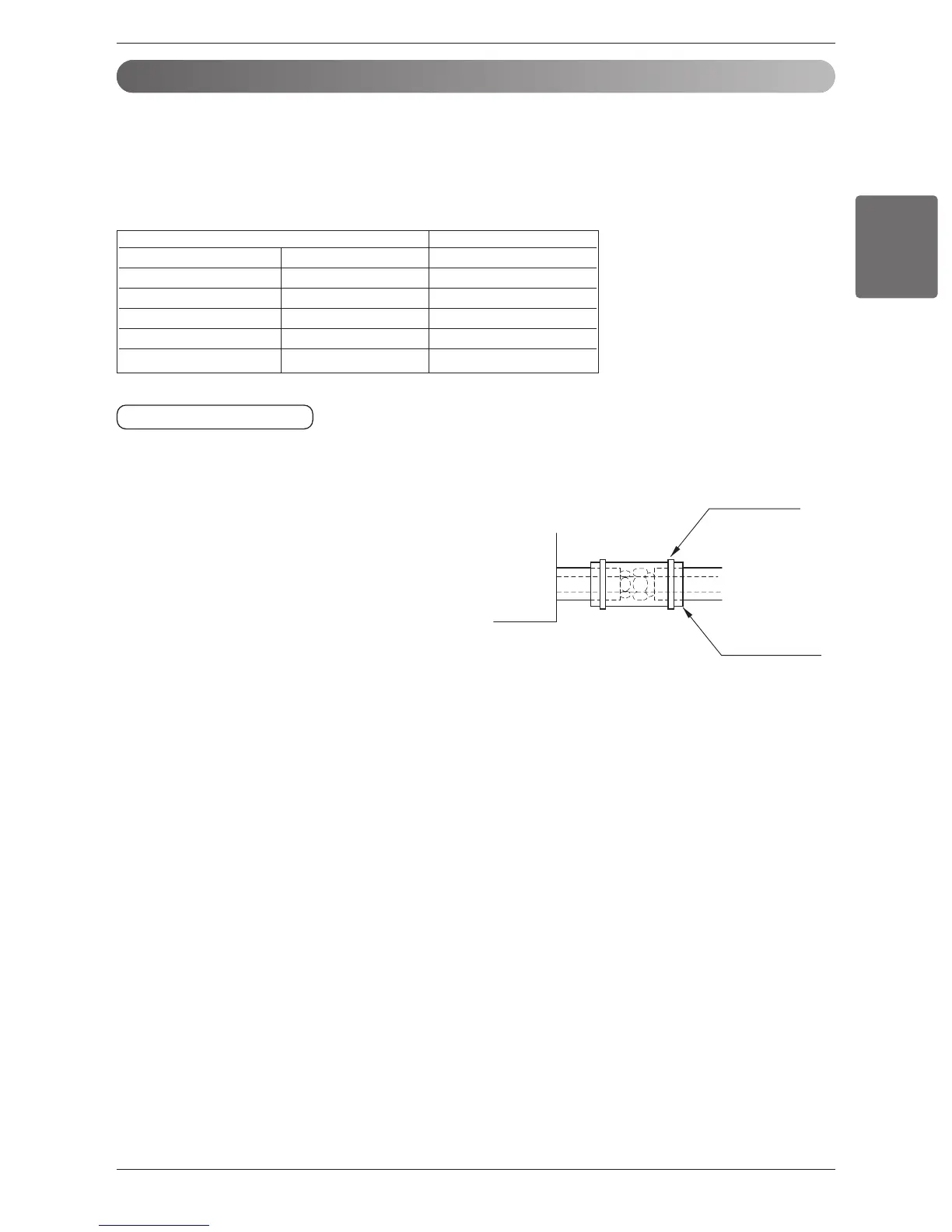

Indoor unit
Thermal insulator
(accessory)
Fastening band
(accessory)
Refrigerant piping
HEAT INSULATION
1. Remove the cap and turn the valve clockwise with the hexagon wrench.
2. Securely tighten the valve until the shaft contacts the main body seal.
3. Make sure to tighten the cap securely.
* For the tightening torque, refer to the table on the below.
Tightening torque
Outside diameter Torque
mm inch N
.
m(kgf•cm)
Ø6.35 1/4 18~25(180~250)
Ø9.52 3/8 34~42(340~420)
Ø12.7 1/2 55~66(550~660)
Ø15.88 5/8 63~82(630~820)
Ø19.05 3/4 99~121(990~1210)
Closing shutoff valve
