TRANSPORTING / LIFTING
Transporting / Lifting Water Source Unit(s)
When lifting the unit, use lifting straps and place around the unit as shown.
• Always lift the unit using properly sized lifting straps rated to carry the unit weight.
• Ensure the straps are long enough to maintain a maximum of a 40° angle as shown.
• Use appropriate moving equipment to transport each frame; ensure the equipment is capable of supporting the weights listed above. If the
equipment is not properly secured, it may result in an accident that causes physical injury or death.
• Wear protective gloves when handling equipment. Sharp edges may cause personal injury.
• Some products include polypropylene bands around the unit for packaging. Do not use polypropylene bands to lift the unit. There is a
risk of the product falling and causing physical injury.
• Tear apart and throw away plastic packaging bags so that children may not play with them and risk suffocation and death.
• Consider the unit’s center of gravity before lifting. Hoist the unit with the center of gravity centered among the lifting straps. There is a risk
of the product falling and causing physical injury.
• Lift the water source unit from the base at specified locations. Support the unit at a minimum of six (6) points to avoid slippage from the
rigging apparatus, and use a minimum of three (3) lifting straps. There is a risk of the product falling and causing physical injury.
• Use caution when using a forklift to transport an unpackaged unit. Do not drop the unit when carrying it with a forklift. There is a risk of
the product falling and causing physical injury.
Place a protective cloth or other soft material at the locations where the casing comes in contact with the lifting straps to prevent damage to painted
surfaces.

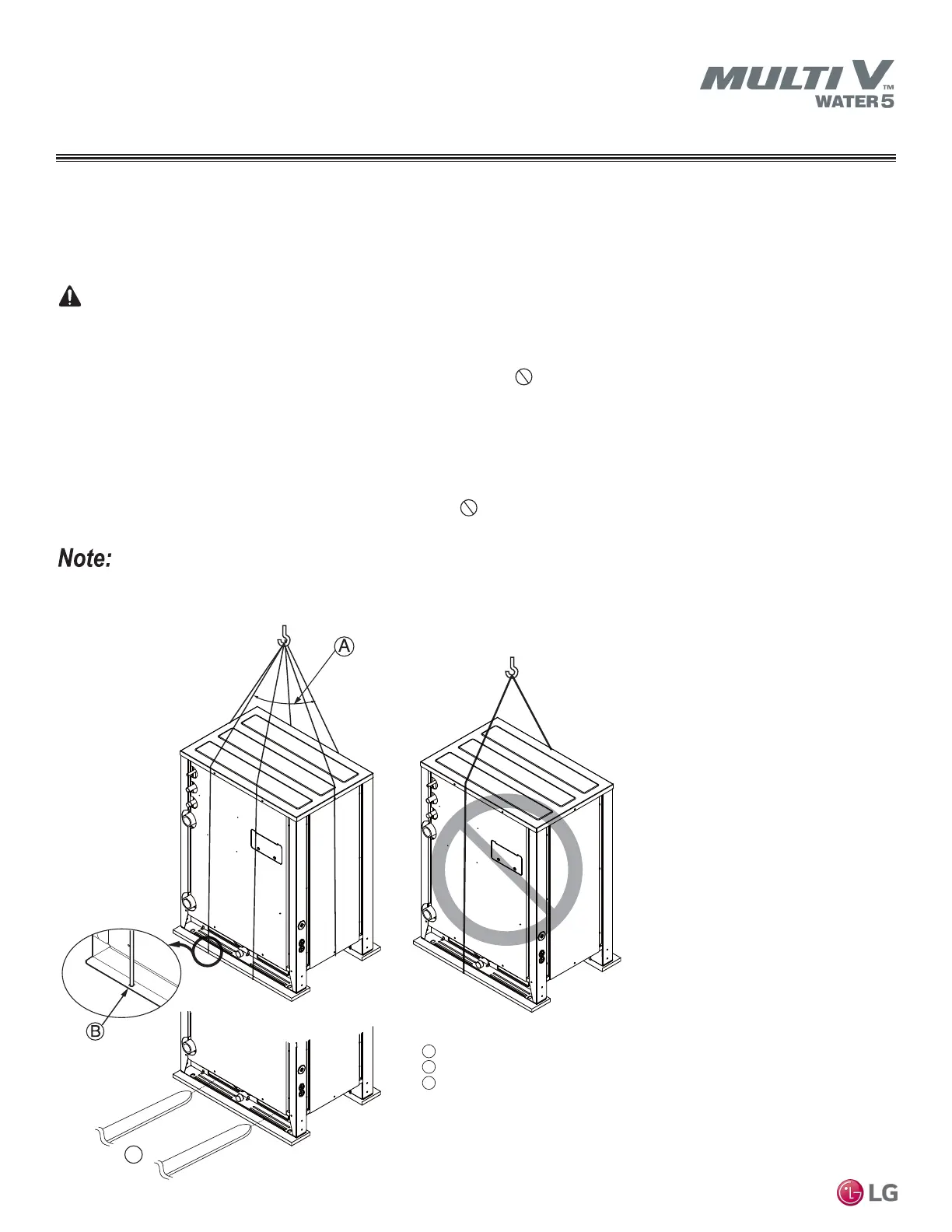

Figure 27: Moving requirements for water source units.
