82 | LIMITS / PLACEMENT
MULTI V Water 5 Source Unit Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.

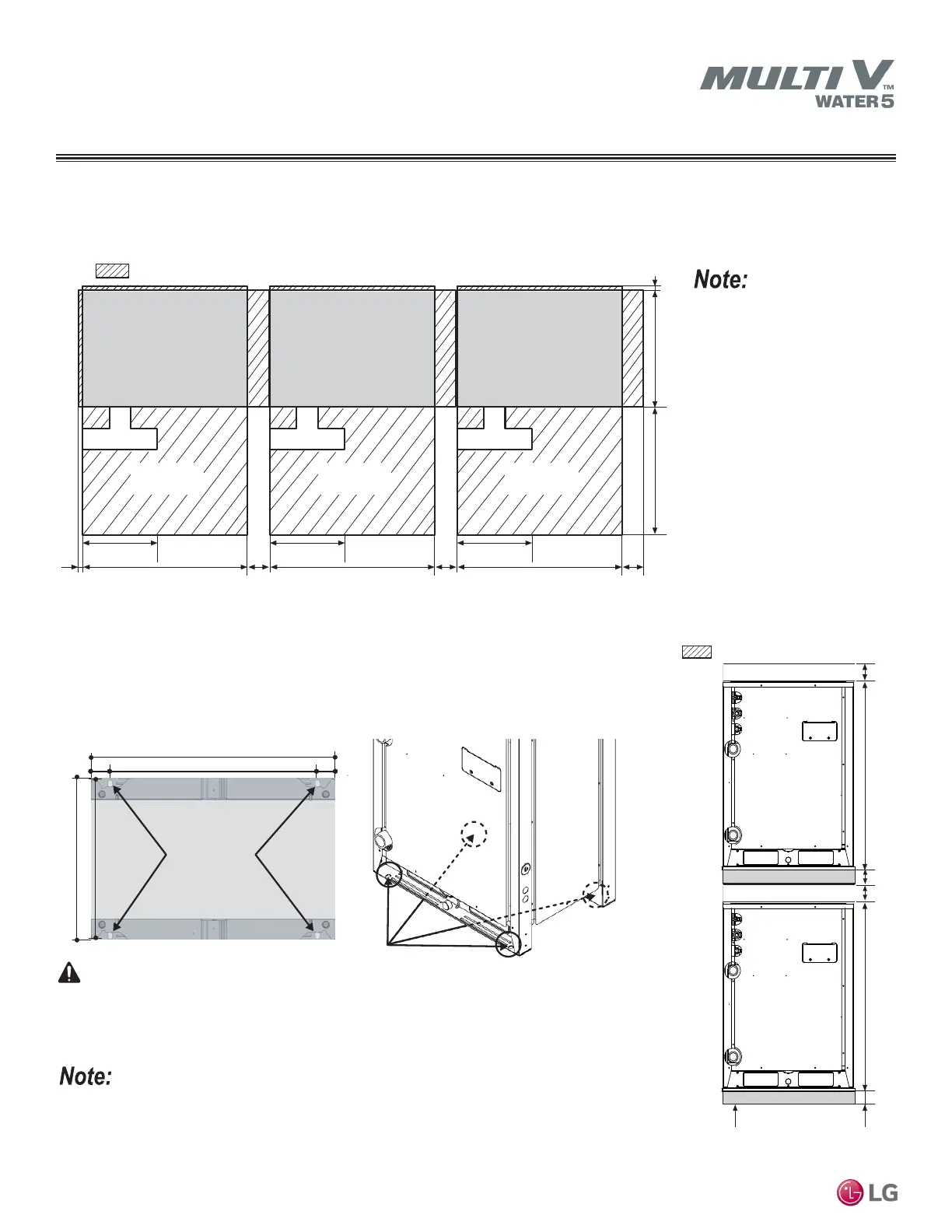

Stacked Frame Installation
Install stacked frame water source units as shown on right.
Anchor bolt locations
Anchor bolt locations for installing water source units are shown below.
Figure 30: Triple Frame Installation.
Figure 31: Anchor Bolt Locations.
Triple Frame Installation
Install triple frame water source units as shown. Anchor bolt locations for installing water source units are shown below.
Figure 32: Stacked Frame Installation.
INSTALLATION CONSIDERATIONS
Triple Frame and Stacked Frame Installation
• Consult with LG Electronics,
U.S.A., Inc. if the available
space is less than the space
shown in these figures.
• If water piping passes along the
side of a frame, ensure the in-
dicated space is available after
considering the space taken by
the piping.
• Ensure that the floor / chosen location has enough strength to support the weight of the unit(s). If it
does not have sufficient strength, the unit(s) may fall and cause physical injury or death.
• Water source units are not weatherproof. Always install water source units indoors. Failure to follow
this installation guideline can create an electrical hazard that can result in bodily injury or death.
• Ensure that the floor / chosen location has enough strength to support the weight of the unit(s). Failure
to follow this guideline could cause product malfunction or inefficient performance.
• Ensure that the floor / chosen location is waterproof. It must contain a liquid drainage system with a
slight slope to aid in liquid drainage. Failure to follow this guideline could cause product malfunction or
inefficient performance.
WARNING
<Top view>
Unit: inch
23-3/4
21-17/32
3/4
Water Source Unit
Service area
(Front)
Service area
(Front)
3/4
4
Service area
(Front)
3/4-3113-3/4
: Service area
Water Source UnitWater Source Unit
4
4
13-3/4
30- 13/32
30- 13/32 30- 13/32
H-Beam Support
Front View
Unit: inch
4
4
4
44-3/3244-3/32
: Service area
4 H-Beam Support
Space
2-7/32
2-7/32
26-3/32
23-5/8
30-1/2
22-23/32
Anchor Bolt Locations (4)
Unit: inch
Anchor Bolt
Locations (4)
