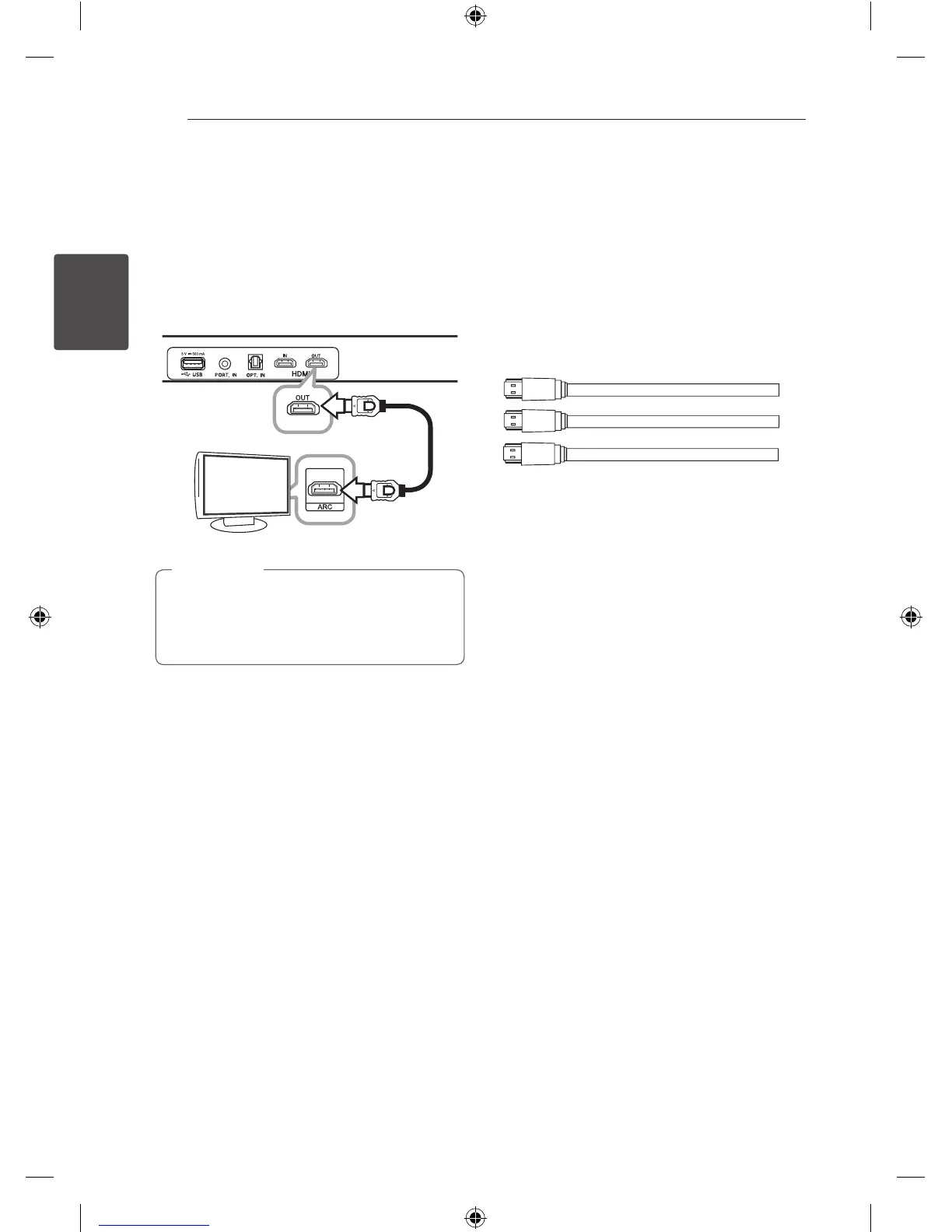

Connecting16
Connecting
2
Connecting with this unit and
TV using an HDMI cable
If you connect with this unit and TV that supports
HDMI CEC and ARC (Auto Return Channel) , you can
enjoy the TV sound through the speakers of this
unit without connecting optical cable.
HDMI cable
HDMI CEC (Consumer Electronic Control) :
With a single remote control is the ability to
operating.The CEC compatible devices (TV,
Sound Bar, Blu-ray player, etc.)
,
Note
HDMI cable Checklist
Some HDMI cables do not support the ARC
function, sound output can cause problems.
When connecting this unit and the TV is there no
sound or sound in the event of interruption and
noise, there is a problem with the HDMI cable.
Therefore connect with this unit and TV after check
whether the Type A, High speed HDMI TM Cable
with Ethernet.
STANDARD HDMI CABLE WITH ETHERNET
HIGH SPEED HDMI CABLE
HIGH SPEED HDMI CABLE WITH ETHERNET
(X)
(X)
(O)
Enjoy rich sound broadcast of
the channel by the sound bar
Connection through HDMI Cable
Your television that you own should support
the newest HDMI features (
1)
HDMI CEC / ARC
(Audio Return Channel)) to fully enjoy the Live
broadcasting channel with audio system through
a HDMI cable. Unless your TV support these HDMI
features, this audio system should be connected
through an OPTICAL cable instead of a HDMI cable
to your TV to enjoy the sound of TV channel.
1) HDMI CEC (High-Denition Multimedia Interface
Consumer Electronics Control)
Consumer Electronics Control (CEC) is an HDMI
feature designed to allow the user to command
and control the CEC-enabled devices, that are
connected through HDMI by using only one of
their remote controls.
※
Trade names for CEC are SimpLink G) , Anynet+
(Samsung), BRAVIA Sync (Sony), EasyLink (Philips),
etc.
NB4530A-NE_BGBRLLK_ENG_0510.indd 16 2013-10-30  12:30:35

LG NB4530A Specifications

General

Game mode	Yes
Audio decoders	Dolby Digital, DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Impedance	4 Ω
Tweeter diameter	13 mm
Soundbar speaker RMS power	160 W
Woofer diameter (imperial)	7 \
Signal-to-Noise Ratio (SNR)	80 dB
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wireless
Receiver included	No
Receiver type	Built-in
Docking connector type	-
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	1038 x 75 x 35.4 mm
Subwoofer dimensions (WxDxH)	221 x 281 x 351.5 mm
Product color	Black
Recommended usage	TV
Audio formats supported	LPCM, MP3, WMA
Consumer Electronics Control (CEC)	SimpLink
Bluetooth version	3.0+HS
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W

Weight and Dimensions

Soundbar weight	2300 g
Subwoofer weight	7320 g
