LG NS9740 - Connecting to Speakers; Attaching the High Channel Speakers to the Unit; Attaching the Low Channel Speakers to the Unit

Connecting
14
Connecting
2

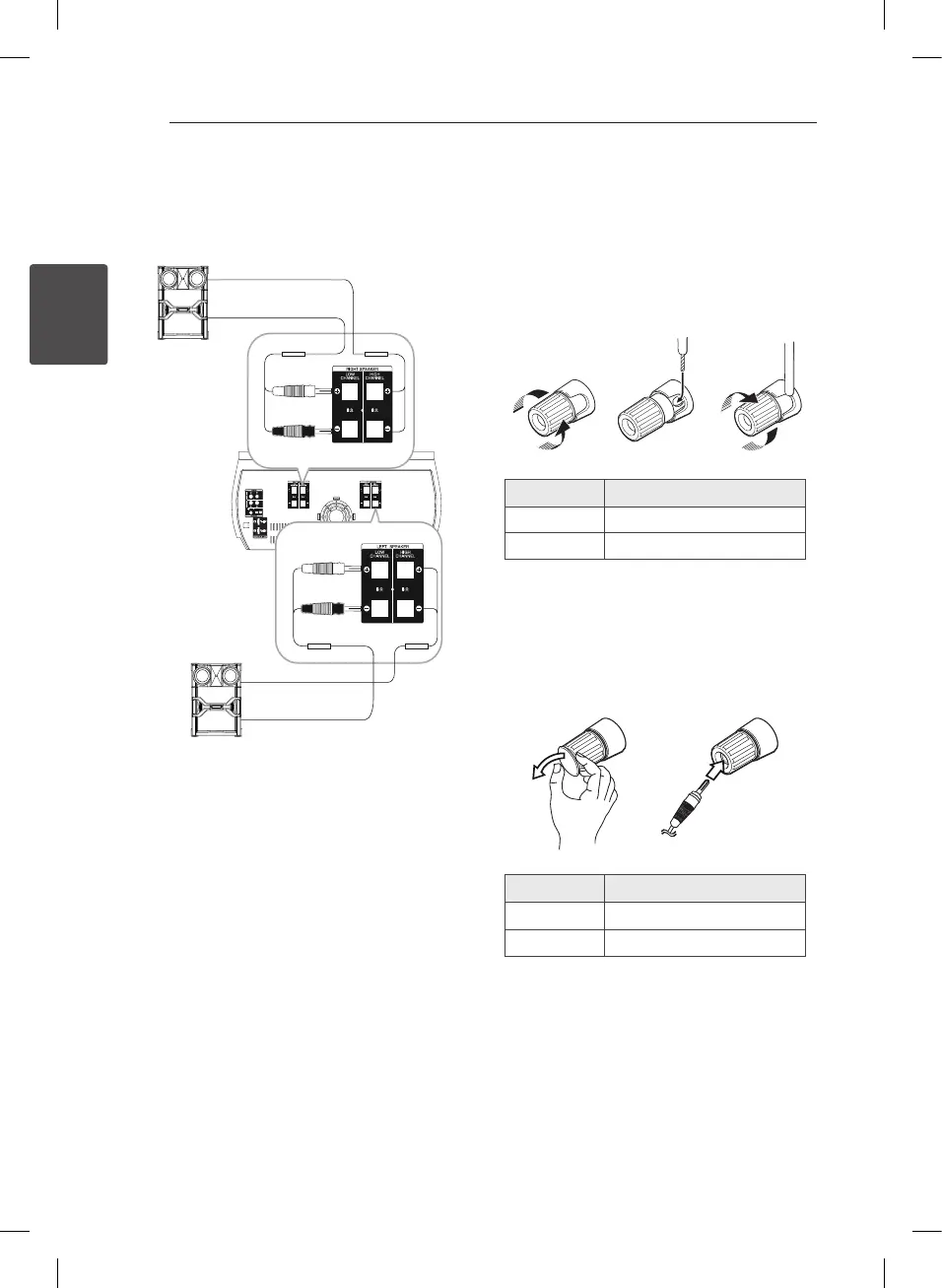

Connecting to speakers
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Speaker
cable
Banana
plug
Banana
plug
Speaker
cable
Attaching the high channel
speakers to the unit
1. Loosen the knob by turning it counterclockwise.
2. Insert the bare part of the wire into the hole in
side of each terminal.
3. Tighten the knob by turning it clockwise to
secure the wire.
Cable HIGH CHANNEL
Black stripe Connect to
3
Transparent Connect to
2
Attaching the low channel
speakers to the unit
1. Remove a protective cab.
2. Insert the banana plug into the corresponding
terminal.
Banana plug LOW CHANNEL
Black Connect to
3
Red Connect to
2
