LG OCF100 - Fixing Anchors and Screws; Installing the Wall Mounting Supporter

9
ENG
ENGLISH
INSTALLATION
4
Fixing Anchors and Screws
• Check the material of the wall and thickness of finishing material.
• You can use the anchors and screws provided with the TV set for the wall made with concrete,
lightweight concrete, soft fieldstone, hard fieldstone, brick or cellular block.
• Do not mount on the wall made with plaster board or medium density fibreboard (MDF). Otherwise, you must
fix the anchor screws to the retaining wall (concrete) inside the finishing material. If there is no retaining wall,
you must install a separate hanger first to fix the anchors and screws.
• When installing the product on the wall that is not specified in this manual, make sure that each fixing point
withstands an pullout load of 70 kgf (686 N) and a shearing load of 100 kgf (980 N) or more.

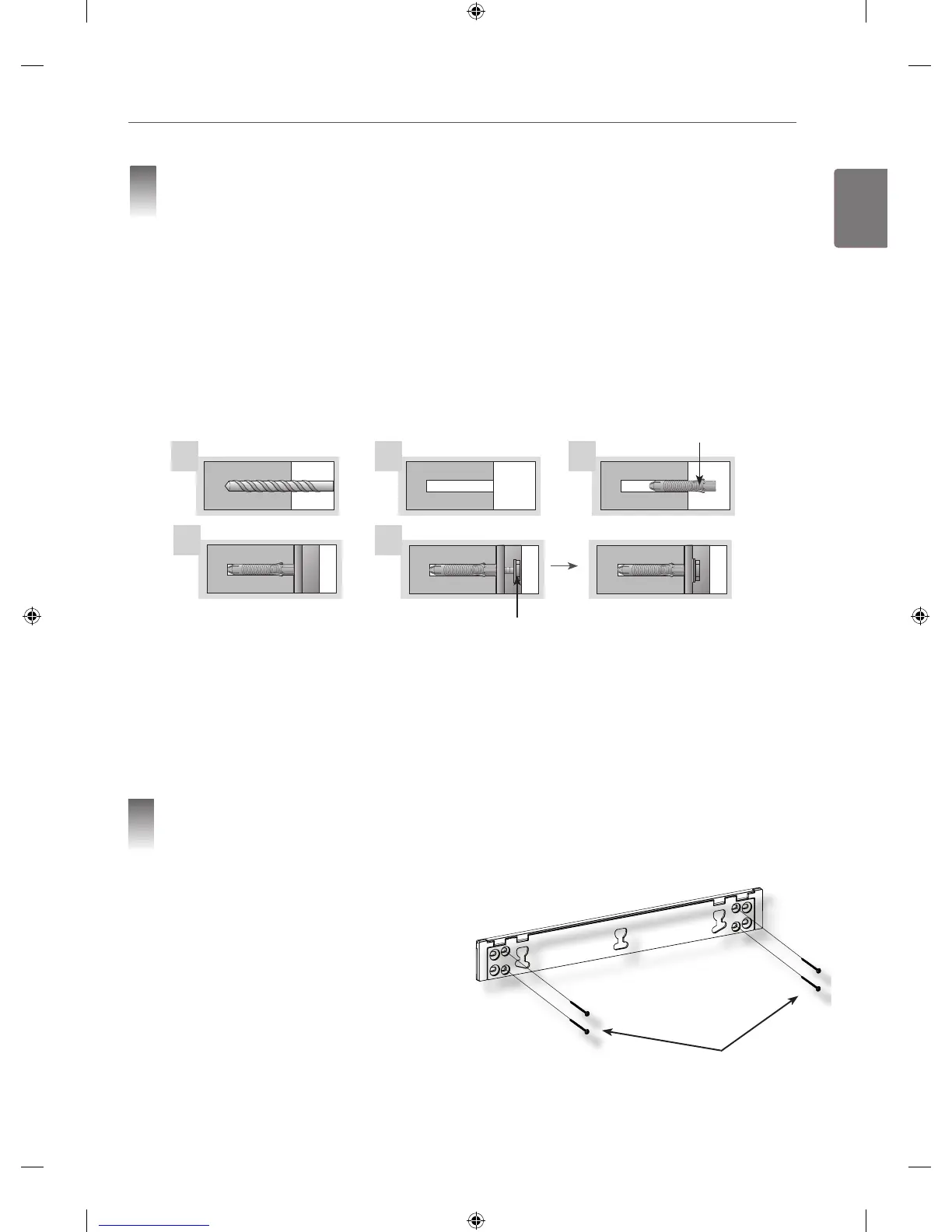

1 Use a Ø 8 mm drill bit to make a hole with a depth of 80-100 mm on the anchor position.
2 Clean the drilled holes.
3 Insert the provided anchor in the hole. (Use a hammer when inserting the anchor.)
4 Place the angle adjusting part to face upward. Place the angle adjusting part to face upward.
5 Align the wall mounting screws with the holes to tighten the screws. Tighten the screw using a recommended
torque of 45 kgf/cm - 60 kgf/cm or more.
• Use the Ø 8 mm drill bit for concrete wall and hammer (Impact) drill.
Wall mounting screw
Anchor
<Please follow the directions below>
5
Installing the Wall Mounting Supporter
<How to tighten the screws>
• Tighten the four wall mounting screws.
• If the screws cannot be fixed in the designated
location, move the bracket to the left or right to fix
the screws.
• Fix the wall mounting supporter using the wall
mounting screws as shown in the figure.
• Tighten the screws until the wall, the wall mounting
bracket and the screws are joined together securely
using a (manual or electric) Phillips screwdriver or
8mm spanner.
Wall mounting screw
1 2
3
4
5
