How to x anchors and
screws
(Except for OLW480B)
Please make sure that:
• Check that the material and thickness of the
wall and nishing material comply with the
installation manual.
• Use the enclosed anchors and screws on
crack-free concrete walls.
• Never install the product on a wood stud,
plasterboard or wall made of paper or
medium-density berboard (MDF). When
it is necessary to install the product on
such wall, anchor screws must be fastened
to retaining walls (concrete) inside the
nishing material, and if there are no
retaining walls, anchor screws must be
fastened after a separate hanger is installed.
• Other unspecied walls must be capable
of supporting pullout loads of over 70kgf
(686N) and shear loads of over 100kgf
(980N) per fastener.
• Use a Ø 8mm drill bit and hammer (impact)
drill for concrete.

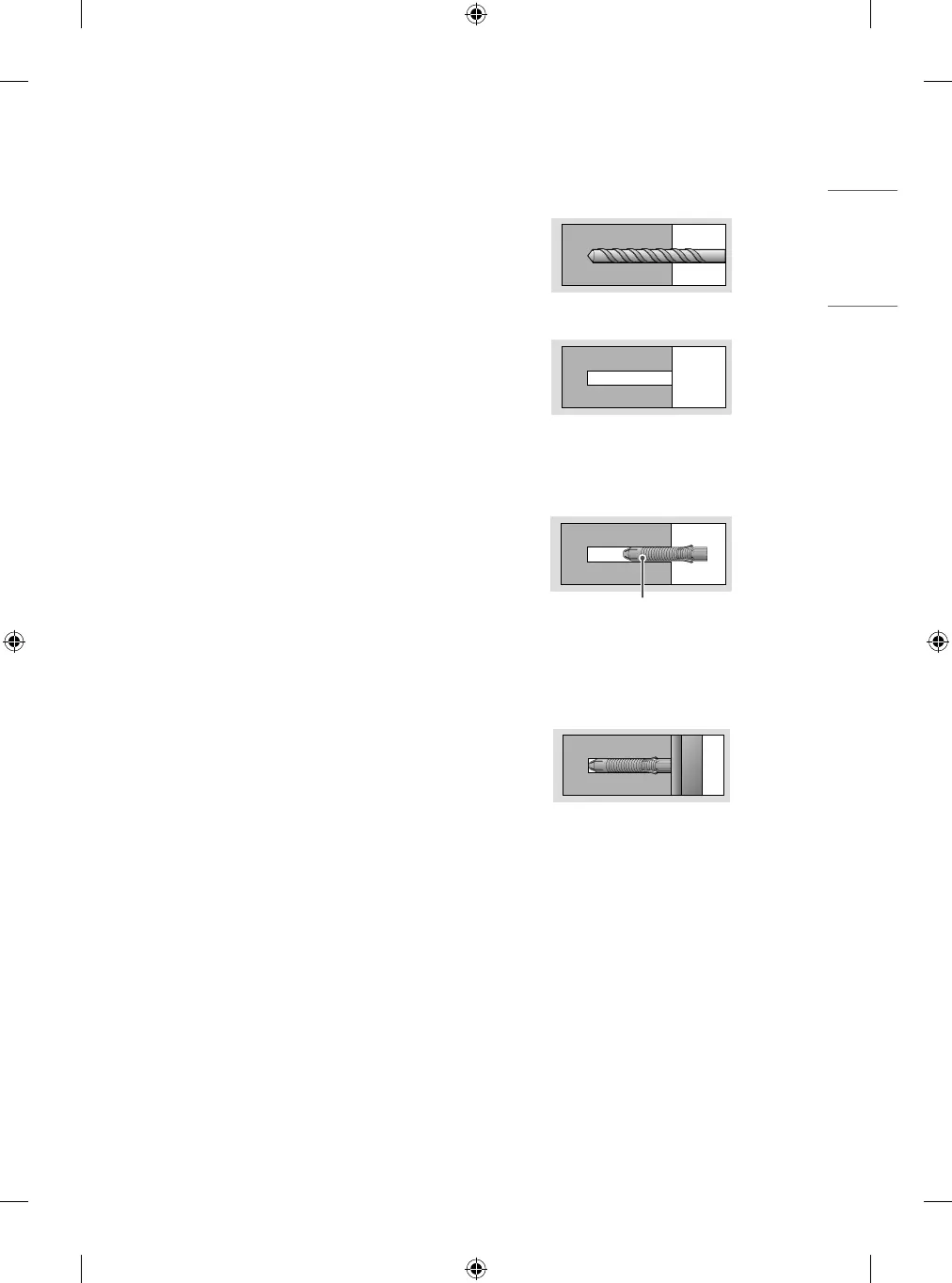

1 Drill holes in anchor locations with a drill
bit of Ø 8mm to a depth of 80mm to
100mm.
2 Clean the drilled holes.
3 Insert the enclosed anchors for xing the
wall mount into the holes. (Use a hammer
when inserting anchors.)
Wall mounting anchor
4 Push the wall mount support closely
toward the wall to match the hole
locations.
5 Tighten screws for xing the wall mount
to the holes. At this time, tighten the
screws to a torque of between 45kgf/cm
to 60kgf/cm.
