Installation Manual 11
ENGLISH

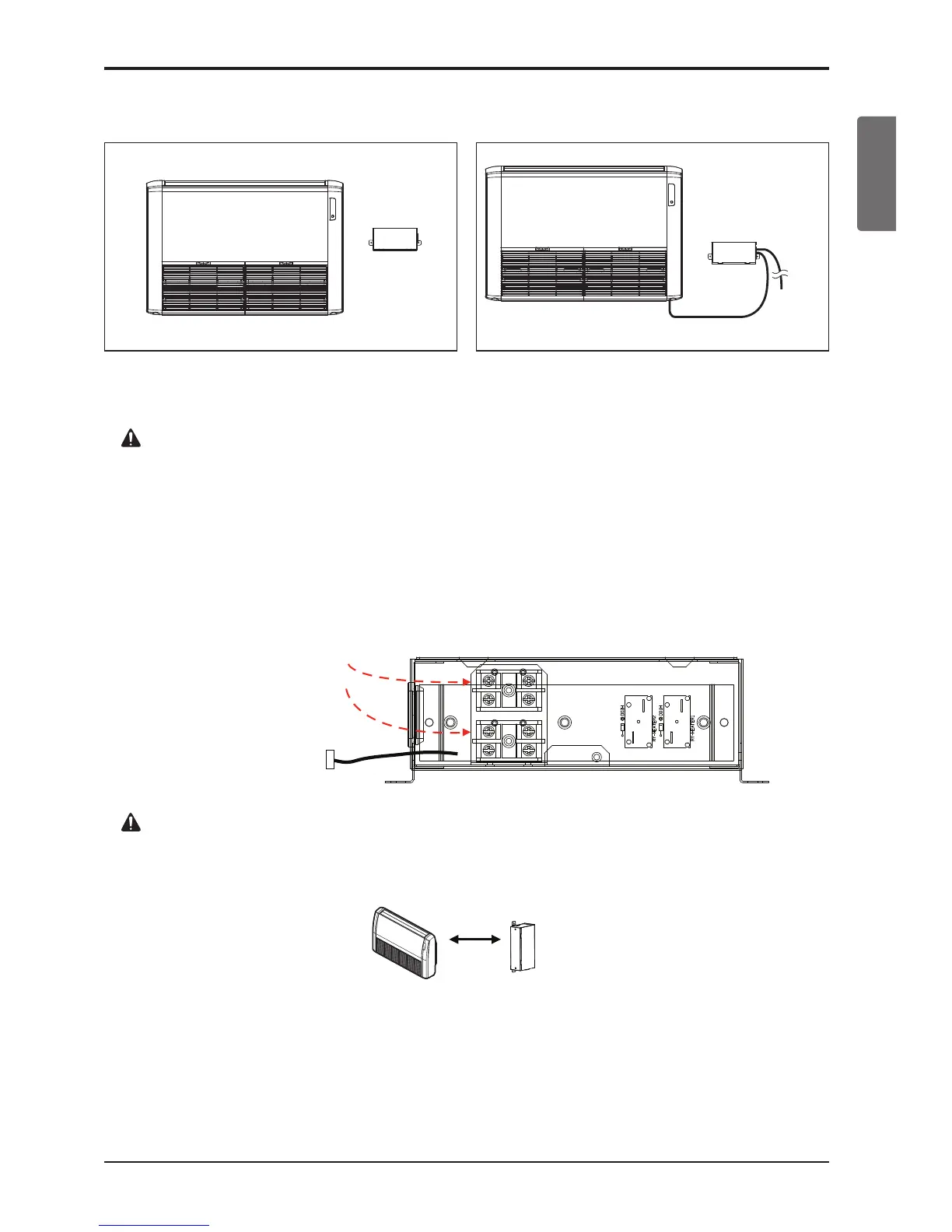

Assembly Diagram
n Ceiling Suspended
D < 3.3ft
Auxiliary heater relay kit should be installed with in 3.3ft from the product.
Otherwise heater may cause malfunction.
Auxiliary Heater communication lines
(under AC24V,over AWG24)
These wires should not make
contact with high voltage lines.
To indoor unit PCB
(CN-PTC)
AB AB
Aux heater
communication
lines
Step1. Mount relay kit on the wall. Step2. Connect wires and assemble cover.
Do not install PRARS0 at,
- Places which exposed to rain or any water.
Other wise it may leads to electric shock, fire, injury or sometimes even fatality.
Note: Please clean up the remaining wires after installation.
To Next Page
