22 AHU Control Kit / EEV Kit
Thermistors Installation
Pipe thermistors Installation
Installation of the pipe thermistor cable
1. Put the thermistor cable in a separate protective tube.
2. Always add a pull-relief to the thermistor cable to avoid atrain on the thermistor cable and
loosening of the thermistor. Strain on the thermistor cable or loosening of the thermistor
may result in bad contact and incorrect temperature measurement.

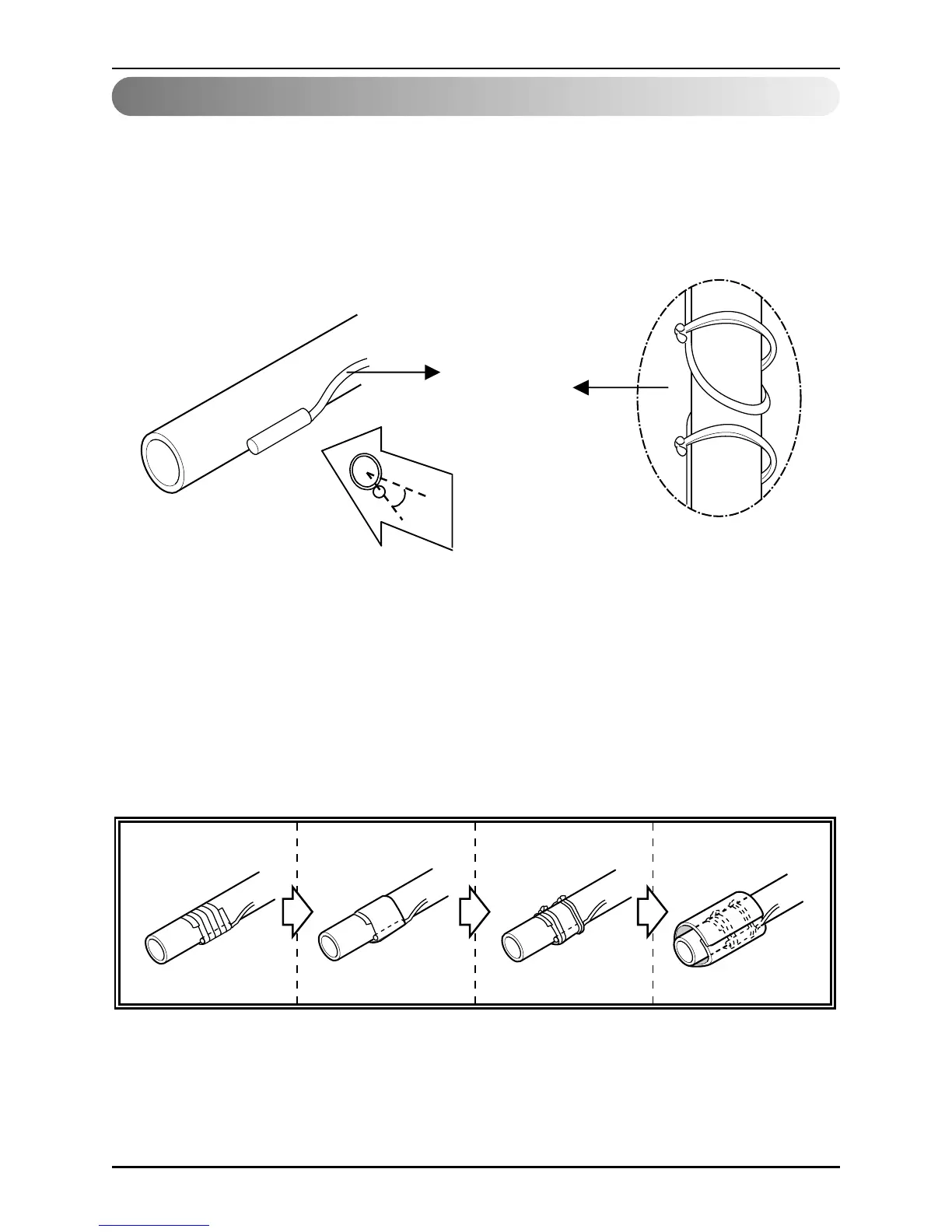

Fixation of the pipe thermistors (Field work)
1. Fix the thermistor with insulating aluminum tape (Field supply) in order to ensure a good
heat transference.
2. Put the supplied piece of rubber around the thermistor(EBG36949304/05) in order to
avoid loosening of the thermistor after some years.
3. Fasten the thermistor with 2 tie wraps.
4. Insulate the thermistor with the supplied insulation sheet.
