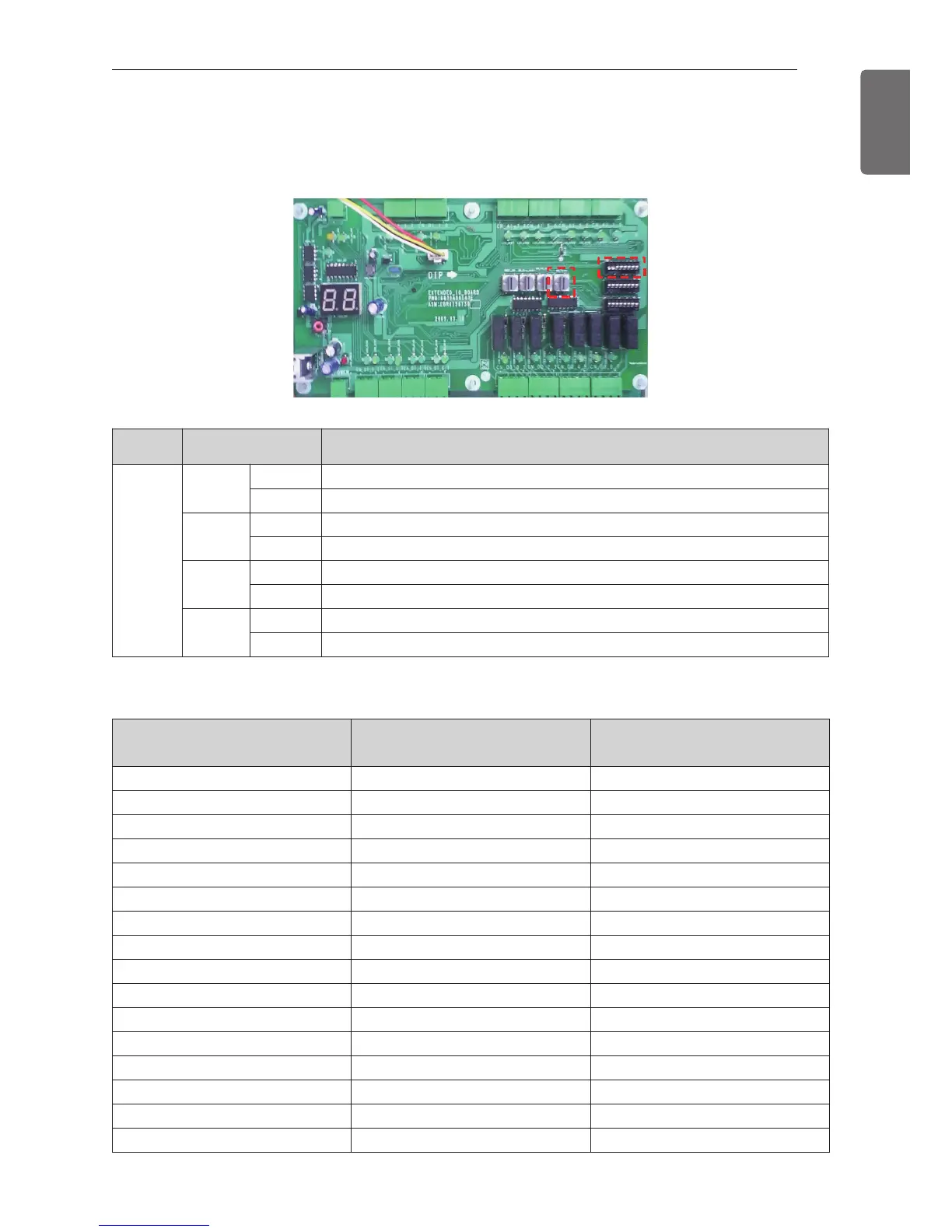

④ Room Temperature control from DDC or Rotary S/W
h
According to Dip S/W(SW03) Setting, you can set up the Function of Room Temperature control.
Dip S/W(② SW03)
Function
Setting
Dip S/W
No 1
ON RS485 Communication with MULTI V
OFF Not available
No 3
ON Possible to control Room Temperature Function (Default)
OFF Only Monitoring (DO Signal only is enable)
No 4
ON DDC Control (Wiring No. AI 10-4)
OFF Rotary S/W(SW_TYPE) Control
No 6
ON Room Temperature Default setting (Cooling 18°C, Heating 30°C)
OFF
Room Air(or return air) temperature control using Al signal and Rotary S/W
• Dip S/W(SW03) NO 4 : OFF
Rotary
S/W(①) Number
Room Temp.(°C) Cooling Room Temp.(°C) Heating
0 Not available Not available
1 18 16
2 18 17
3 18 18
4 19 19
5 20 20
6 21 21
7 22 22
8 23 23
9 24 24
A 25 25
B 26 26
C 27 27
D 28 28
E 29 29
F 30 30
