15

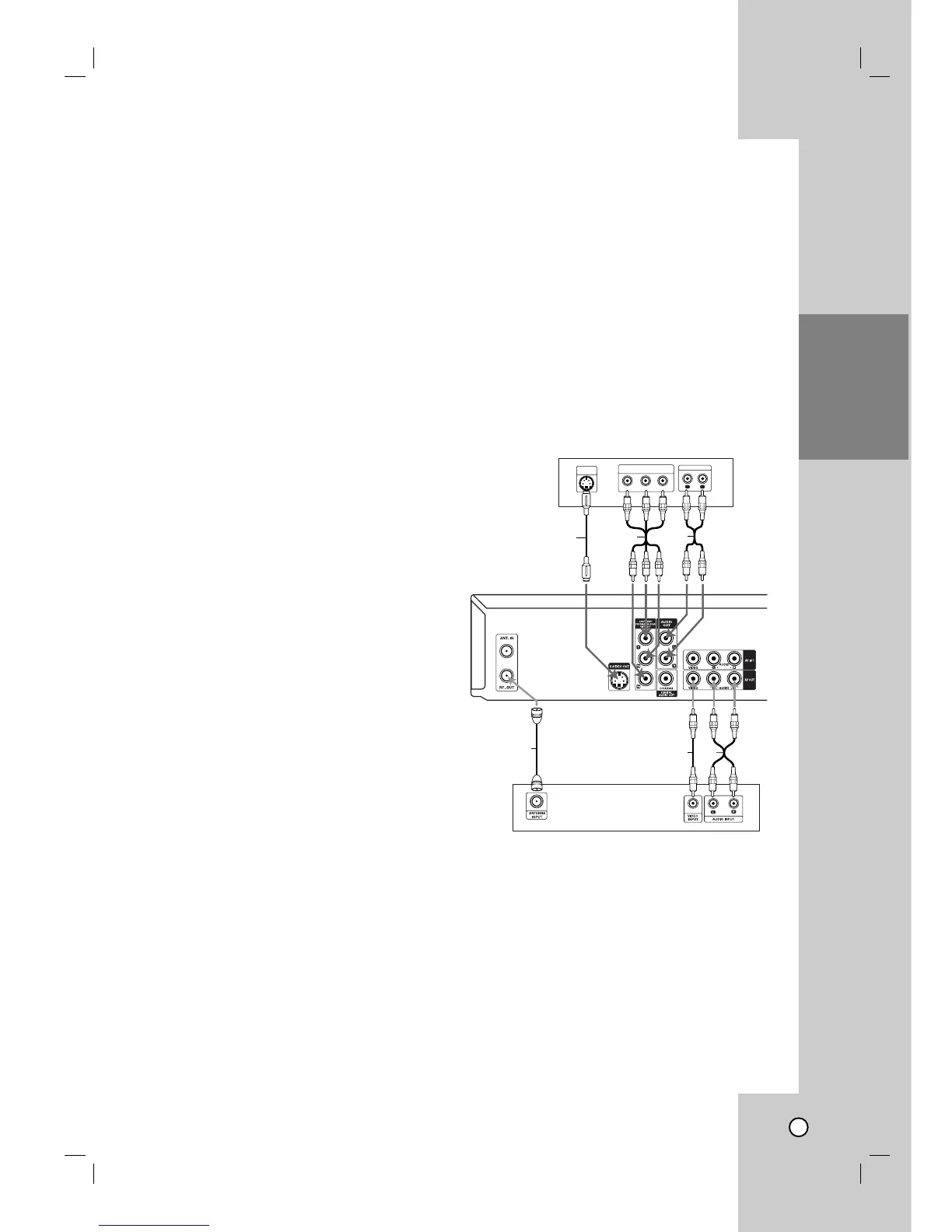

Connections to your TV
Connections to your TV
Make one of the following connections, depending on
the capabilities of your TV.
RF coaxial connection
Connect the RF OUT jack on the Recorder to the
antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
How to set the Recorder’s RF output channel
1. When the Recorder is turned off, press and hold
CH (V/v) on the front panel for more than five
seconds. [RF03] or [RF04] appears in the display
window.
2. Press CH (V/v) to change the RF output channel
(RF03 or RF04).
3. Tune the TV to this channel.
Video connection
Connect the VIDEO OUT jack on the Recorder to the
video in jack on the TV using the video cable
supplied (V).
Note:
If you use this connection, set the TV’s source selector to
VIDEO.
S-Video connection
Connect the S-VIDEO OUT jack on the Recorder to
the S-Video in jack on the TV using an optional
S-Video cable (S).
Component Video / Progressive Scan
connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the Recorder’s
progressive scan output for higher video resolution.
Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the Recorder to the correspon-
ding in jacks on the TV using an optional Y Pb Pr
cable (C).
Notes:
• Set the resolution to 480p using RESOLUTION or RES.
button for progressive signal.
• Progressive Scan does not work with the RF,
Audio/Video or S-Video connections.
• If your TV does not accept the Progressive Scan format,
the picture will appear scrambled.
• If the resolution is set to 720p or 1080i, the VIDEO OUT,
S-VIDEO OUT and COMPONENT VIDEO OUT connec-
tions are not available.
Audio connection
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left/right in jacks on the TV
using the supplied audio cables (A1 or A2).
HOOKUP AND
SETTINGS
