Connecting to an External Device
Connecting with an HDMI Cable
Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich
sound.

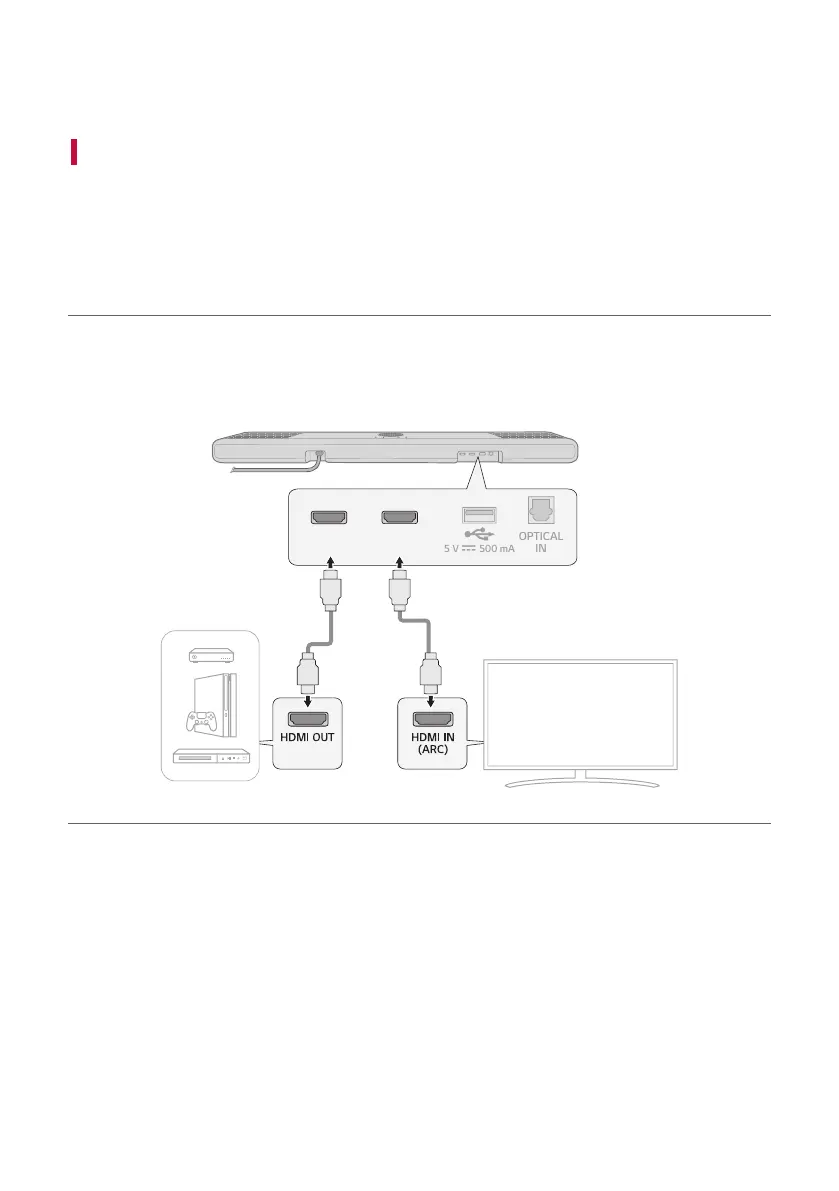

Connecting an external device via HDMI A
a Connect an external device such as a Set-top box, DVD or Blu-ray player. Following the picture below, connect
the HDMI OUT terminal of the device to the HDMI™ IN terminal on the back of the product.
b Using the HDMI cable, connect the HDMI™ d TV (eARC / ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV.
OPTICAL
IN
5 V 0 500 mA
HDMI IN
TM
HDMI d TV
(eARC / ARC)
TM
