LG S90QY Service Manual

79 pages

To Next Page

To Previous Page

1-11

Only for training and service purposes.

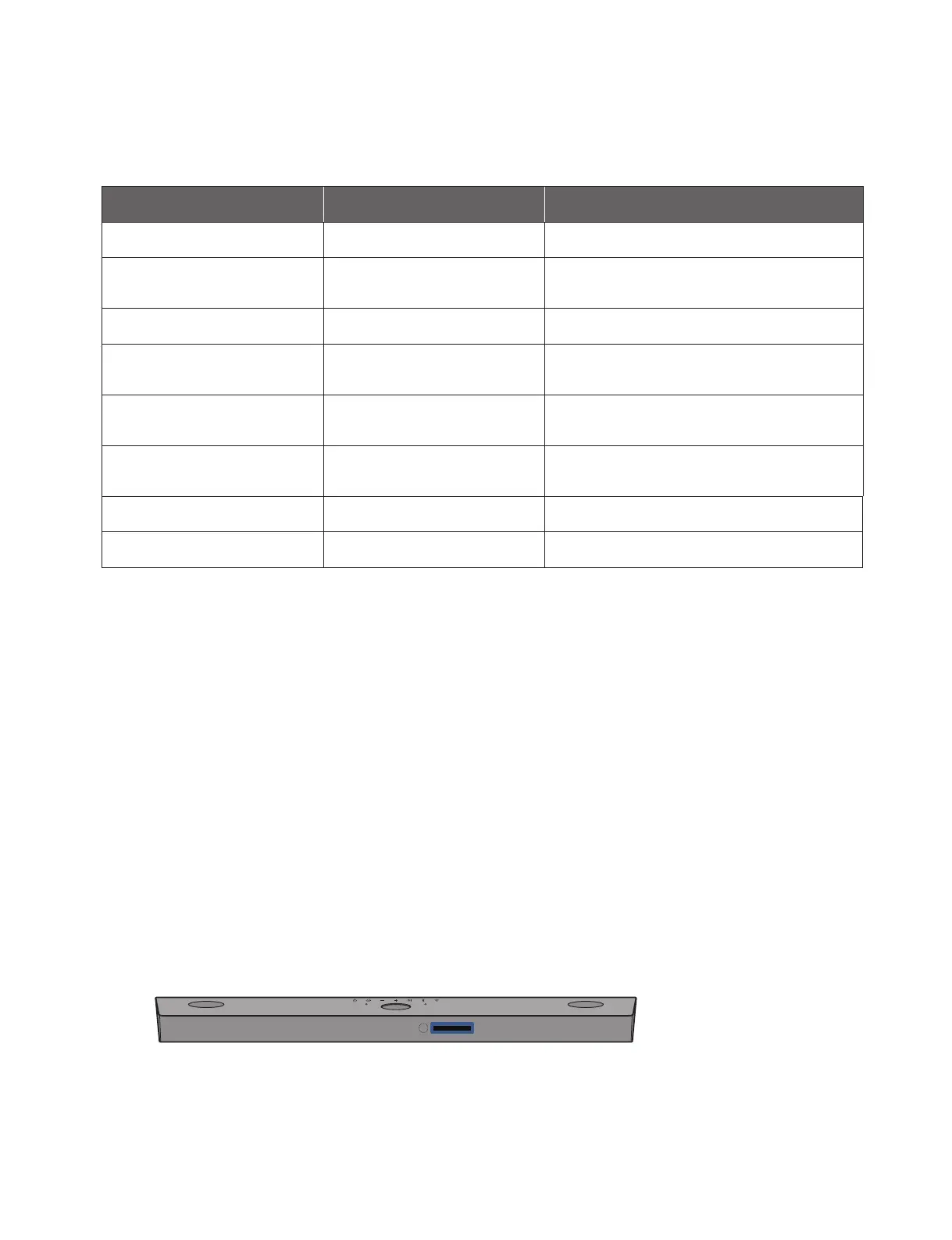

2. USB update

Step 1. Prepare S90Q update binaries.

USB

Update module S90Q File name Sample

B/E MAIN_S90Q_*.bin MAIN_S90Q_WSB_2002171.bin

Micom MICOM_S90Q_*.HEX

MICOM_S90Q_WSB_2002121_EBA2_rev2503.

HEX

Touch TOUCH_S90Q_*.DLD TOUCH_S90Q_C4A_2001071_0xF535.dld

Wireless Subwoofer/Rear L/

RearKit Tx

WOOFER_REAR_TX_1T2_

S90Q_*.BIN

WOOFER_REAR_TX_1T2_S90Q_BAR_190007_

PRO1_CHECKSUM_C7CA.bin

Wireless Subwoofer Rx WOOFERRX_1T2_S90Q_*.BIN

WOOFERRX_1T2_S90Q_BAR_191008_PRO1_

CHECKSUM_90BE.bin

Wireless RearKit Rx REARKITRX_1T2_S90Q_*.BIN

REARKITRX_1T2_S90Q_BAR_185001_PRO1_

CHECKSUM_DFDF.bin

MEQ MEQ_S90Q_*.BIN MEQ_S90Q_WSB_20012874_113652.BIN

PEQ PEQ_S90Q_*.BIN PEQ_S90Q_171016.bin

Step 2. Copy all updated S90Q binaries to USB memory.

Step 3. Power on S90Q main unit.

Step 4. If there is an updated wireless subwoofer rx binary in update list,

you need to pair between main unit and subwoofer unit before start update.

Step 5. If there is an updated wireless rear rx binary in update list,

you need to pair between main unit and rear speaker unit before start update.

Step 6. Press Function key to change function to USB.

Verify whether USB function is or not by VFD.
