1-6
Copyright © 2022 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

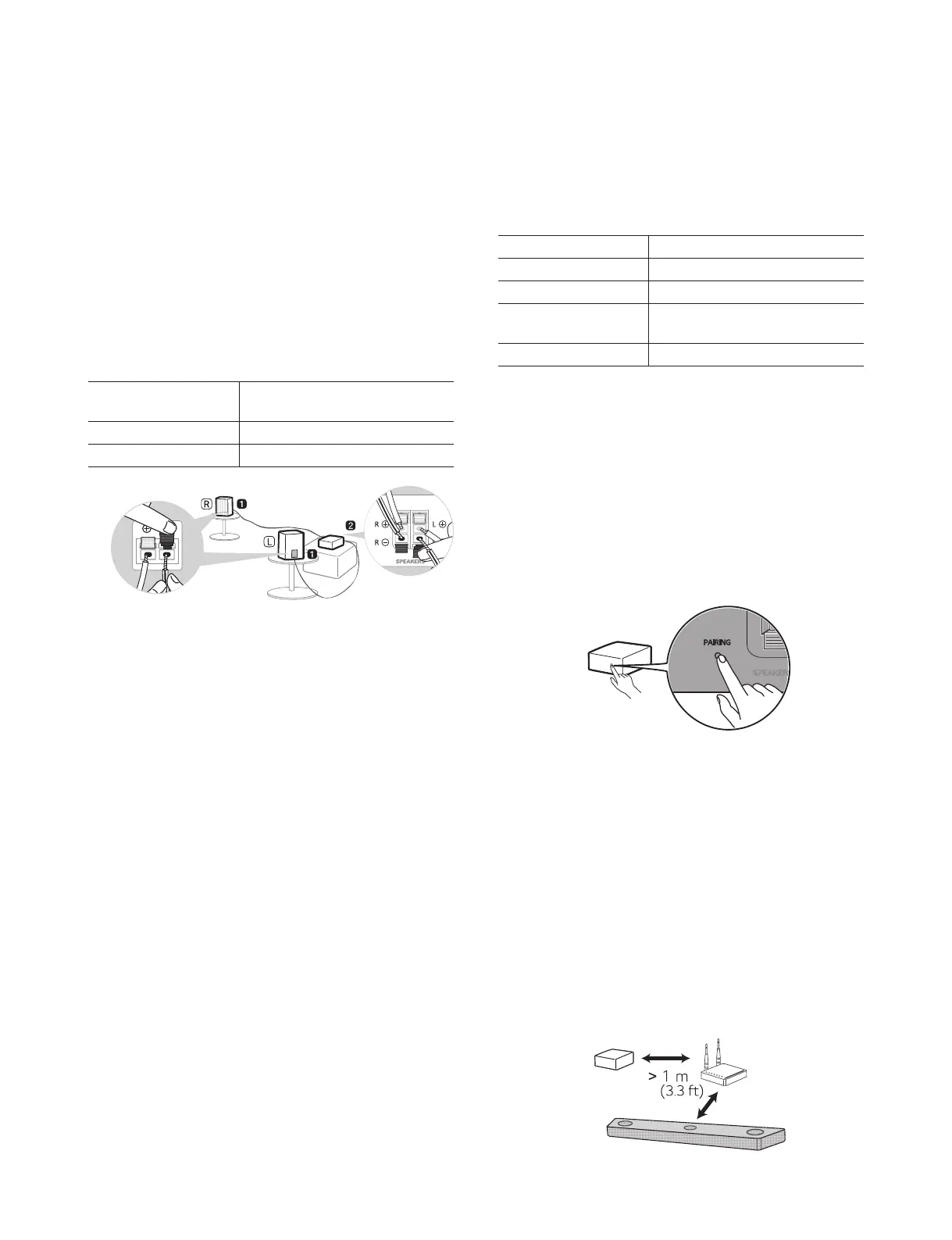

CONNECTING THE REAR SPEAKERS TO THE WIRELESS RECEIVER
(SPQ8-S, SOLD SEPARATELY)
Automatic connection
After completing installation, the wireless receiver
will automatically be connected to the sound bar.
Connect the sound bar to the wireless receiver in the
following order.
1) Connect the speaker cables to the corresponding
terminals on the rear speakers (left, right).
Connect the black striped cable to the negative
terminal and the other cable to the positive
terminal.
2) Connect the speaker cables on the rear speakers
(left, right) to the wireless receiver.
Receiver Terminal
Color
Speaker Position
Blue
L Left rear
Gray R Right rear
3) Plug the power cable into the wireless receiver.
4) Plug the power cable connected to the wireless
receiver into an outlet.
5) Press the Power button on the sound bar to turn
it on.
6) When the connection is automatically established,
you will see the LED on the front of the wireless
receiver light up in green.
Note
• Please only use the speakers provided with the
product. Using other speakers may cause malfunction.
• Connect the speaker cables to the corresponding
terminals. Connect to the positive cable to the
positive terminal and the negative cable to the
negative terminal. An incorrectly connected cable
will distort the sound or produce no bass.
Checking connection status with the LED
color
You can check the connection status with the LED on
the front of the wireless receiver.
LED Color Status
Blinking green
Connecting in progress
Green Connected successfully
Red
Bad connection,
or the subwoofer is in standby
Off Power cable not connected
Manual connection
If you see a red LED on the front of the wireless re-
ceiver, it means that the sound bar is not connected
to the receiver. If this is the case, connect them in the
following order.
1) Press the Power button on the sound bar to turn
it off.
2) Press the PAIRING button on the back of the
wireless receiver. Check if the LED on the front of
the wireless receiver is blinking green.
3) Press the Power button on the sound bar to turn
it on.
4) When the connection is established, you will see
the LED light on the front of the wireless receiver
light up in green.
Note
• Keep the rear speakers at least 30 cm (11.8 inch)
away from the TV or monitor.
• To prevent wireless interference, maintain a
distance of at least 1 m (3.3 ft) between the sound
bar or the wireless receiver and any peripheral
devices that generate strong electromagnetic waves
(ex. wireless routers, microwave ovens, etc.).
To Next Page
