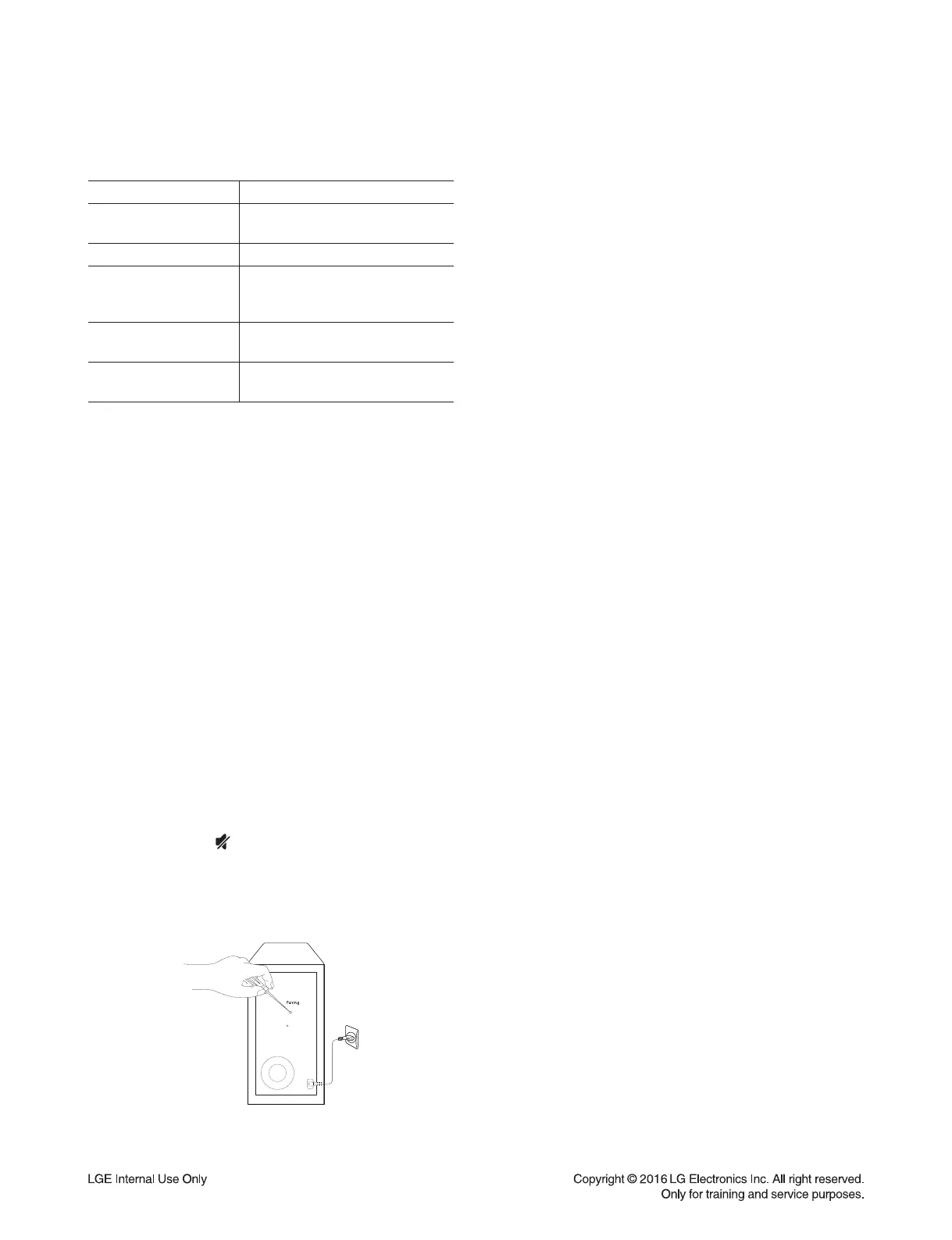

WIRELESS SUBWOOFER CONNECTION
LED indicator of wireless subwoofer
LED Color Status
Green
(Blink)
The connection is trying.
Green The connection is completed.
Red
The wireless subwoofer
is in standby mode
or the connection is failed.
Red/Green
(Blink alternately)
The wireless subwoofer
connection is initialized.
Off
(No display)
The power cord of wireless
subwoofer is disconnected.
Setting up the wireless subwoofer
for the rst time
1. Connect the power cord to the subwoofer and plug
the power cord into a power outlet.
2. Turn on the main unit : The sound bar and wireless
subwoofer will be automatically connected.
-
Green LED on the rear of wireless subwoofer turns on.
Manually pairing wireless subwoofer
When your connection is not completed, you can
check red LED or blinking green LED on the wireless
subwoofer and the wireless subwoofer does not make
sound. To solve the problem, follow the steps below.
1. Adjust volume level of the main unit to minimum by
pressing VOL – button repeatedly.
- ”MIN” appears on the display window.
2. Press and hold (Mute) on the remote control for
about 3 seconds.
-
“SUB-WF RESET” appears on the display window.
3. Press and hold Pairing on the back of the wireless
subwoofer for more than 5 seconds.
-
The LED of the wireless subwoofer lights up alternately
in red and green.
4. Disconnect and reconnect power cord of the main
unit and the wireless subwoofer.
5. Turn on the main unit. : The sound bar and wireless
subwoofer will be automatically connected.
- Green LED on the rear of wireless subwoofer
turns on.
Note
:
It takes a few seconds (and may take longer) for the
main unit and the subwoofer to communicate with
each other and make sounds.
The closer the main unit and the subwoofer, the
better sound quality. It is recommended to install the
main unit and the subwoofer as close as possible
and avoid the cases below.
- There is a obstacle between the main unit and the
subwoofer.
- There is a device using same frequency with this
wireless connection such as a medical equipment,
a microwave or a wireless LAN device.
