LG SJ2 - Printed Circuit Board Diagram; Smps & Amp P. C. Board Diagram

4-13 4-14
PRINTED CIRCUIT BOARD DIAGRAM

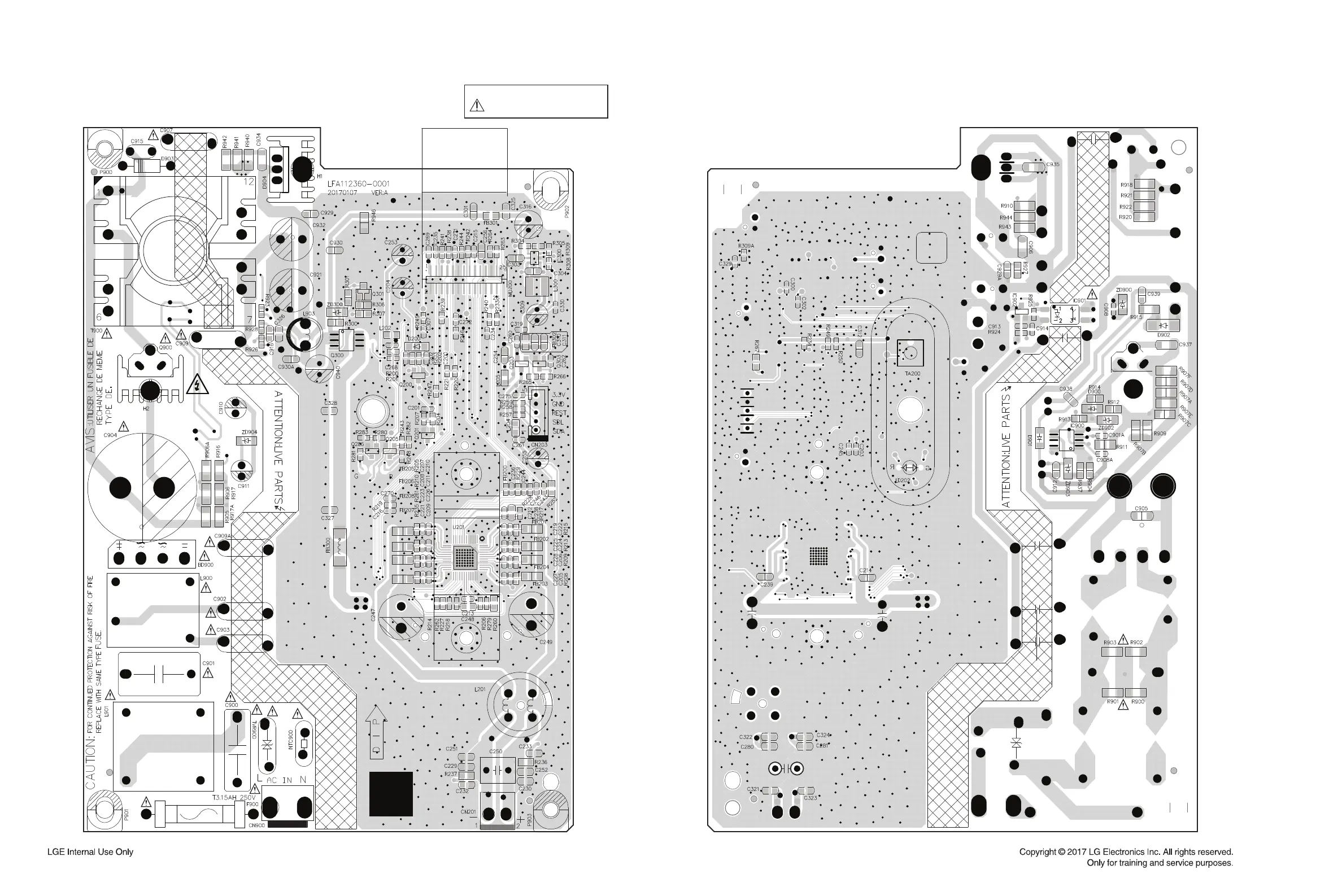

1. SMPS & AMP P. C. BOARD DIAGRAM
(TOP VIEW) (BOTTOM VIEW)
NOTE) Warning
Parts that are critical with respect to risk
of fire or electrical shock.
