LG SJC8 Service Manual

2-5
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
2
2
3
MAIN
2
1
2
3
Jack PCB
Figure 1-4 (2)
Figure 1-5

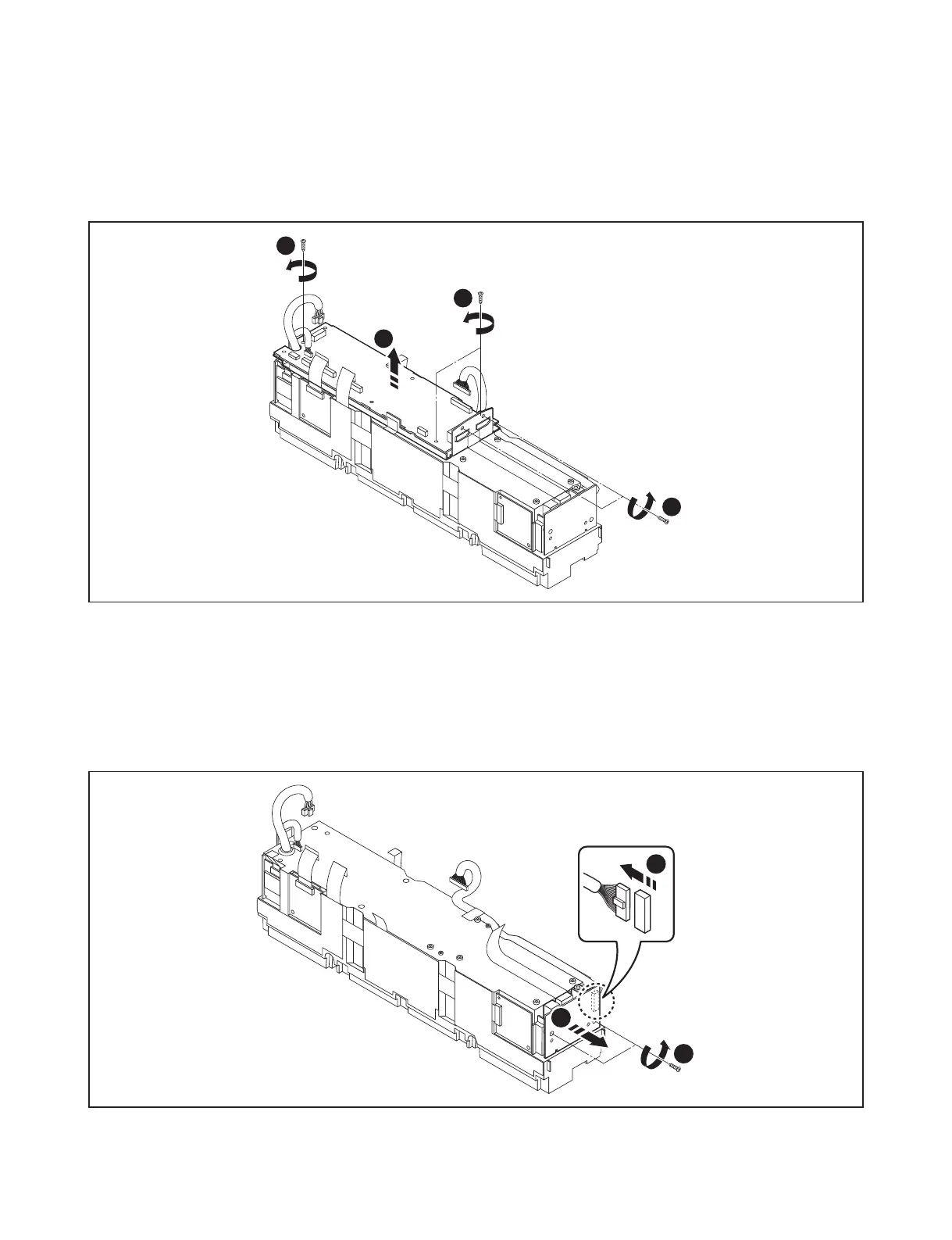

HOW TO DISASSEMBLE THE PRIMARY UNIT
2) Remove the 5 screws.
3) Remove the Main PCB Assembly.
1-5. Jack PCB Assembly
1) Remove the 2 screws.
2) Remove the Jack PCB Assembly.
3) Disconnect the harness cable from Jack PCB.
